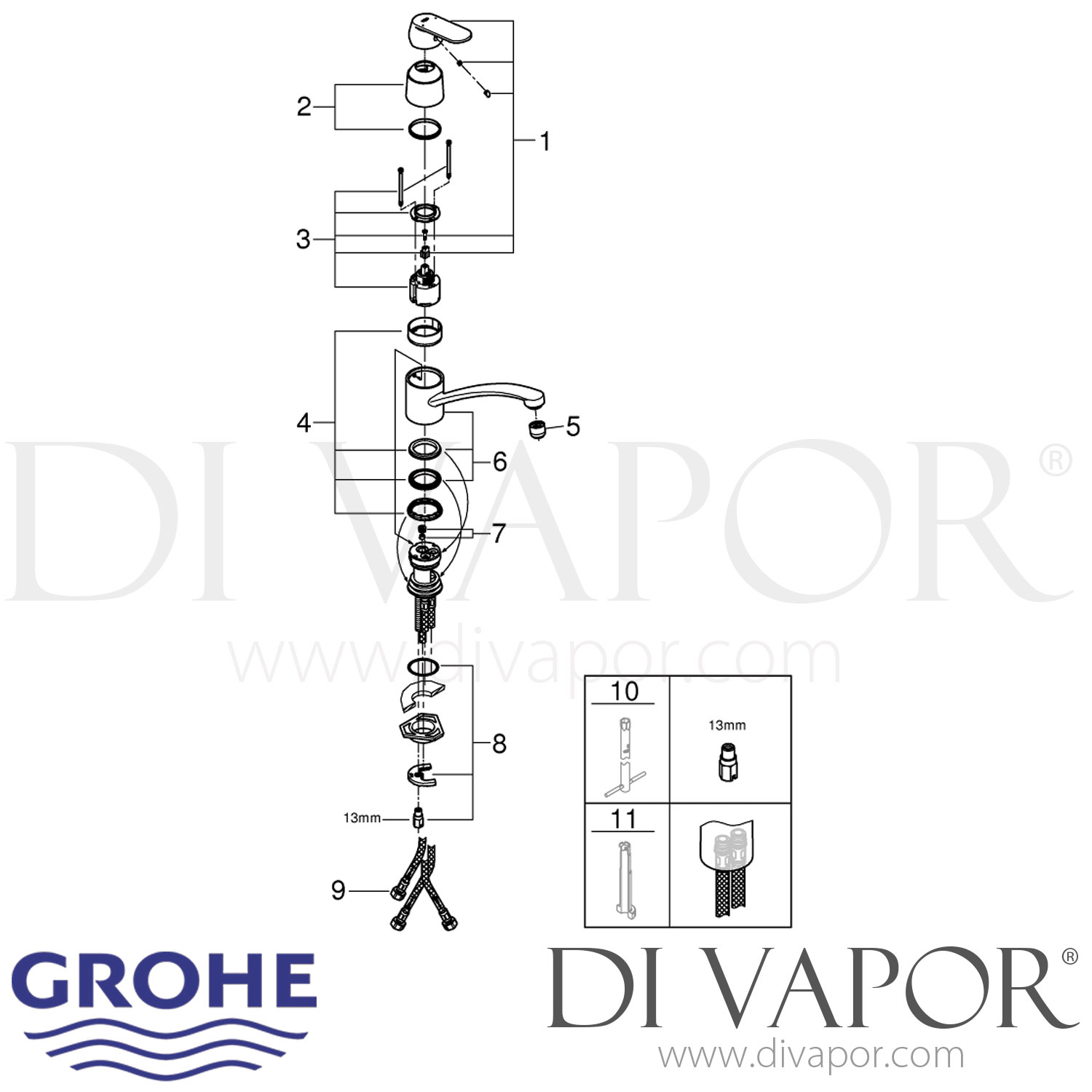

Grohe 31179000 Eurosmart Cosmopolitan Single-Lever Sink Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

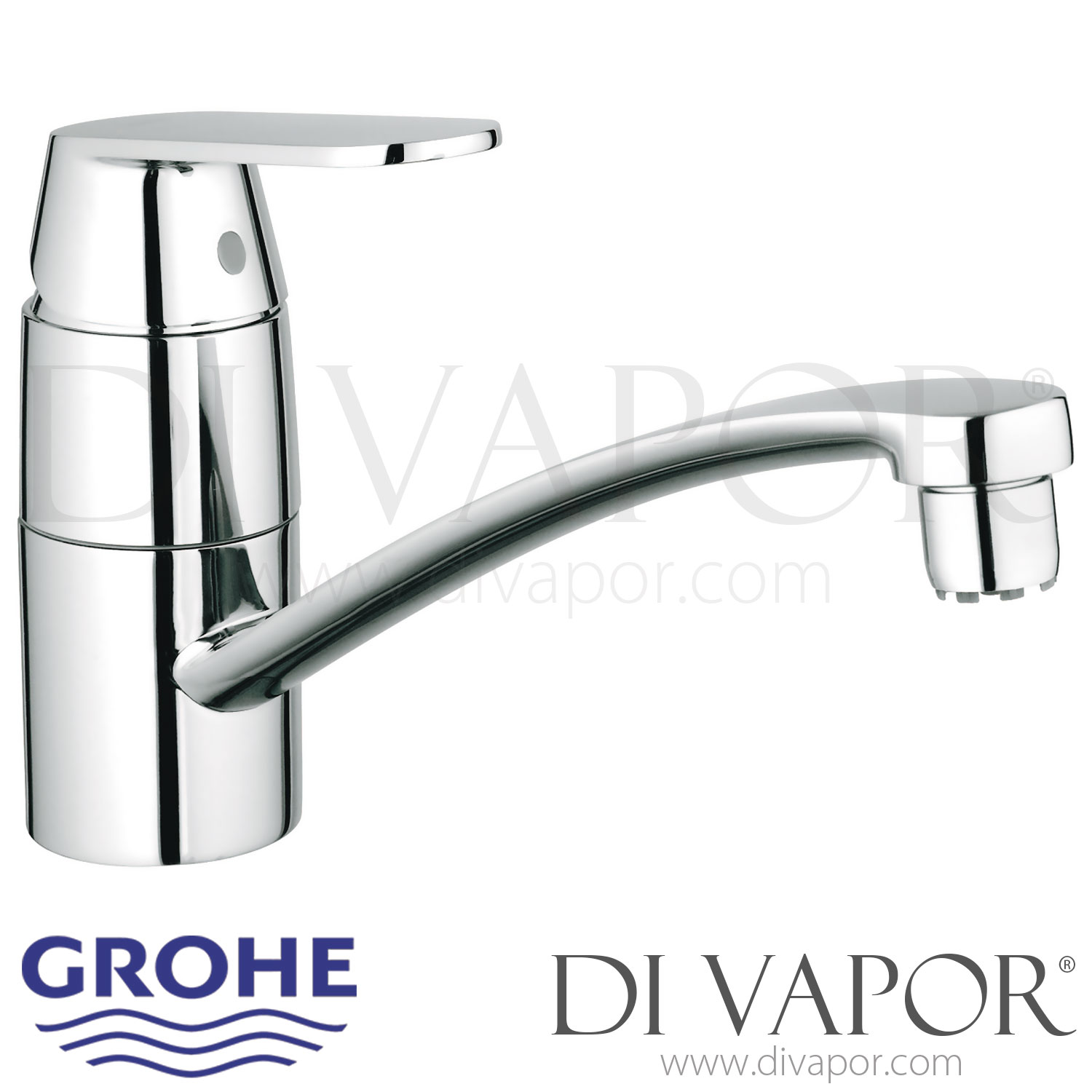

Spare parts for the Grohe 31179000 Eurosmart Cosmopolitan single lever sink mixer. This chrome kitchen tap is the low-pressure version designed for use with an open or unpressurised storage water heater and uses a three-hose arrangement.
The 31179000 uses a Grohe SilkMove 46 mm ceramic cartridge to control water flow and temperature. Its low swivel tubular spout provides a 140 degree swivel area and the mixer has an adjustable flow-rate limiter.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurosmart Cosmopolitan |
| Category | Kitchen tap |
| Product type | Single lever low-pressure sink mixer |
| Installation | Single-hole |
| Water system | Open or unpressurised storage water heater |
| Cartridge | 46 mm ceramic cartridge |
| Cartridge code | 46409000 |
| Finish | Chrome |
| Spout type | Low swivel tubular spout |
| Swivel area | 140 degrees |
| Maximum flow rate | 7.5 litres per minute at 3 bar |
| Mounting hole diameter | 34 mm |
| Maximum mounting surface thickness | 60 mm |
| Spout projection | 226 mm |
| Outlet height above mounting surface | 107 mm |
| Flexible hose connections | G 3/8 |
When an unpressurised storage heater is heating, expansion water may drip from the mixer spout. This is part of the operating principle of an open water-heater installation and should not automatically be treated as a mixer fault. Flow-restricting fittings should not be added downstream where they could interfere with this arrangement.
Before you order check

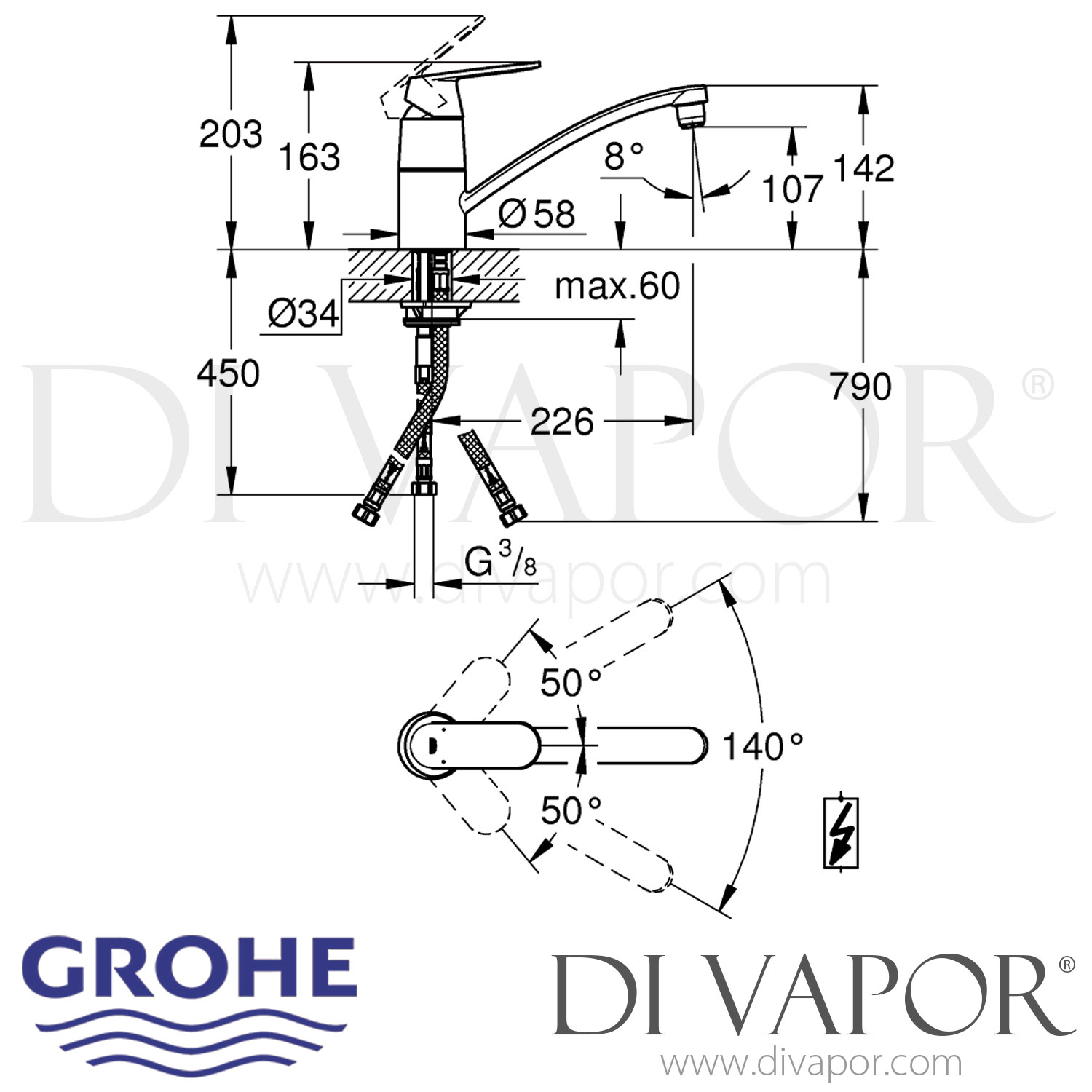

Confirm that the tap is Grohe model 31179000 and that it is the low-pressure Eurosmart Cosmopolitan version for an open water heater. Do not select parts solely from the 1/2 inch wording in the model name, as the technical drawing shows G 3/8 flexible hose connections.
GROHE 46409000 46mm Low-Pressure SilkMove Ceramic Cartridge for Single-Lever MixersUsed in - - Grohe 1/2" Euroeco Special 33123 Basin MixerGROHE 46409000 is a 46 mm low-pressure ceramic cartridge used as the main operating cartridge in selected GROHE single-lever basin and sink m...
GROHE 46249000 Shank Mounting Kit for Basin Bidet Bath and Kitchen MixersGROHE 46249000 is a shank mounting kit used to secure selected deck-mounted GROHE taps and mixers to the basin, bidet, bath or worktop mounting surface. GROHE spare-parts documentation also describes 4624900...
