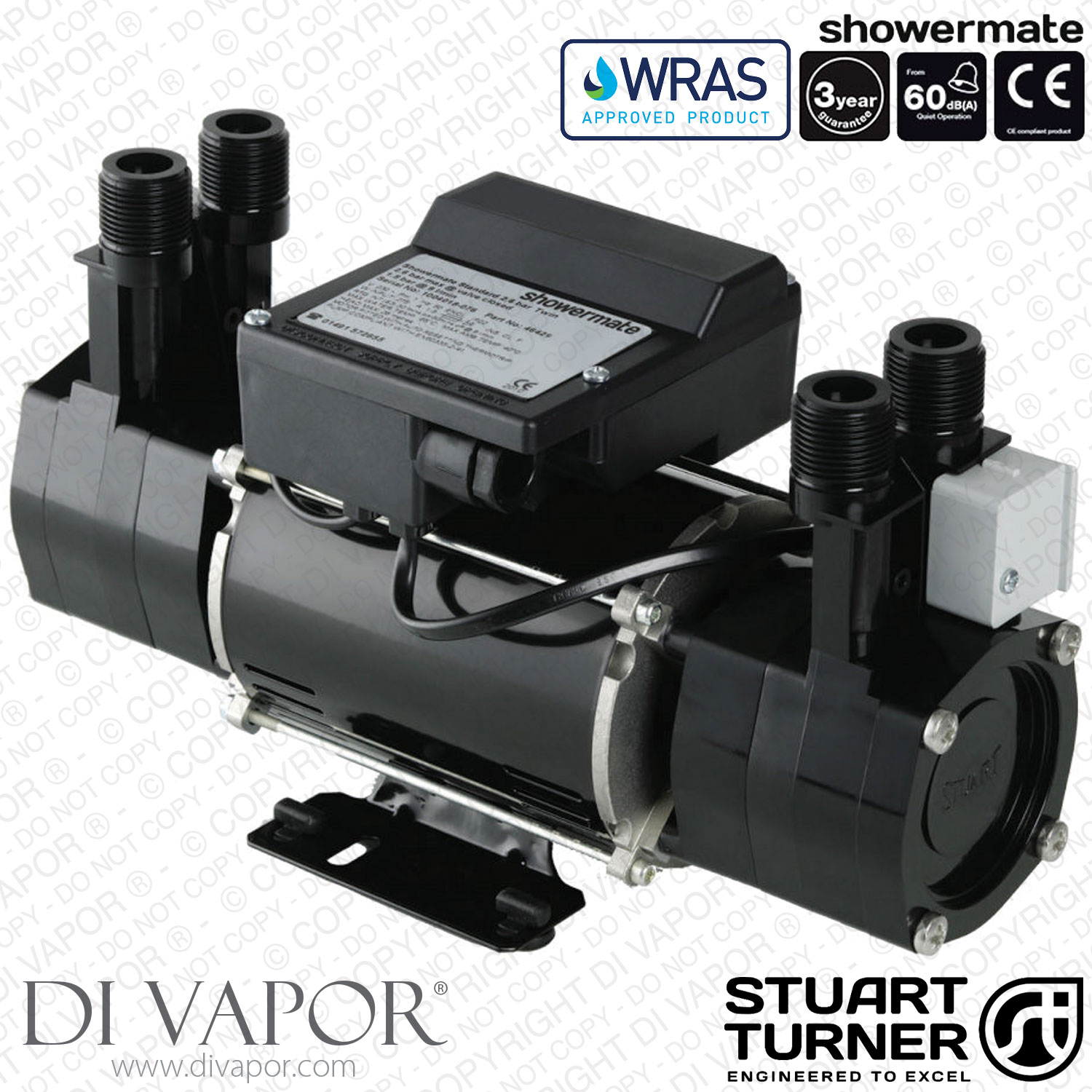

Stuart Turner 46431 Showermate Standard 2.6 Bar Twin Water Pump for Showers and Bathrooms
Send a photo of your item and we'll help confirm it.
Summary
Showermate Standard 2.6 bar Twin pumps aredesigned to boost the incoming hot and cold water supply to ashower, bath, showermixer, or mixer tap. Suitable for positive headapplications only.
Suitable for domestic use only, ShowermateStandard pumps are suitable for installation intoopen vented hot and cold water systems.
Showermate Standard pumps require a flow ofjust 0.8 l/min through the outlet to start.
Application
- Boost hot or cold water supplies equally
- Suitable for single or multiple (up to 4) outlets within abathroom subject to correct specification and pump sizing
Technical Specification
| General | |
| Product code | 46431 |
| Guarantee | 3 years |
| WRAS approval | 1207070 |
| Features | |
| Pump type | Peripheral |
| Mechanical seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Flexible hoses | 4 |
| Dry run protection | |
| Materials | |
| Pump body | Plastic |
| Impeller | Plastic |
| Performance | |
| Maximum head (closed valve) | 2.6 bar |
| Performance @ 9 l/min | 1.9 bar |
| Performance @ 18 l/min | 1.3 bar |
| Maximum flow | 36 l/min |
| Maximum static inlet pressure | 13 metres |
| Maximum working pressure* | 380 kPa (3.8 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.8 l/min |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections | G ¾ female x 15 mm push-in 200 mm long Isolating valves on inlet hoses |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Continuous (S1) @ 9 l/min and above*** |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 2.2 Amps |
| Power consumption | 505 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IP22 |

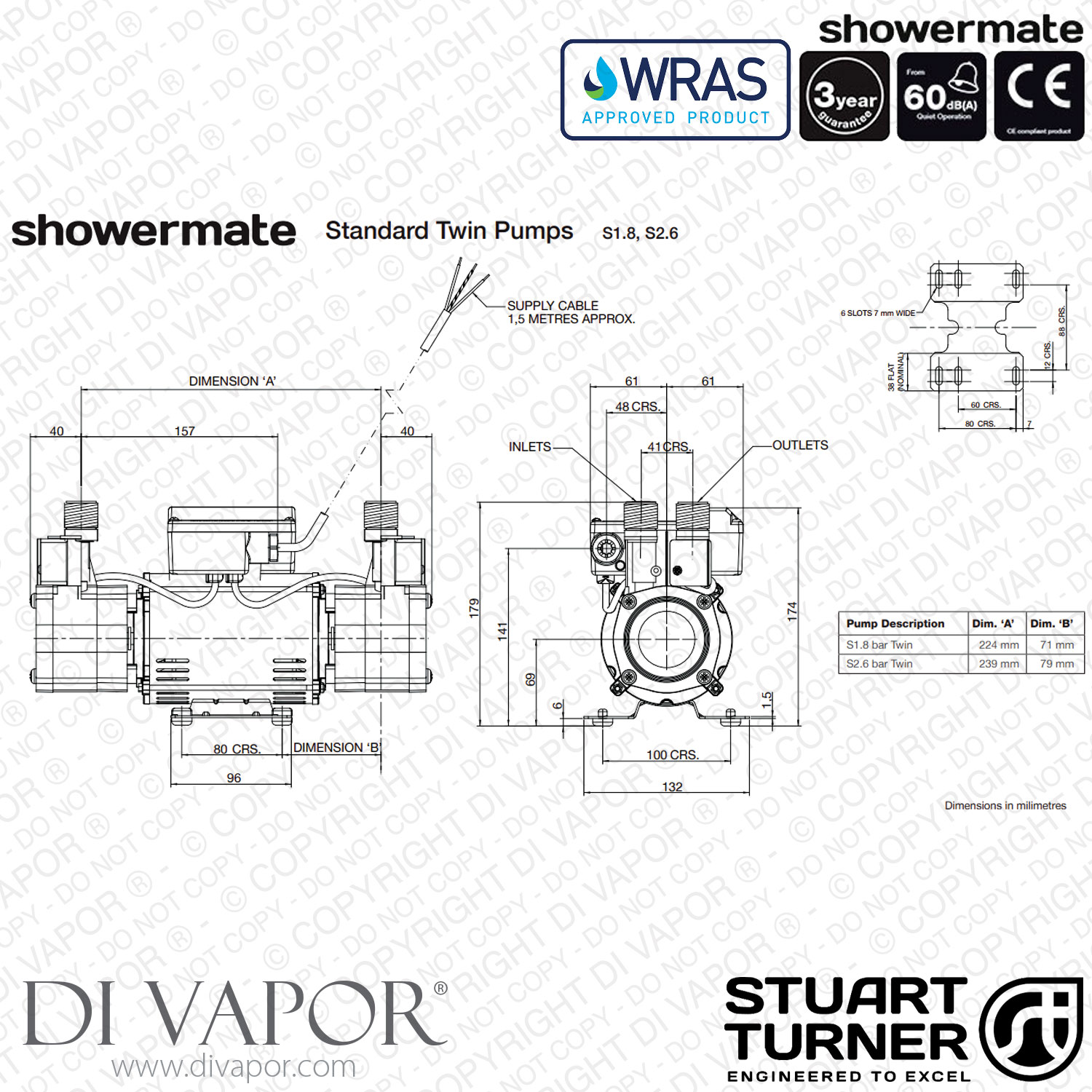

| Length | 319 mm |
| Width | 132 mm |
| Height (excluding hoses) | 179 mm |
| Weight (including fittings) | 5.5 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
*** Both heads pumping 4.5 l/min and above.
