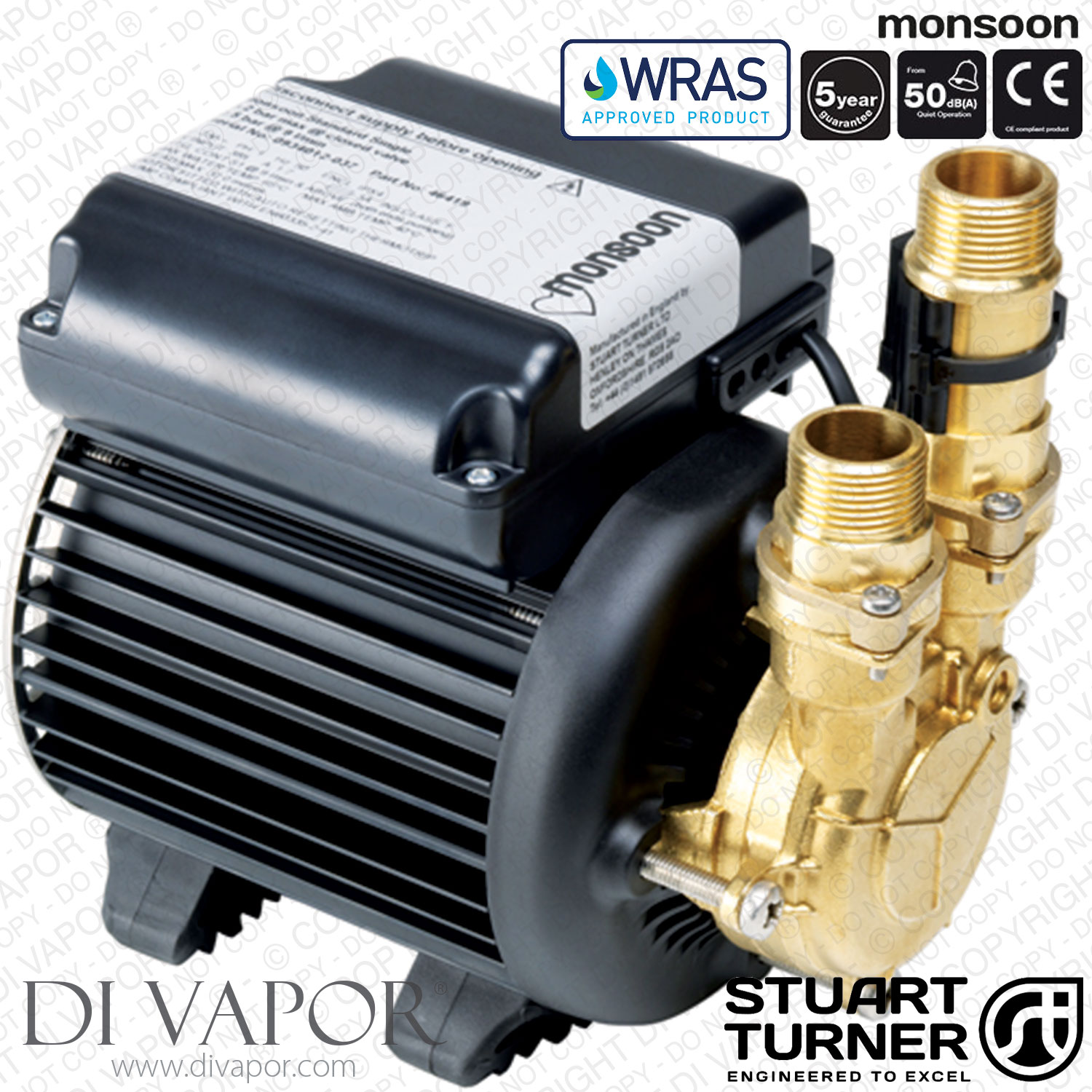

Stuart Turner 46420 Monsoon Standard 4.5 Bar Single Water Pump for Showers, Bathrooms, Houses and Apartments
Send a photo of your item and we'll help confirm it.
Summary
Monsoon Standard 4.5 bar Single pumps are idealfor boosting a water supply in vented systems. Suitable forpositive head applications only.
Suitable for domestic use, Monsoon Standardpumps will function under positive head conditions and are suitablefor installation into open vented hot and cold water systems.
Monsoon Standard pumps require a flow of just0.6 l/min through the outlet to start.
Application
- Boost the water pressure in either the hot or cold water supplyin a positive head application.
- Boost the blended water outlet between the shower valve and theshower rose.
Technical Specification
| General | |
| Product code | 46420 |
| Guarantee | 5 years |
| WRAS approval | 1404702 |
| Features | |
| Pump type | Peripheral |
| Mechanical seal | EPDM / PTFE / Al. Oxide |
| Anti vibration feet | |
| Inlet strainer(s) | |
| Flexible hoses | 2 |
| Dry run protection | |
| Materials | |
| Pump body | Brass |
| Impeller | Brass |
| Performance | |
| Maximum head (closed valve) | 4.5 bar |
| Performance @ 9 l/min | 3.5 bar |
| Performance @ 18 l/min | 2.4 bar |
| Maximum flow | 40 l/min |
| Maximum static inlet pressure | 14 metres |
| Maximum working pressure* | 600 kPa (6 bar) |
| Maximum ambient air temperature | 40 °C |
| Min / Max water temperature** | Min 4 °C / Max 65 °C |
| Flow switch sensitivity (approx) | 0.6 l/min |
| Connections | |
| Pump connections | G ¾ male |
| Flexible hoses | |
| Connections (UK model) | G ¾ female x 22 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (ROI model) | G ¾ female x 21 mm push-in 300 mm long Isolating valves on all hoses |
| Connections (Export model) | G ¾ female x G ¾ female 300 mm long |
| Motor | |
| Type | Induction, auto-reset thermal trip |
| Duty rating | Continuous (S1) @ 9 l/min and above |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 2.4 Amps |
| Power consumption | 555 Watts |
| Fuse rating | 5 Amps |
| Power cable (pre-wired) | 1.5 metres |
| Physical | |
| Enclosure protection | IPX4 |

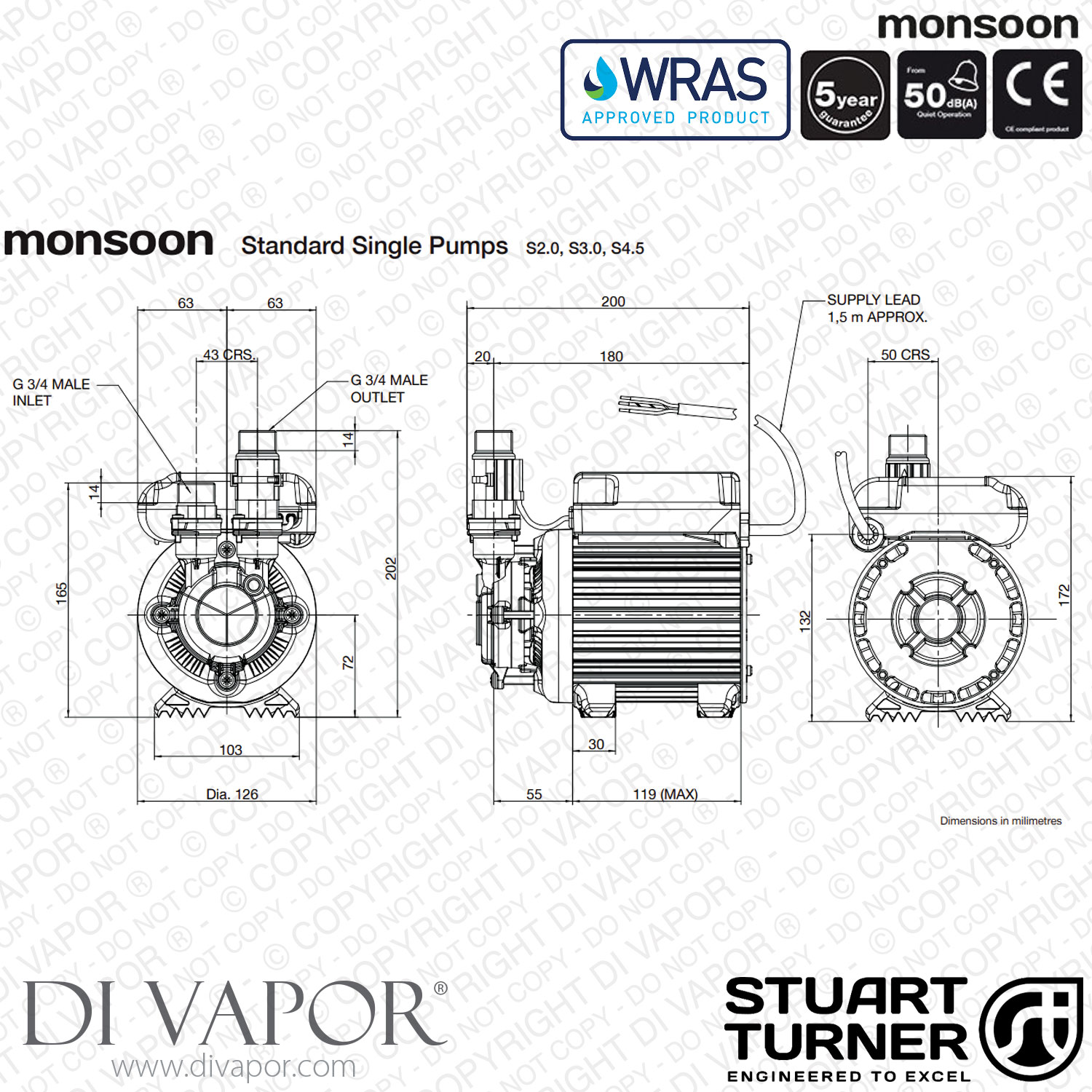

| Length | 200 mm |
| Width | 126 mm |
| Height (excluding hoses) | 202 mm |
| Weight (including fittings) | 6.0 Kg |
* The maximum pressure that can be applied to the pump under anyinstallation conditions.
** A stored water temperature of 60 °C is considered sufficientto meet all normal requirements and will minimise deposition ofscale in hard water areas.
