LX LP200 Pump 2hp - 220V/50Hz - 7.0 Amps
Send a photo of your item and we'll help confirm it.
Summary
| Manufacturer Model: | LP200 |
| Qmax Litres/Min | 535 |
| Hmax (m): | 13 |
| Voltage / Hertz: | 220V - 240V / 50Hz |
| Power (KW): | 1.5 |
| Horsepower (HP): | 2 |
| Ampage: | 7 |
| Curves: | N/A |
| Speed (Revolutions / Minute: | N/A |
| Power (Watts): | 1500 |
| Heater Power (Watts): | N/A |
| Maximum Pressure (Mpa): | N/A |
| Maximum Pressure: | N/A |
| Air Volume (m3/min): | N/A |
| Noise Level dB (A): | N/A |
| Jets Quantity (pieces): | N/A |
| Recommended Water Depth (metres): | N/A |
| Water Volume Heating Capacity (Gallons): | N/A |
| Water Volume Heating Capacity (Litres): | N/A |
| Fitting Size (mm): | 60.3mm or 63mm |
| Weight (Kg): | 12.7 |
| Length (mm): | 420 |
| Width (mm): | 235 |
| Height (Kg): | 280 |
| Power Cable Length: | 1.5 Metres |
| Pump Type: | Water Circulation Pump |
| Brands Used On: | |
| Will ship to: | Worldwide |
| Suitable For: | Hot Tubs (i.e. Jacuzzi) , Whirlpool Baths, Small Swimming Pools |
| Certification: | CE, TUV |
| Water Protection Grade: | IP55 |
| Thermal Protector: | TI.USA |
| Important Information: | N/A |
| Other Information: | Please contact us for more information about 230V / 60Hz, 110V / 60Hz models before ordering. |
LX LP200 Pump 2 HP | Hot Tub | Spa | Whirlpool Bath | Water Circulation Pump | 220V/50Hz | 7.0 Amps.
Pipe Connectors (2"D PVC)
External (black plastic) Thread Diameters: 78.5mm (approx)
White Union (screws onto above thread) Fitting Smooth Pipe External Diameter: 69mm
White union Fitting Smooth Pipe Interal Diameter: 63.5mm
Frequently Asked Questions: LX LP200 Pump 2 HP
The LX LP200 is a water circulation pump that can be used in hot tubs, spas, whirlpool baths, and even small swimming pools. It is a single speed (1 speed), 2 HP replacement pump with an ampage draw of 7 A, and is equipped with a TI.USA thermal protector. This water pump is one of the most popular pumps used with post-2008 hot tubs and spa systems in the UK by Chinese manufacturers.
Question: What are the pump's dimensions?
Answer: The approximate total length of the LX LP200 pump is 42cm (38cm without white pipe adapter). The width is about 22.5cm. The height is 28 cm.

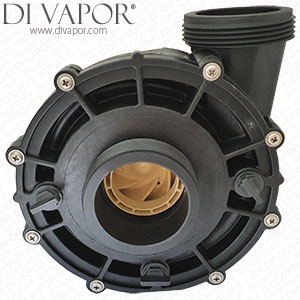

Question: Where are the wet ends of this water circulation pump?
Answer: The pump has the wet end-suction located in the middle and the return is on the right side.
Question: What is the flow value capacity?
Answer: The flow value of water pump LX LP200 is 13m (H max) and 535 litres per minute flow (Q max).
Question: I need a replacement pump that can handle more than 535lpm. Do you supply it?
Answer: Di Vapor has a more powerful pump which has a maximum flow rate of 635 litres per minute: LX LP300 or LX WP models.
Question: Can this replacement water pump be used in Sundance spas?
Answer: Yes, the LX LP200 is perfect for Sundance spas.
Question: I need a pre-2008 replacement pump. Can you give me options?
Answer: Older pumps are known to have a wet end suction of 15mm (1.5cm) versus the 20mm (2cm) of the post-2008 replacement pump. Please send us a message. We will gladly look for the replacement pump you need.
The replacement LX pump will be despatched on the same day when it is ordered:
+ on a weekday
+ before 3:00 PM.
Di Vapor carries many replacement water pumps.
Please visit our catalogue. There’s a huge possibility we have exactly what you need.
