LX JA50 Pump 0.5 HP Pump | 220V/50Hz | 2.0 Amps
Send a photo of your item and we'll help confirm it.
Summary
| Manufacturer Model: | JA50 |
| Qmax Litres/Min | 180 |
| Hmax (m): | 10 |
| Voltage / Hertz: | 220V - 240V / 50Hz |
| Power (KW): | 0.37 |
| Horsepower (HP): | 0.5 |
| Ampage: | 2 |
| Curves: | N/A |
| Speed (Revolutions / Minute: | N/A |
| Power (Watts): | 370 |
| Heater Power (Watts): | N/A |
| Maximum Pressure (Mpa): | N/A |
| Maximum Pressure: | N/A |
| Air Volume (m3/min): | N/A |
| Noise Level dB (A): | N/A |
| Jets Quantity (pieces): | N/A |
| Recommended Water Depth (metres): | N/A |
| Water Volume Heating Capacity (Gallons): | N/A |
| Water Volume Heating Capacity (Litres): | N/A |
| Fitting Size (mm): | 48.5mm or 50mm |
| Weight (Kg): | 5.9 |
| Length (mm): | 350 |
| Width (mm): | 153 |
| Height (Kg): | 250 |
| Power Cable Length: | 1.5 Metres |
| Pump Type: | Water Circulation Pump |
| Brands Used On: | |
| Will ship to: | Worldwide |
| Suitable For: | Hot Tubs (i.e. Jacuzzi) , Whirlpool Baths, Small Swimming Pools |
| Certification: | CE, TUV |
| Water Protection Grade: | IP55 |
| Thermal Protector: | TI.USA |
| Important Information: | N/A |
| Other Information: | Please contact us for more information about 230V / 60Hz, 110V / 60Hz models, 110V / 50Hz before ordering. |

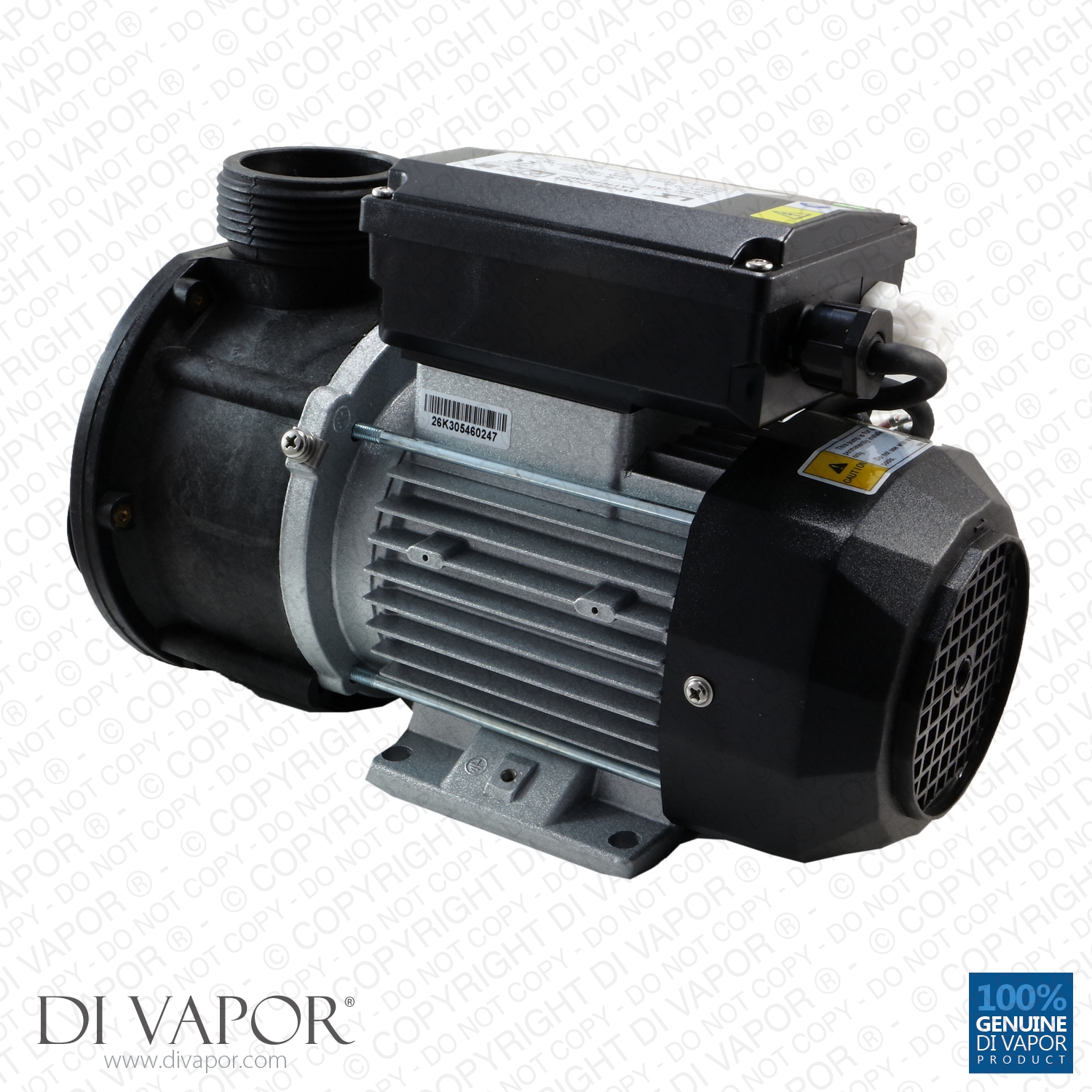

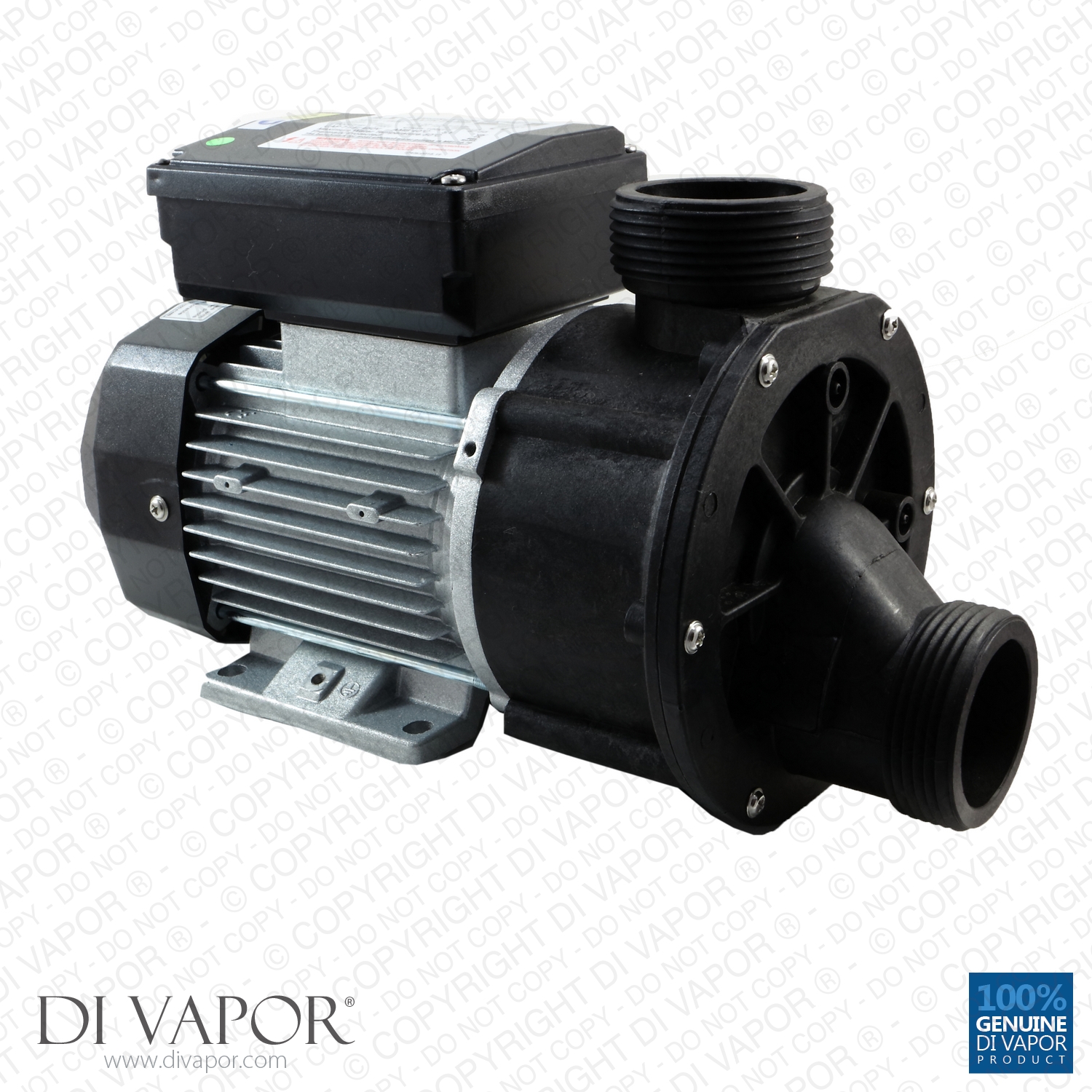

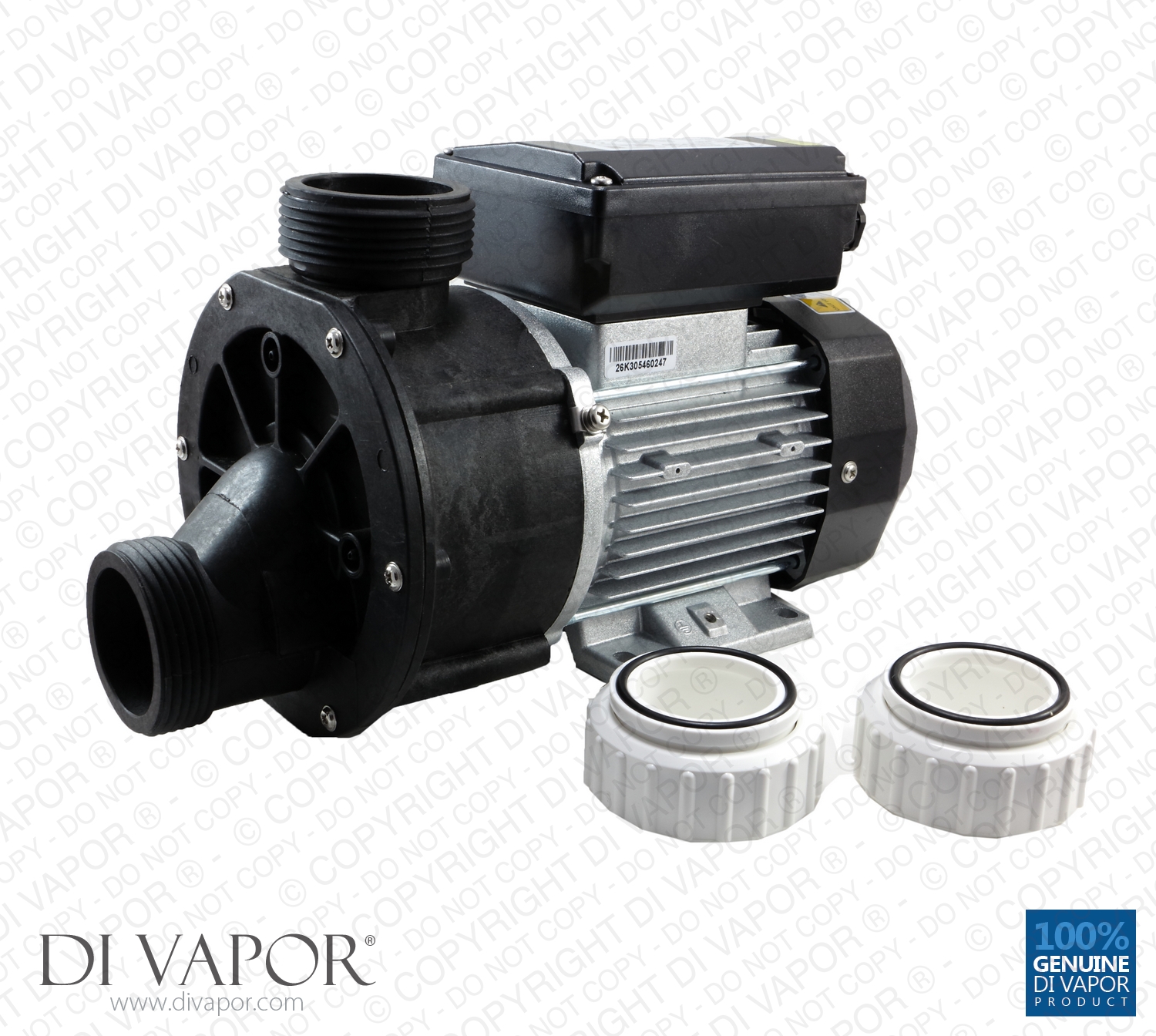

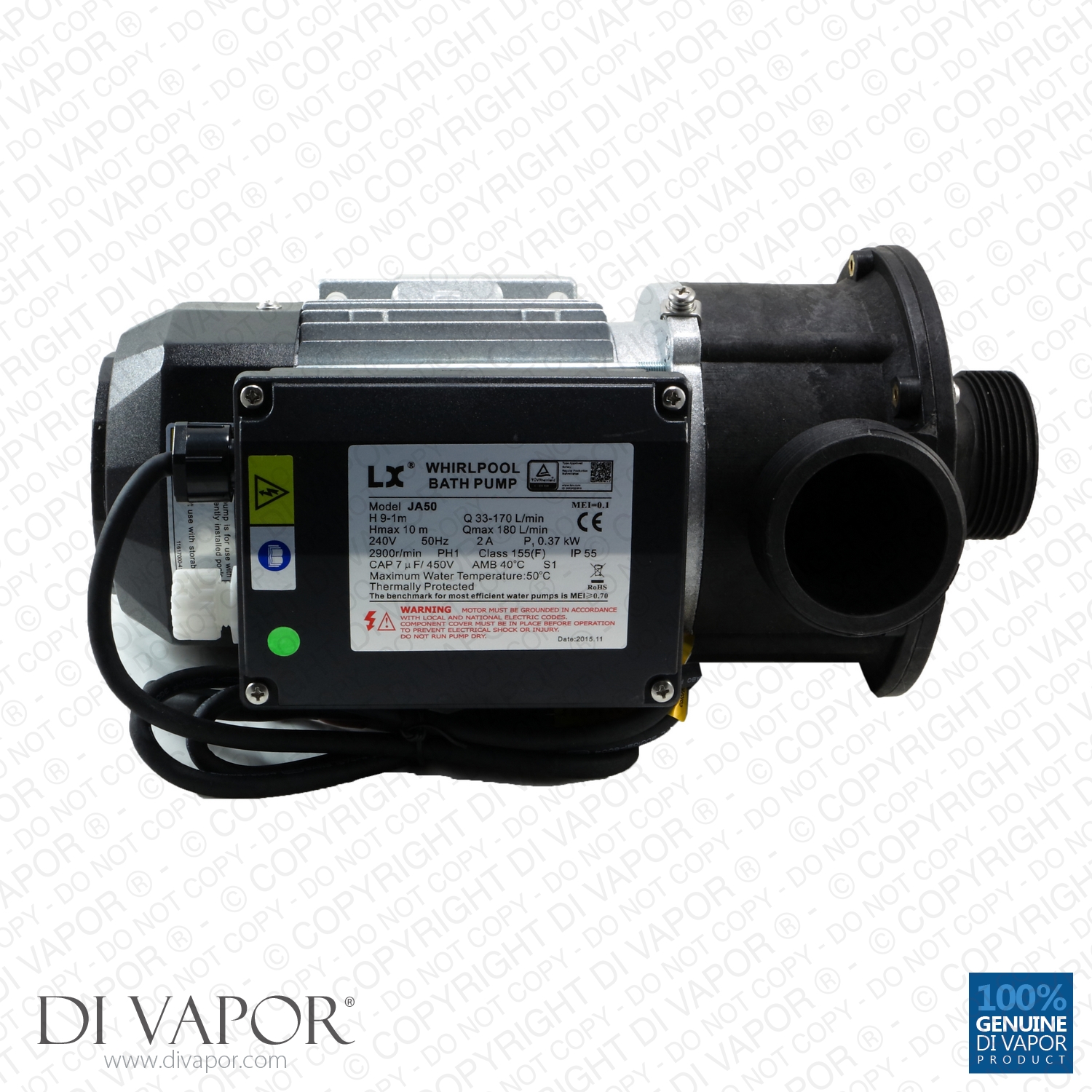

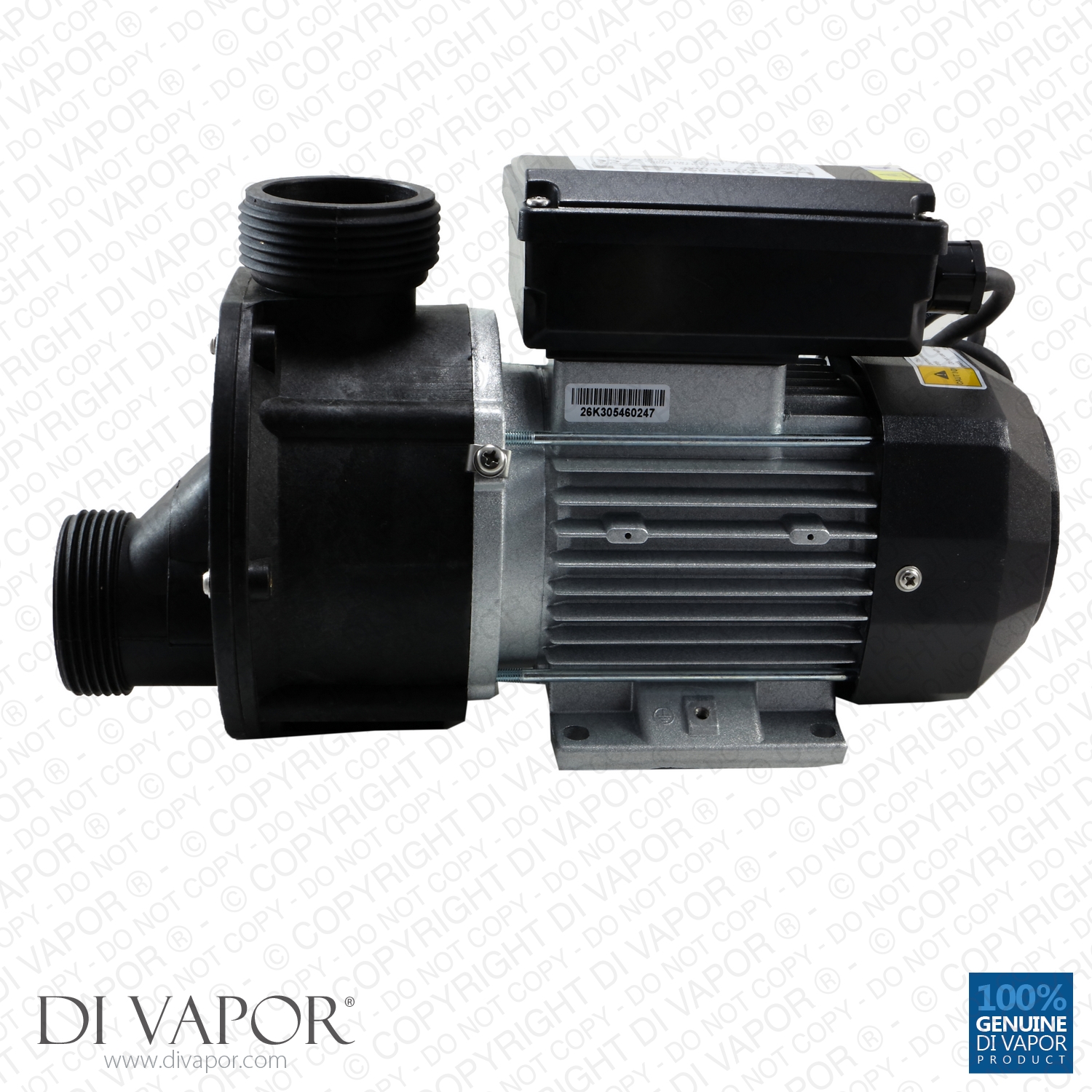

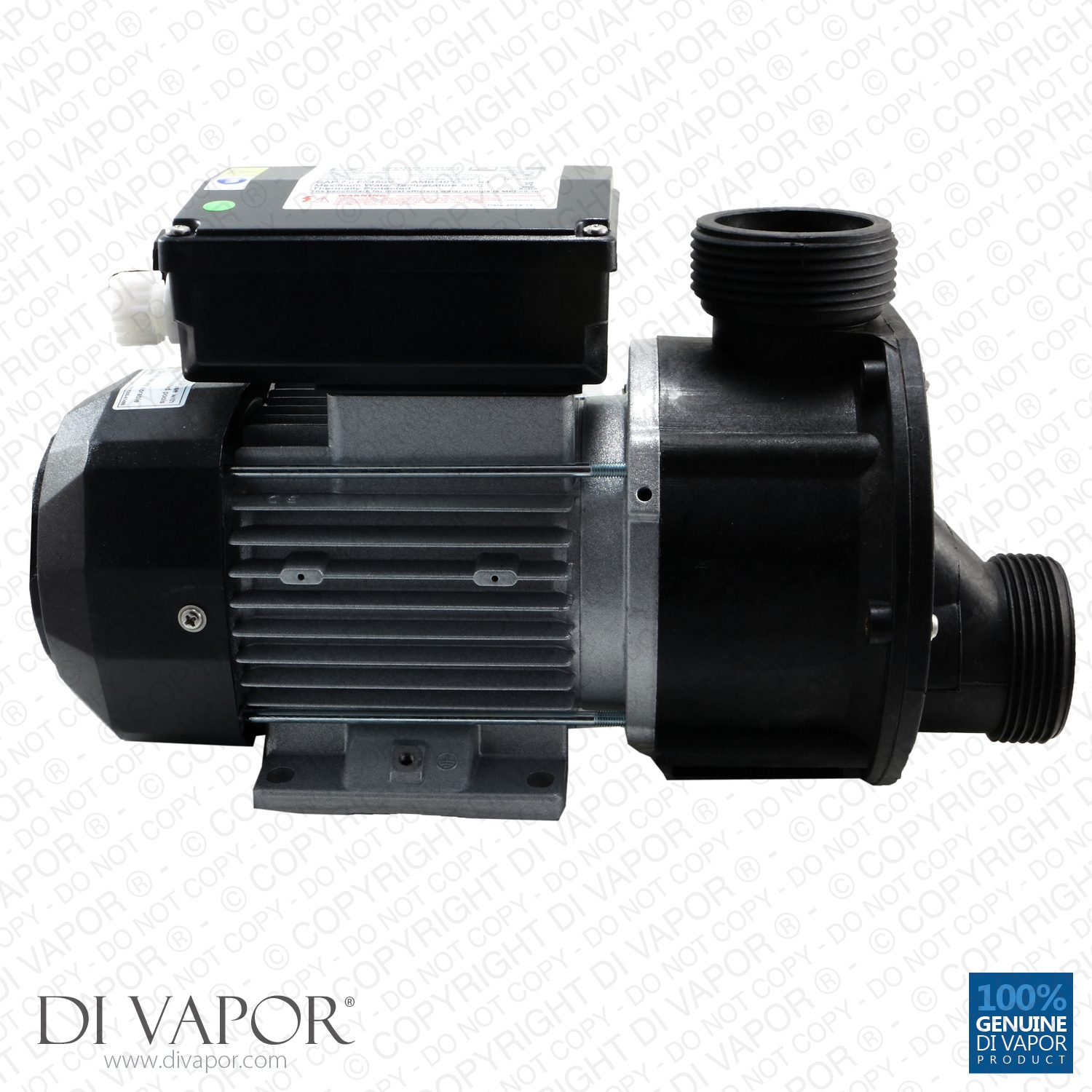

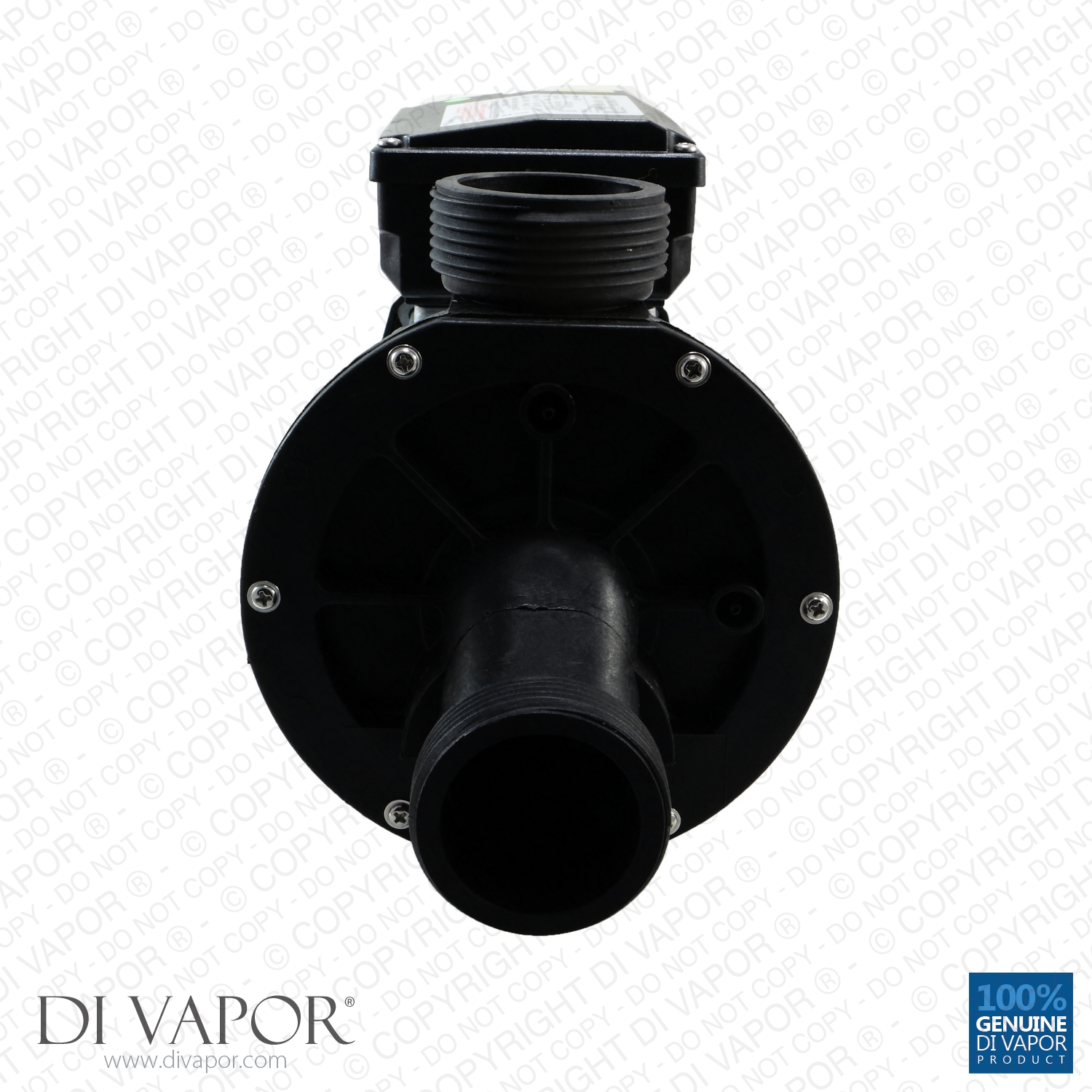

This is a genuine LX JA50 Water Pump.
0.5 HP | Hot Tub | Spa | Whirlpool Bath | Water Circulation Pump | 220V/50Hz | 2.0 Amps
The LX JA50 is a water circulation pump which is used for hot tubs, jacuzzi, and whirlpool baths (as well as smaller swimming pools). The pump has a single impeller and has a one speed motor.
Additional Information
| Brand | LX |
|---|---|
| Dimensions | 325mm x 185mm x 155mm |
| Features | Integrated with thermal protection, IPX5 Protection, and Class F Insulated |
| Intended for | Hot Tub, Whirlpool Bath, and Spa Pools |
| Certification | TUV Certified, CE Certified, and SAA Certified |
The LX JA50 Water Circulation Pump for hot tubs and whirlpool baths can be dispatched on the next working day given that it is:
- Ordered on a weekday
- Before 3:00 PM
The LX JA50 for your whirlpool bath is built with an aluminum body and motor chassis. It is a 1-speed pump 0.5HP with an upper turbine and is rigged with thermic overheat protection. This water circulation pump is considerably quiet, even when running continuously. Water will drain as soon as the machine switches off. It can be used as a replacement for the Aqua or Davey flow pump.
Single-stage pumps contain a single rotor called an impeller. The impeller spins to heighten the flow and pressure of water. Double and multi-stage pumps have more than one rotor.
The LX JA50 single speed is a centrifugal pump, meaning it moves water by converting the flow of fluid from rotational kinetic energy into hydrodynamic energy. Water going into the pump’s rotor is accelerated by the rotor. It then flows towards the casing and egresses from the machine.
Even though the engineering of centrifugal pumps is simple, it has the capacity for a high flow rate, making it a popular choice for tubs and baths.
Water circulation pumps, like the LX JA50, serve a variety of purposes. Aside from hot tubs, SPA systems, and whirlpool baths, it can be used in fisheries to aid the flow of seawater.
Di Vapor carries a variety of LX water pumps for your whirlpool bath, hot tub, or home spa system.
Frequently Asked Questions: LX JA50 1-Speed 0.5HP Pump
Q: Can I connect a pneumatic button with the pump?
A: Yes, a pneumatic button can be connected with the LX JA50 for SPA systems that are not equipped with an electric control box.
Q: What is the frame size of this pump?
A: The LX JA50’s fitting size is 48.5mm or 50mm. The bolt distance of the frame is about four inches.
Q: How do I choose the right water pump for my whirlpool bath?
A: Choosing the right water pump is vital. You have to first determine the capacity of your home’s plumbing system. A pump’s power can range from ¾ HP to 5HP and the voltage is either a 110-120V or 220-240V. You also have to know the exact frame size of the pump you need. All the details are recorded on a label found with the pump’s body.
Q: Precautionary measures?
A: Be careful to not allow water to enter the pump motor. This will severely damage the pump irreversibly. Debris build-up in the impeller will obstruct water flow. A short circuit in the wiring may trip the circuit breaker.
