Dallmer 520852 Trap Insert Ceraline Plan
Send a photo of your item and we'll help confirm it.
Summary

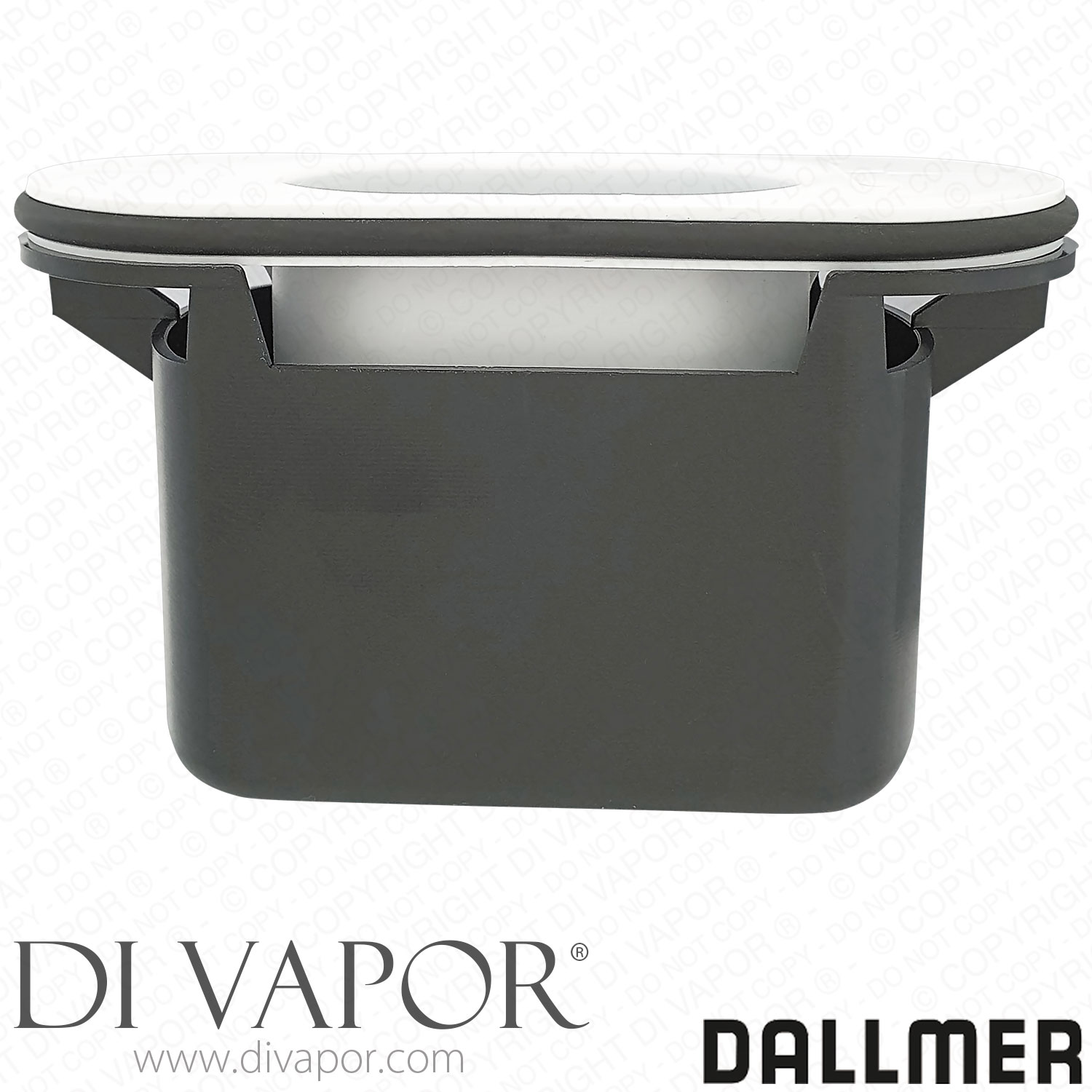

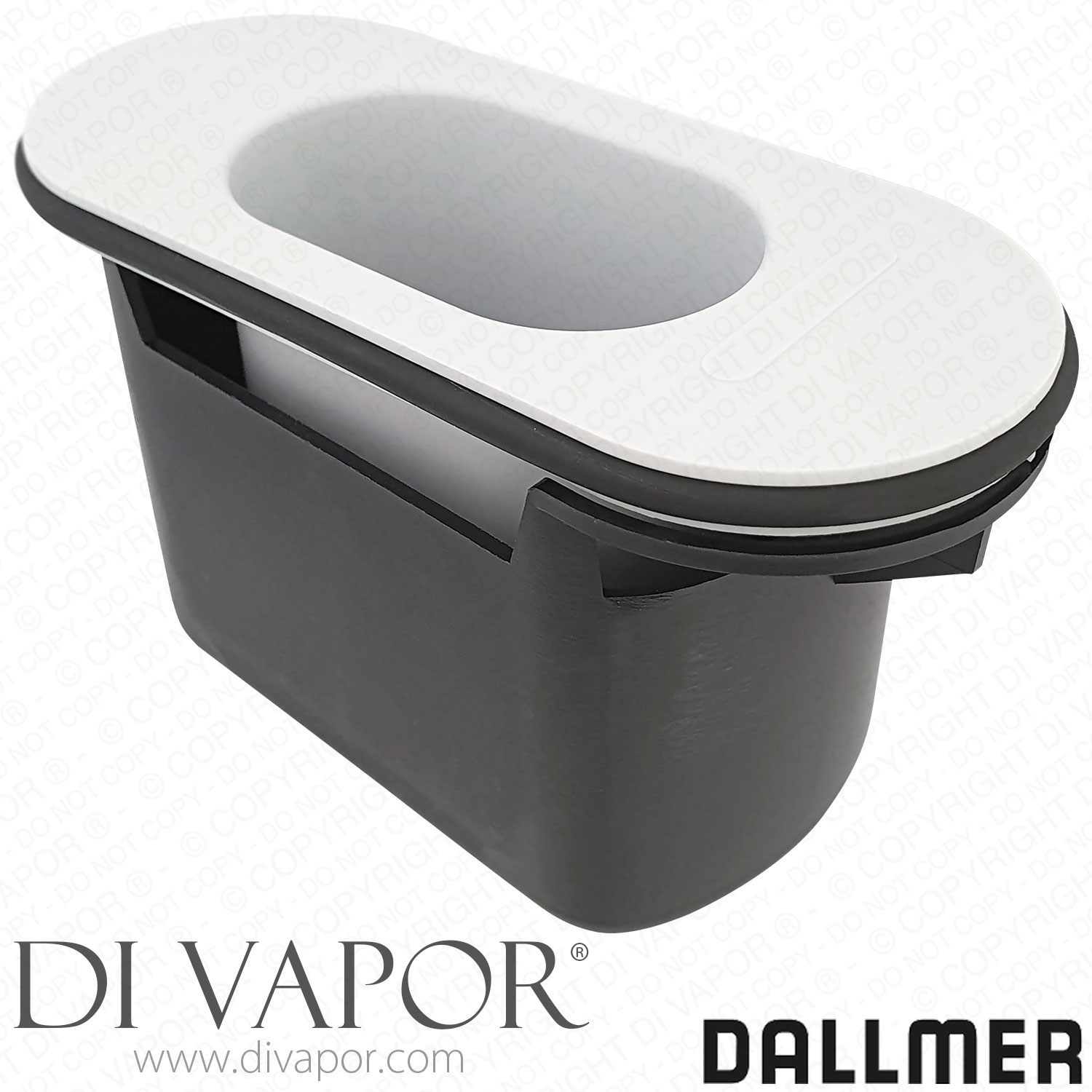

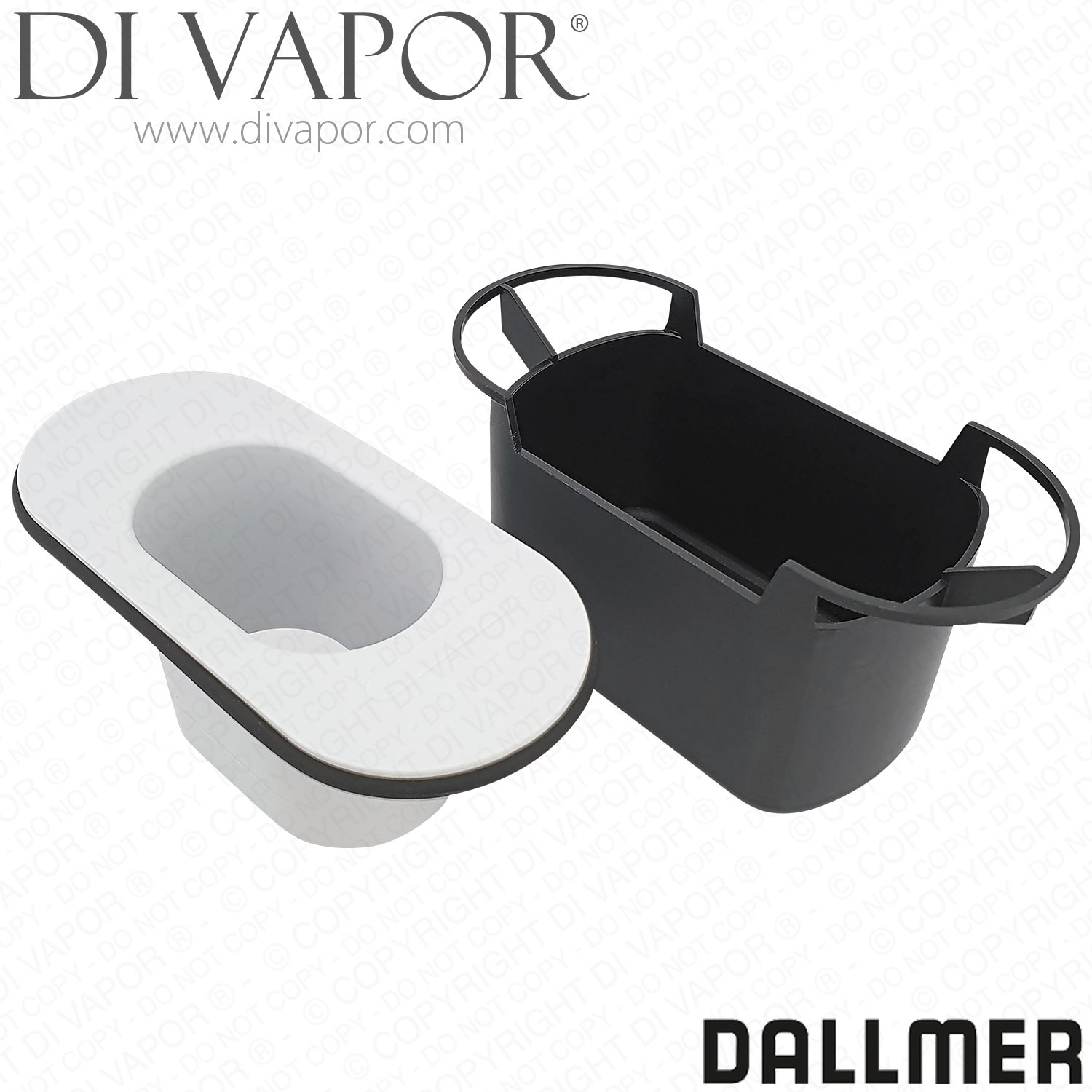

The Dallmer 520852 trap insert is a replacement odour-trap insert for Dallmer CeraLine Plan linear shower drainage channels.
This insert sits within the channel trap assembly and helps maintain the water seal that prevents drain odours from entering the shower area. It is also removable for cleaning access when the drainage channel is being maintained.
Technical Details
| Brand | Dallmer |
|---|---|
| Part Number | 520852 |
| Product type | trap insert / odour-trap insert |
| Application | CeraLine Plan shower channels |
| GTIN/EAN | 4001636520852 |
| CeraLine Plan trap context | removable 30 mm trap insert / water seal |
| Dallmer drawing measurement points | 110.5 mm, 82 mm, 61.5 mm, 51 mm and 30 mm |
| CeraLine Plan trap assembly material | polypropylene |
Confirmed Dallmer Applications
- CeraLine Plan F channel variants 523013, 523020, 523037, 523044, 523051, 523068, 523075 and 523082
- CeraLine Plan F Duo channel variants 521903, 521910, 521927, 521934, 521941, 524508, 524515, 524522, 524539, 524546, 524553, 524560 and 524577
- CeraLine Plan W channel variants 523112, 523129, 523136, 523143, 523150, 523167, 523174 and 523181
- CeraLine Plan W Duo channel variants 521958, 521965, 521972, 521989, 521996, 524584, 524591, 524607, 524614, 524621, 524638, 524645 and 524652
Before Ordering
Check that the existing drainage channel is a Dallmer CeraLine Plan model and that the removed trap insert matches the 520852 shape and measurement points. Do not order this part for other CeraLine channels unless the existing insert code or Dallmer documentation confirms 520852.
Related Spares You May Need
- Dallmer 520845 Trap Insert Ceraline Plan - Part Number 520845
