Square Deck Mounted Circular Whirlpool Bath Flow Diverter Valve Tap - Chrome
Send a photo of your item and we'll help confirm it.
Summary
| Screw Thread Diameter | 29.8mm |
|---|---|
| Screw Thread Height | 45mm (approx) |
Total Height from top of handle to bottom of bottom water inlet: 146mm
| Water inlet/outlet screw diameter | 20.4mm |
|---|---|
| Handle Diameter | 43mm |
| Handle Height | 44mm |

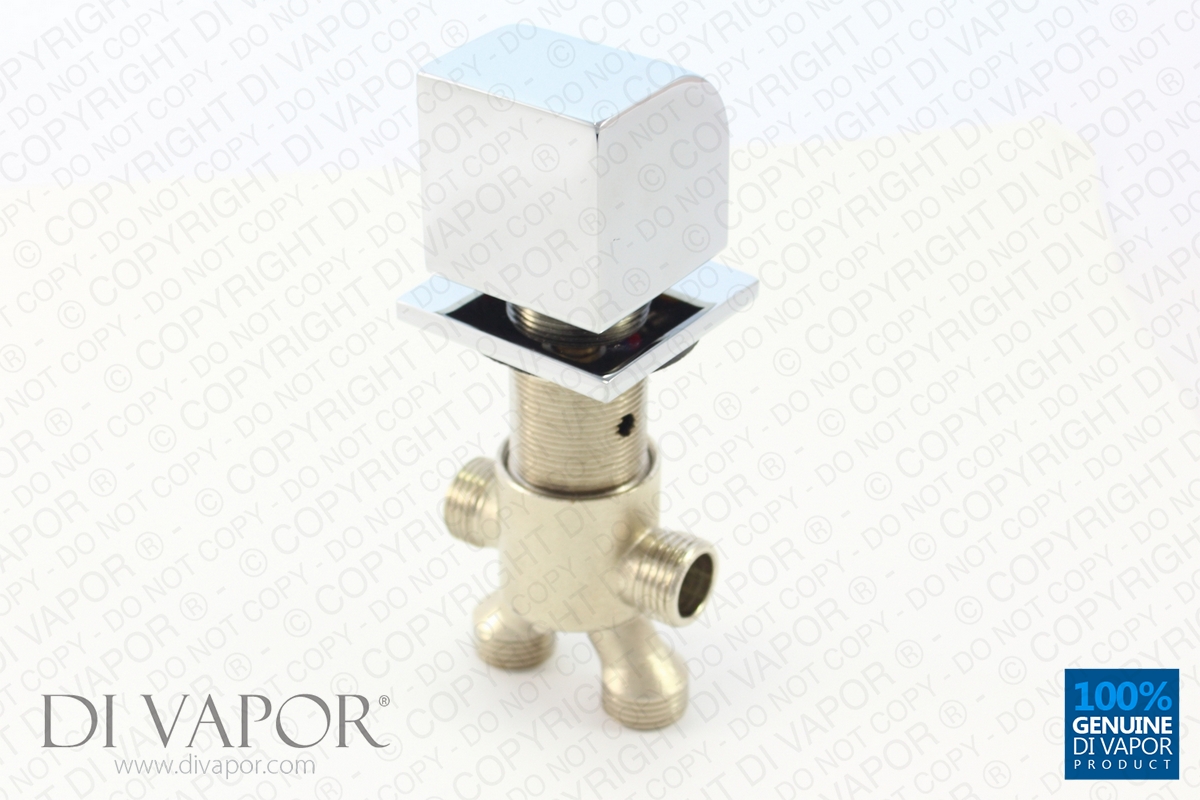

Note, the red / blue indice as shown in the image is now chrome. Contemporary & sleek in design made from high quality materials throughout. This square deck mounted circular whirlpool bath diverter flow tap is designed to direct water to two separate outlets. An example includes water being diverted from a filler tap to a handheld shower head.
It is important to note that this deck mounted tap WILL NOT shut water off entirely. This mounted valve is designed to direct water from one source to another, for example the cold water mains to the main shower head. If you require complete shut off from the mixed mains, you will need another valve in addition to this. An example of a workable product would part number: 06010024A

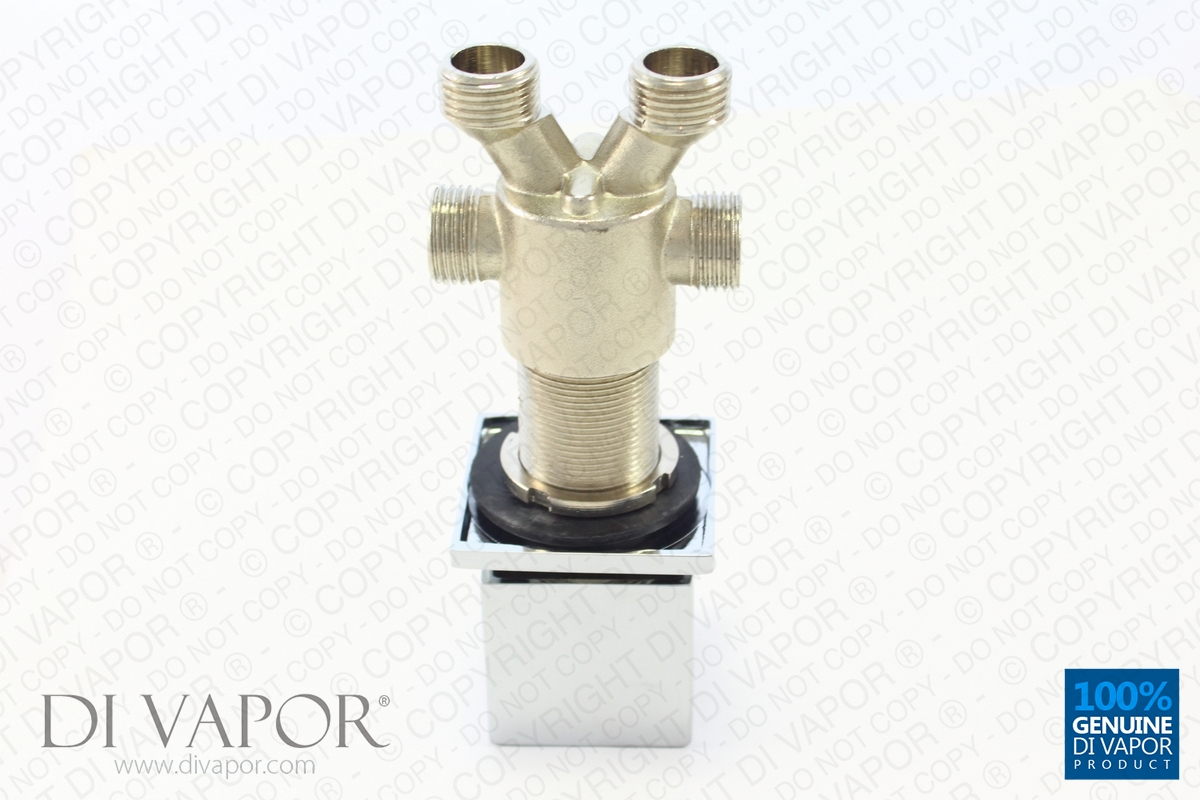

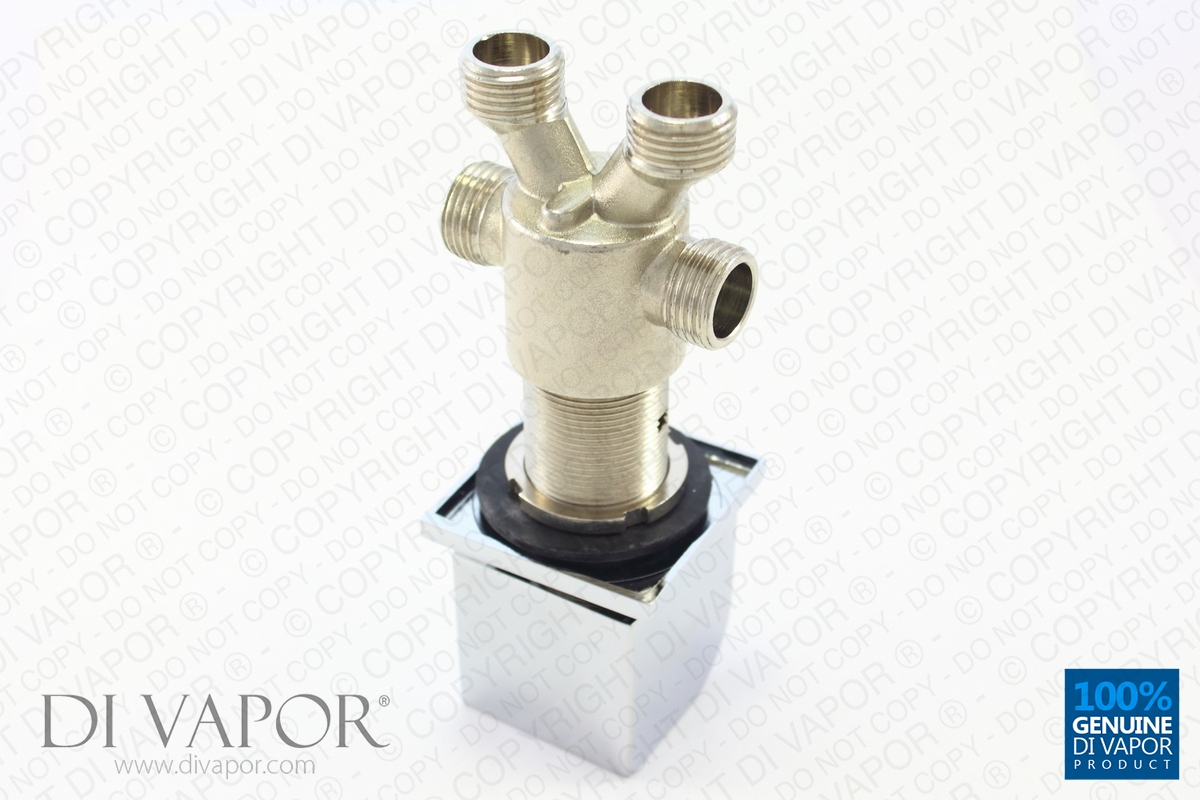

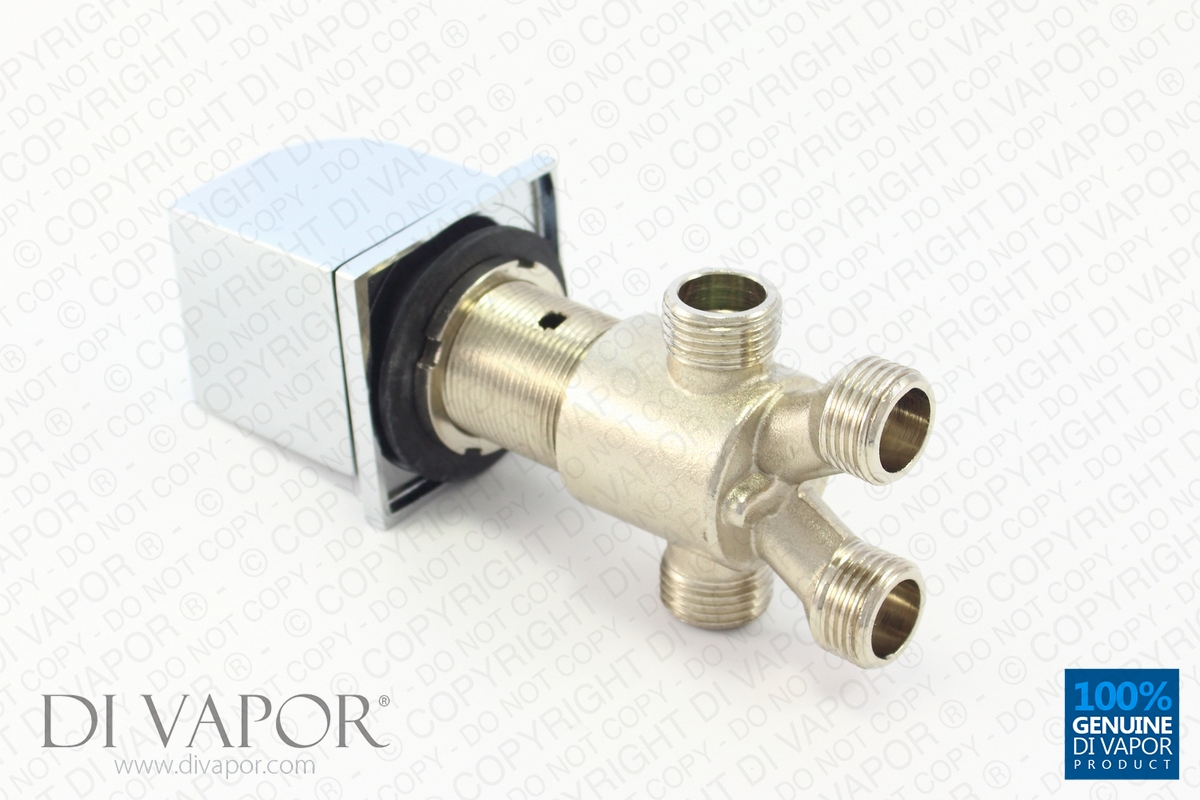

Made from solid brass finished in chrome, this diverter tap is designed to suit most bath and shower installations. The bottom two inlets will take a hot & cold water feed and divert the flow to one of the two outlets available.
Standard 22mm compression pipe connections - More dimensions available if required. Please contact us for more information.
