Vado Wentworth WEN-DIVERTER-MECH Diverter Mechanism
Part number: WEN-DIVERTER-MECH
Out of stock - Ask a Question now
Unfortunately, this specific item is now discontinued and can no longer be purchased from Di Vapor. See the description below for alternatives or scroll down this page and see the associated 'Other items'.
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

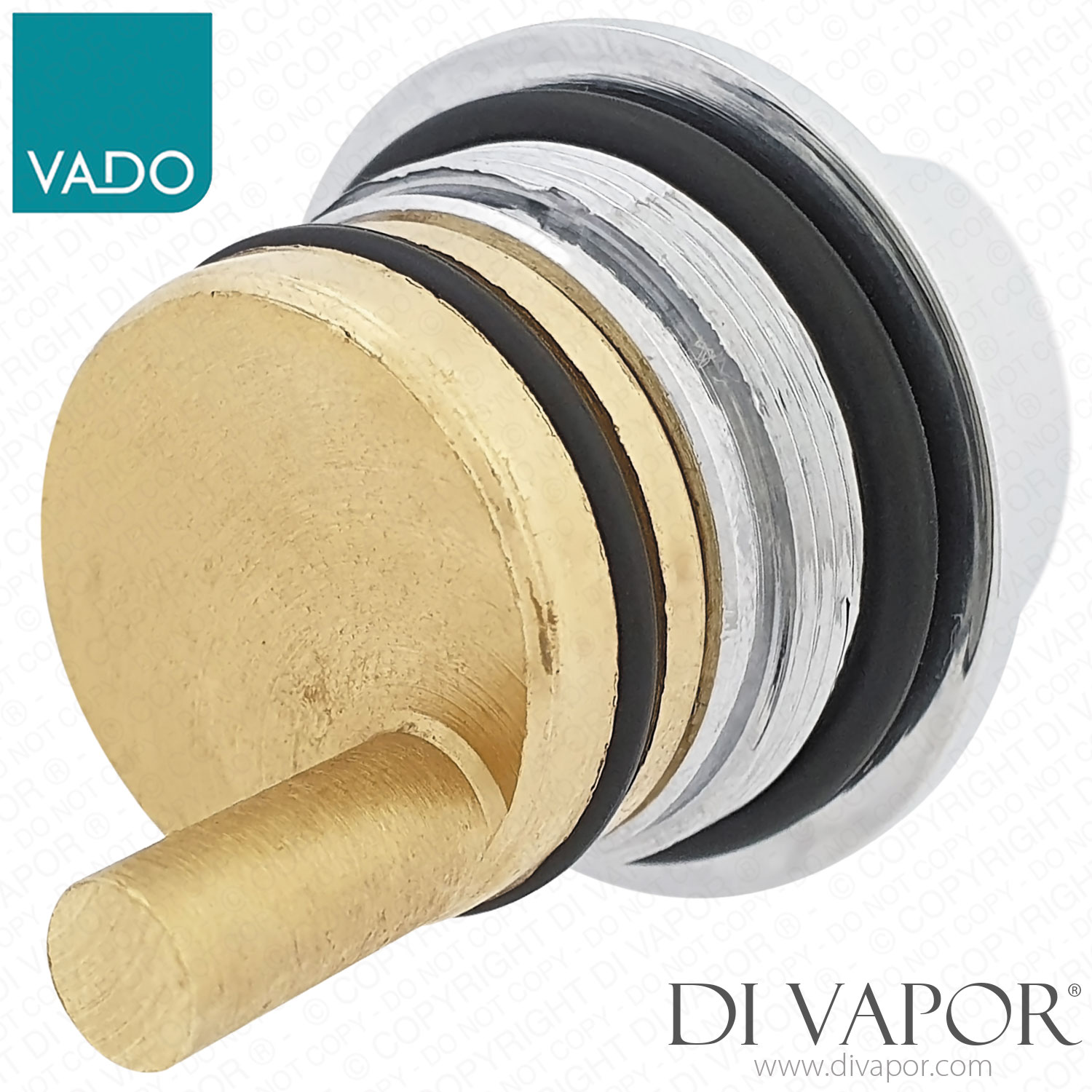

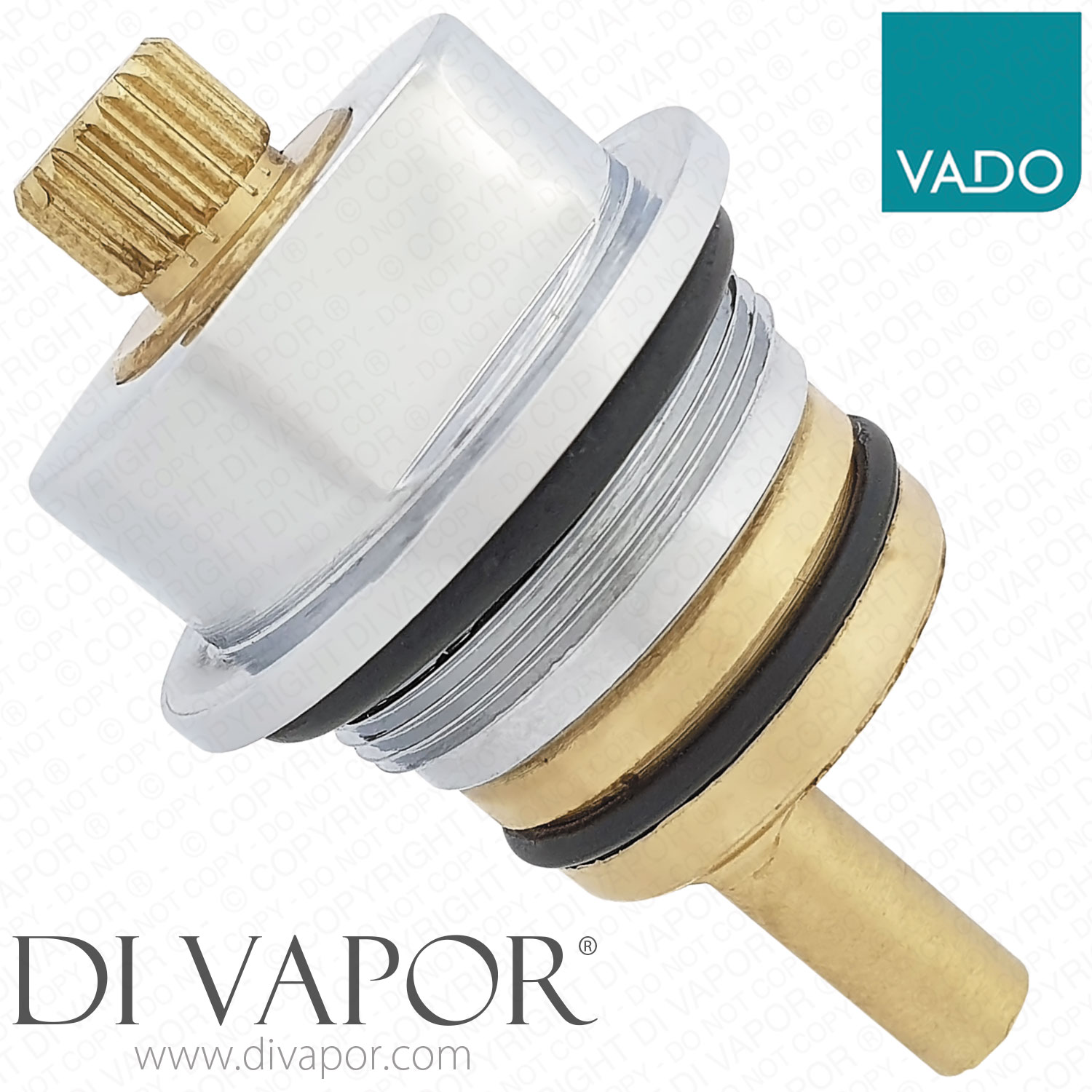

The Vado WEN-DIVERTER-MECH is a Wentworth bath shower mixer diverter mechanism used in selected Vado Wentworth bath shower mixer assemblies.
This part controls the changeover between the bath fill and shower outlet. A worn diverter mechanism can cause poor switching or failure to divert water correctly between outlets.
Technical Details
| Thread diameter | 24.8mm |
|---|---|
| Total height | 49.5mm |

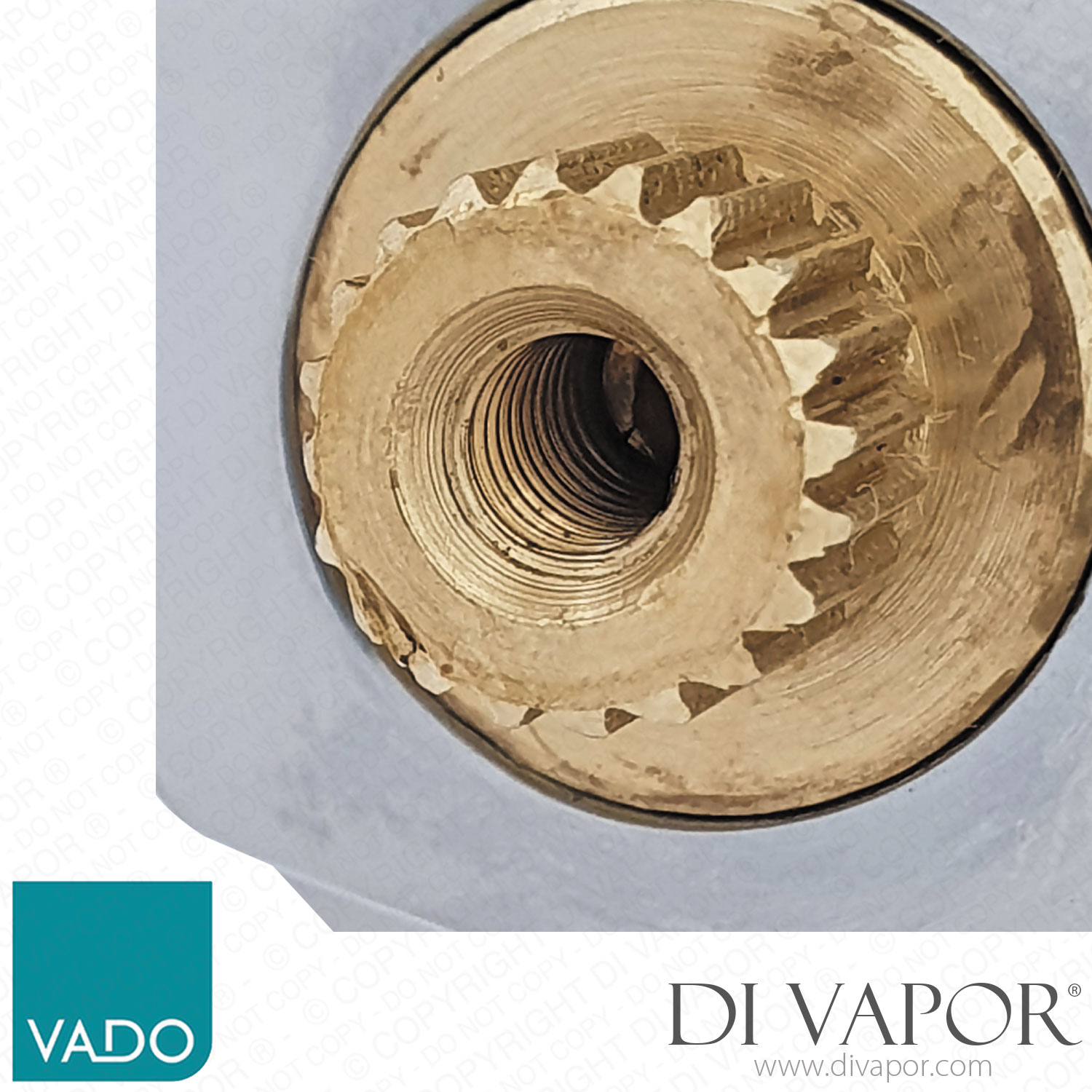

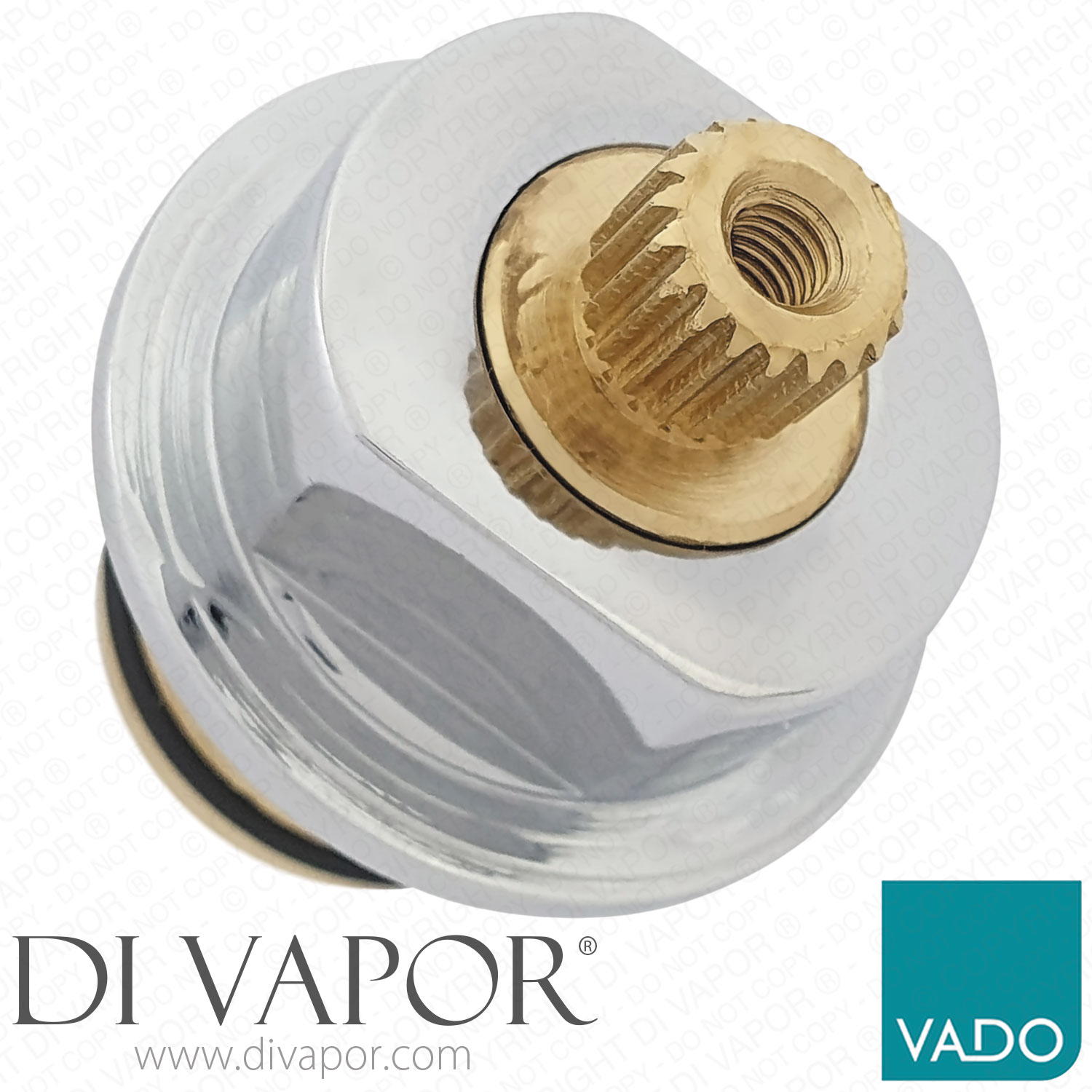

| Splines | 20 |
| Spline diameter | 8.8mm |
| Rod length | 13mm |
- Use the exact part code and verified model fitment to identify the correct spare. Do not match by size alone.
Confirmed Model Fitment
Related Spares You May Need
- WEN-131/DIV-SWITCH internal brass diverter switch
- WEN-VALVE-3/4-C/P chrome bath tap cartridge
- FR-SHOWER/9-C/P flow regulator
- FR-SHOWER/9-A/G flow regulator
Related Part Numbers
WEN-131/DIV-SWITCH,WEN-VALVE-3/4-C/P,FR-SHOWER/9-C/P,FR-SHOWER/9-A/G
