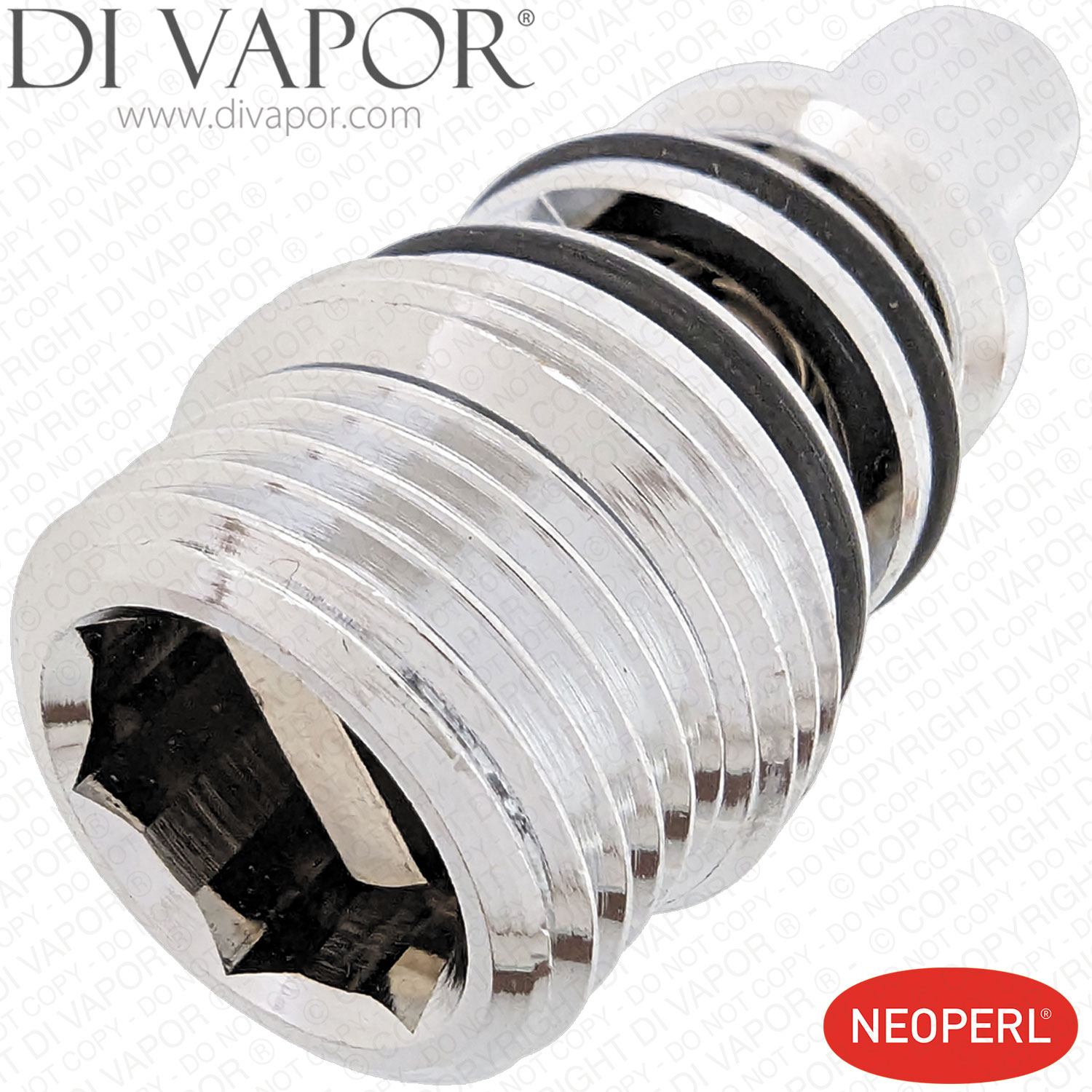

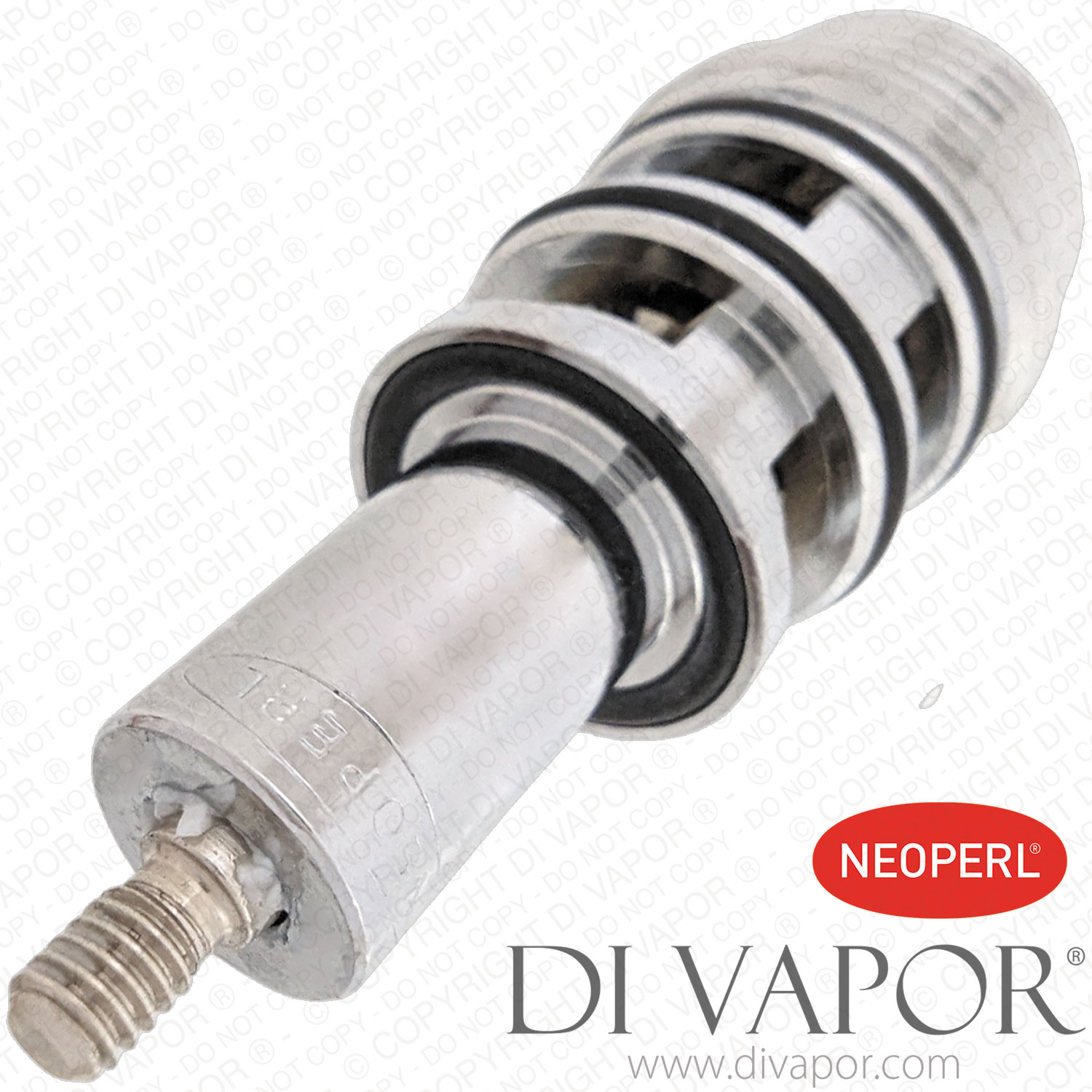

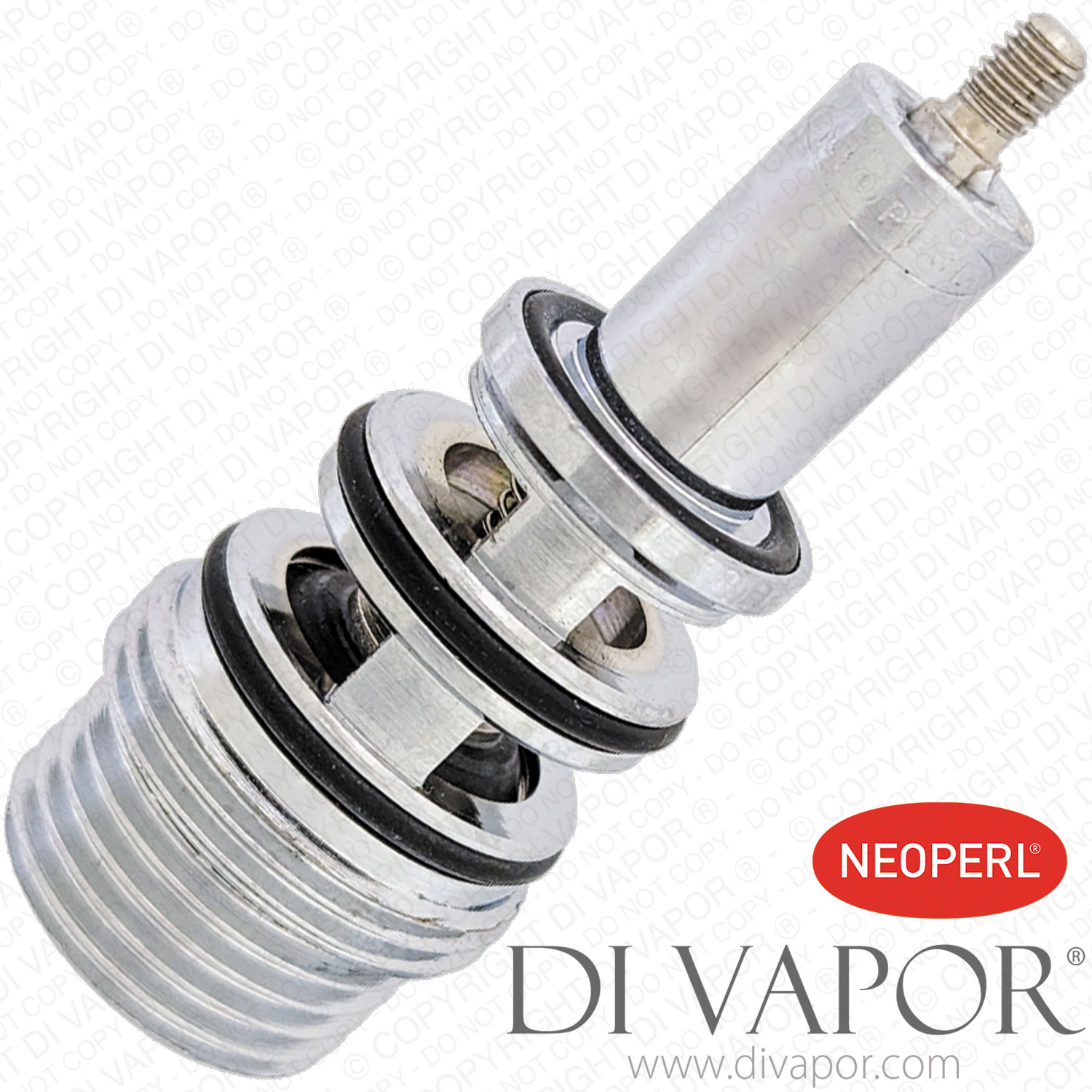

NEOPERL 180020000 DVA Short Diverter

SUMMARY

- - Total Height: 61.7mm
- - Diameter of top thread (which knowb screws onto): 3.86mm
- - Diameter of lower thread: 20.77mm
- - Diameter of second thread up: 23.75mm
- - Diameter of top o-ring: 21.18mm
- - Diameter of second o-ring: 22.2mm

Product Overview

The Neoperl 180020000 DVA Short Diverter is a replacement diverter valve component designed for bath shower mixer valves. It redirects water flow between different outlets and is sized for shorter diverter chambers, making it suitable for a range of mixer valve applications requiring a compact diverter.

Function & Use

This short diverter valve is installed within the internal body of a bath shower mixer to switch the flow of water from one outlet to another, such as from a spout to a shower hose. Replacement is typically needed when the original diverter sticks, leaks, or fails to divert flow correctly, causing backflow or incomplete diversion.

Key Features

--Replacement short diverter valve component

--Designed for compact diverter chambers

--Durable precision engineered construction

--Suitable for bath shower mixer applications requiring a short diverter valve

Confirmed Compatible Applications

--Fits bath shower mixer valves and fittings that accept the Neoperl 180020000 short diverter valve where the internal diverter assembly matches the required dimensions and thread sizes.

Product Specifications

--Total height approximately 61.7 mm

--Top threaded connection diameter approximately 3.86 mm

--Lower threaded connection diameter approximately 20.77 mm

--Secondary thread diameter approximately 23.75 mm

--O-ring diameters approximately 21.18 mm and 22.2 mm

What’s Included

--One Neoperl 180020000 short diverter valve

Installation Notes

Isolate the water supply before removing the old diverter from the mixer valve body. Fit the Neoperl 180020000 unit into the correct diverter chamber, ensuring seals and o-rings are correctly seated to prevent leakage. Restore the water supply and test diversion between outlets for correct operation.
