GROHE 38506000 Skate Air Toilet Cistern Wall Flush Plate

SUMMARY

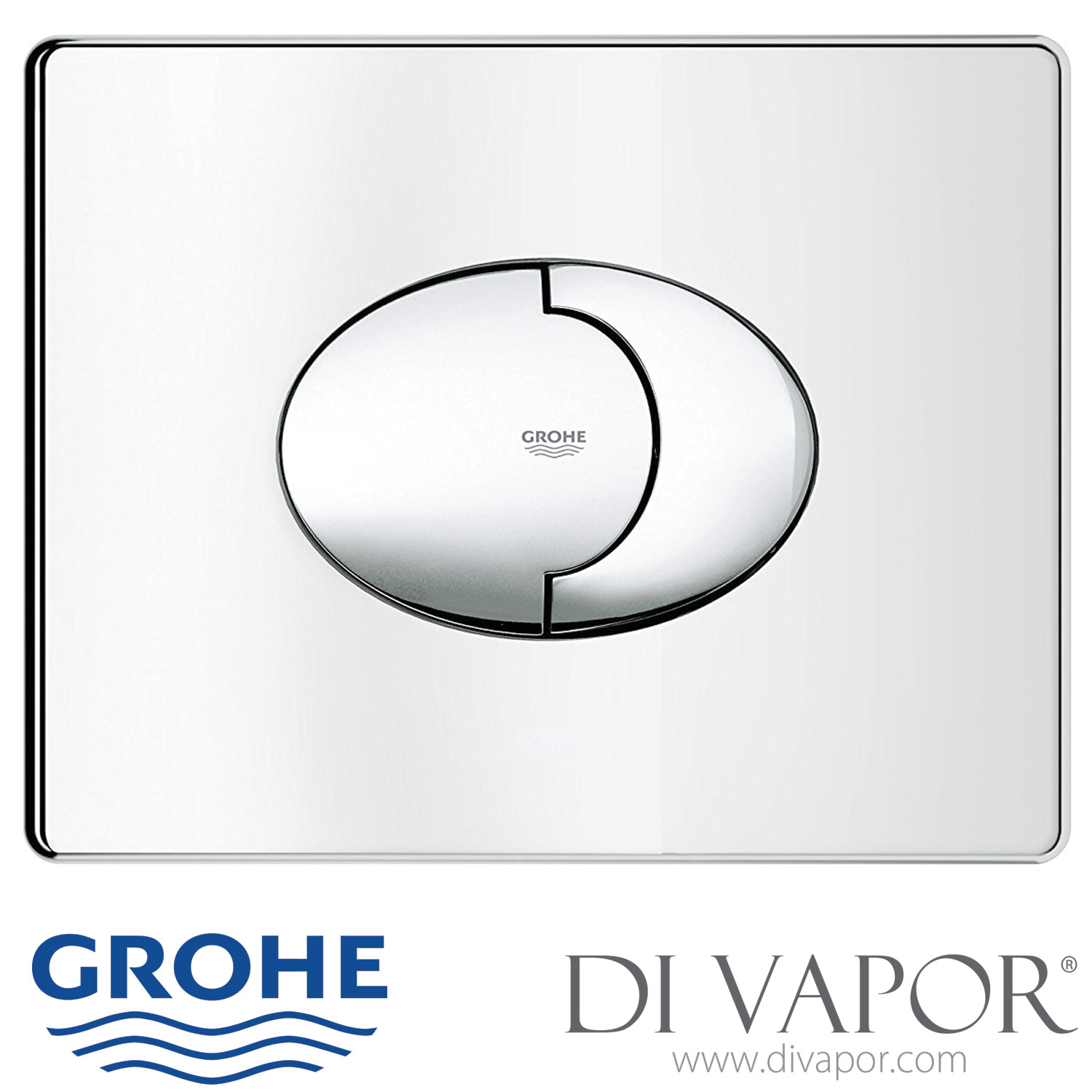

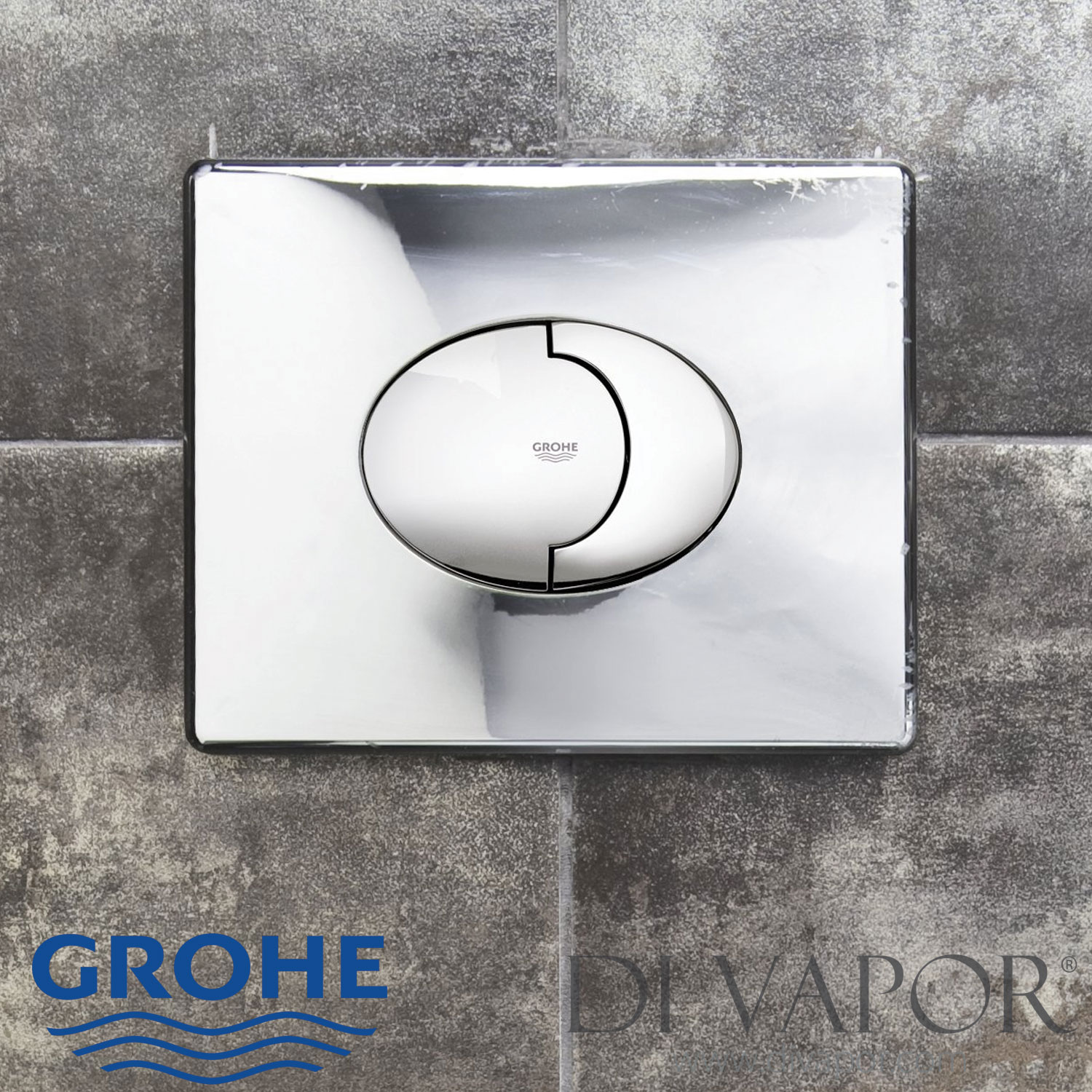

GROHE 38506000 Skate Air Horizontal Toilet Cistern Flush Plate Chrome

GROHE 38506000 is a chrome Skate Air horizontal toilet cistern flush plate designed for wall-mounted operation of supported GROHE concealed cistern installations using pneumatic AV1 actuation. The plate is manufactured from ABS and provides the user-facing control for flushing the concealed WC cistern.

The pneumatic control interface operates the AV1 discharge valve and supports dual-flush or Start & Stop actuation according to the cistern configuration. This makes the plate suitable for the confirmed Rapid SL and Uniset GD 2 installations listed below.

Technical Details

- - Brand: GROHE

- - Range: Skate Air

- - Category: Toilet flush plate

- - Manufacturer code: 38506000

- - Installation orientation: horizontal

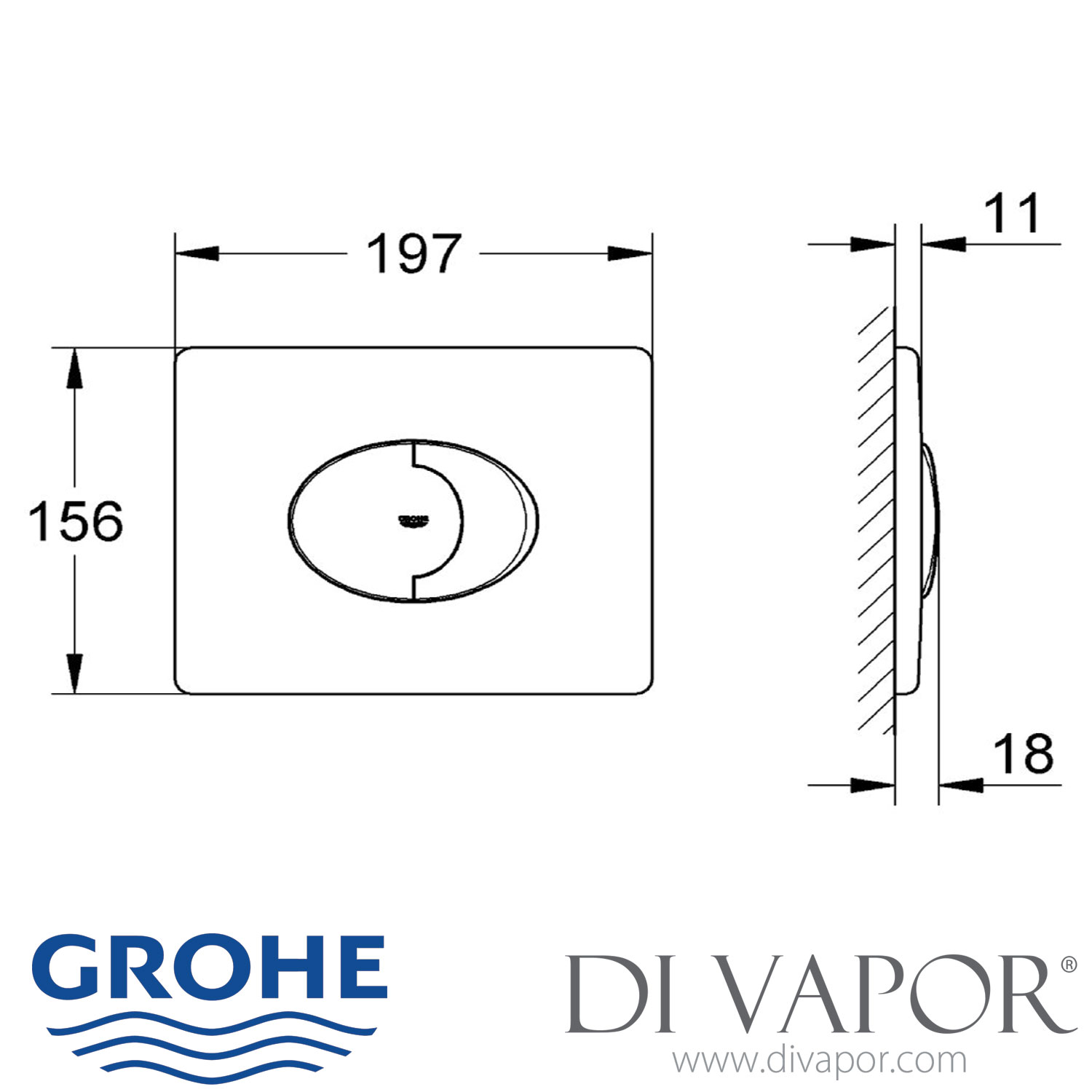

- - Dimensions: 197 mm wide x 156 mm high x 10 mm deep

- - Material: ABS

- - Finish: chrome

- - Actuation: pneumatic

- - Discharge valve system: AV1

- - Flush operation: dual flush or Start & Stop

- - Standard dual-flush volume: 3 / 6 litres

- - Reduced 3 / 4.5 litre operation is possible where supported by the relevant cistern and WC ceramic configuration

- - EAN: 4005176290121

Confirmed Compatible Models

- - GROHE Rapid SL with GD 2 cistern

- - GROHE Uniset with GD 2 cistern

- - GROHE Rapid SL 3-in-1 set 38 761 000

- - GROHE Rapid SLX 39 596 / 39 598 when installed with the separately required 66 791 000 revision shaft

Before You Order Check

- - Confirm the concealed WC frame or cistern reference before ordering rather than selecting the plate by dimensions alone

- - Confirm that the installation uses the GROHE pneumatic AV1 actuation system

- - Rapid SLX fitment is conditional and should not be assumed for every Rapid SLX installation

- - GROHE Rapid SLX 39 865 000 is not included in the confirmed fitment above
