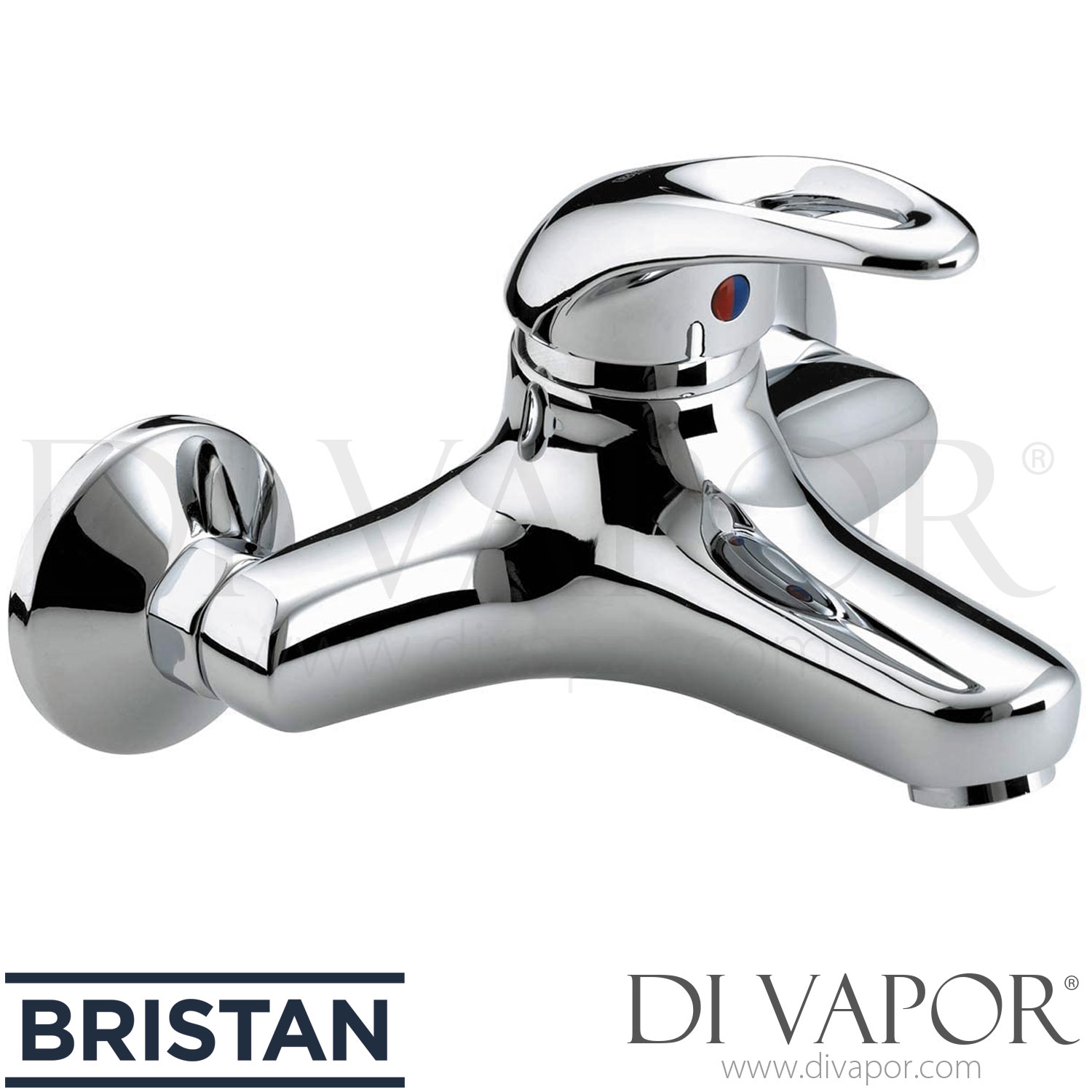

Bristan J WMBF C Java Wall Mounted Bath Filler Tap - 03/07/2014 - Spare Parts
SUMMARY

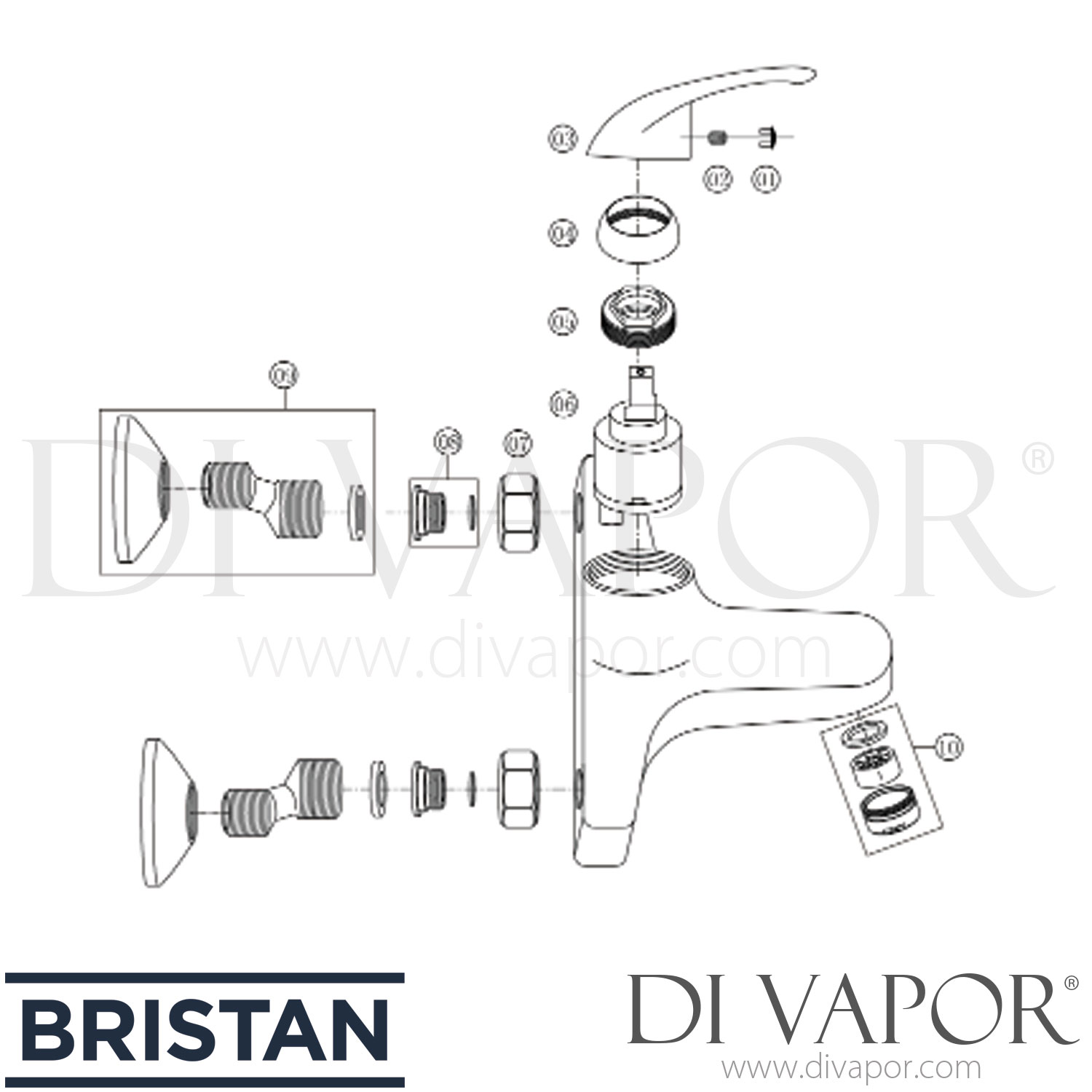

Tap Spares for Bristan J WMBF C Java Wall Mounted Bath Filler
Revision Date: 03/07/2014
Bristan H405HGB Java Cartridge Replacement (BAS H405HGB-M) Bristan H405HGB Compatible Replacement Tap Cartridge Information Technical Details: Diameter: 40mm (at blue body) Distance Between Locating Pins: 18mm Centre to Centre Total Length (excluding locating pins): 75mm ...
Bristan N31-A Cartridge Retaining Nut for J BAS Nut Thread Diameter: 41.83mm Hut Total Height: 12.55mm Hex Diameter (flat to flat): 29.8mm ...
Bristan SC5-6SN M5 x 6mm Stainless Steel Grub Screw
Bristan Java H91-C Lever Tap Control Handle Handle Measurements: Total Length: 116.3mm Diameter at Base of Handle: 53.2mm Lever Hole (That the Cartridge Head Goes Into): 10.2mm x 11.1mm...
Bristan P91-B Indice Cap for J BAS C - Sold Individually

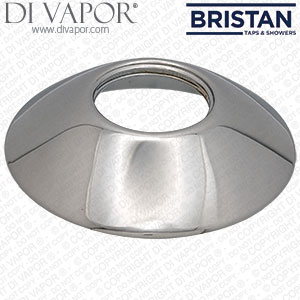

Bristan N22-B Shroud Assembly for J WMBSM C Diameter at widest point: 66mm
Bristan S91 Shroud for J BAS C for 40mm Cartridges Diameter at base: 47.5mm...
