Grohe 36273000 Euroeco Cosmopolitan E Infra-Red Electronic Wall Basin Tap without Mixing Device

SUMMARY

GROHE 36273000 Euroeco Cosmopolitan E Mains-Powered Infra-Red Wall Basin Tap without Mixing Device - Chrome

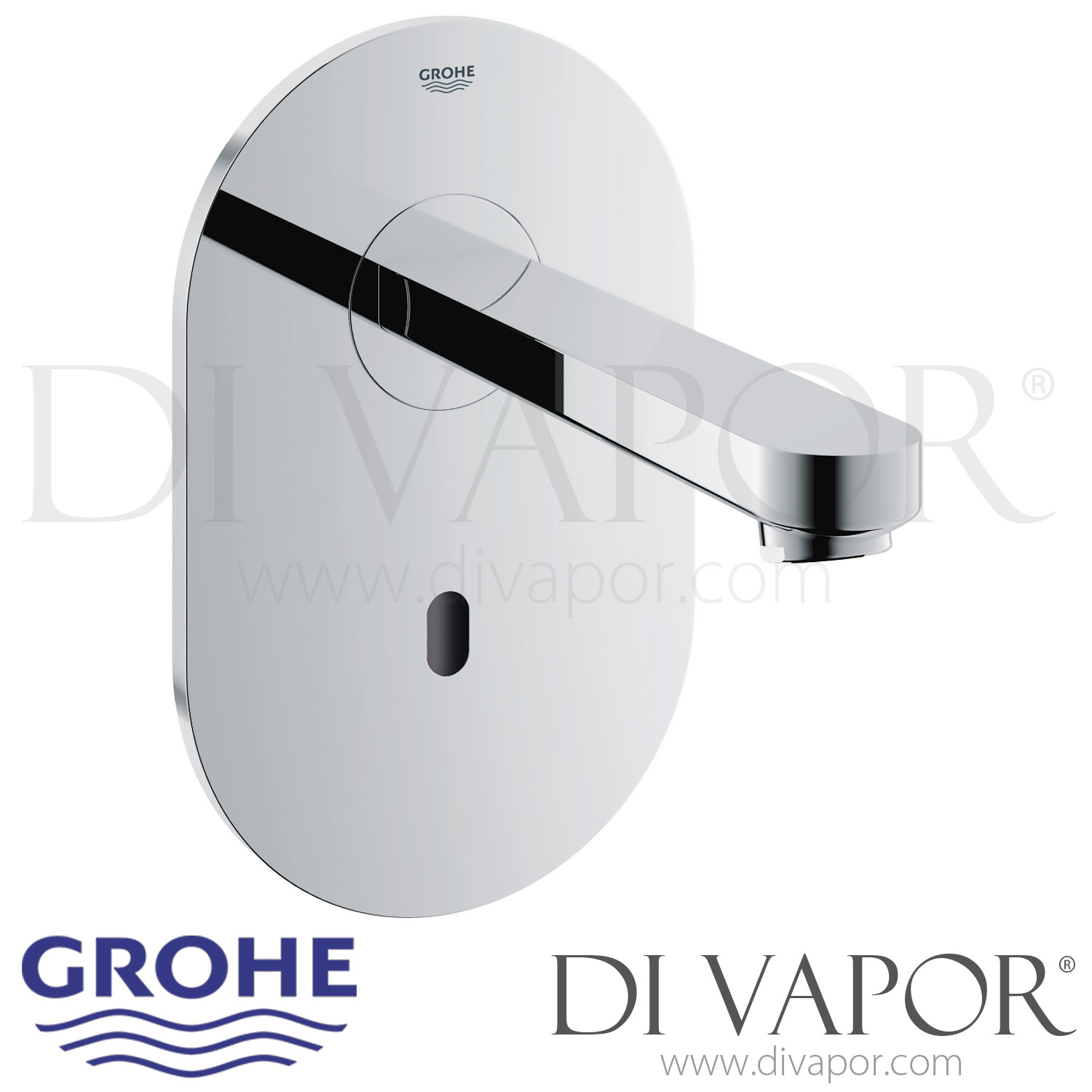

GROHE 36273000 Euroeco Cosmopolitan E is a chrome wall-mounted infra-red electronic basin tap final-installation set for cold or premixed water. It incorporates the visible spout and escutcheon and operates through a mains transformer. The tap has no integrated mixing device and requires a separate concealed mounting box.

The infra-red sensor provides touch-free operation, with bidirectional communication for monitoring, configuration and servicing. Seven pre-set programmes provide automatic flushing, thermal disinfection and cleaning-mode functions. Cleaning mode temporarily disables water flow, while an optional remote control provides additional settings.

Technical Details

- - Brand: GROHE

- - Range: Euroeco Cosmopolitan E

- - Product type: Infra-Red Electronic Wall Basin Tap without Mixing Device

- - Manufacturer code: 36273000

- - Installation: wall-mounted final-installation set

- - Finish: chrome

- - Material: brass

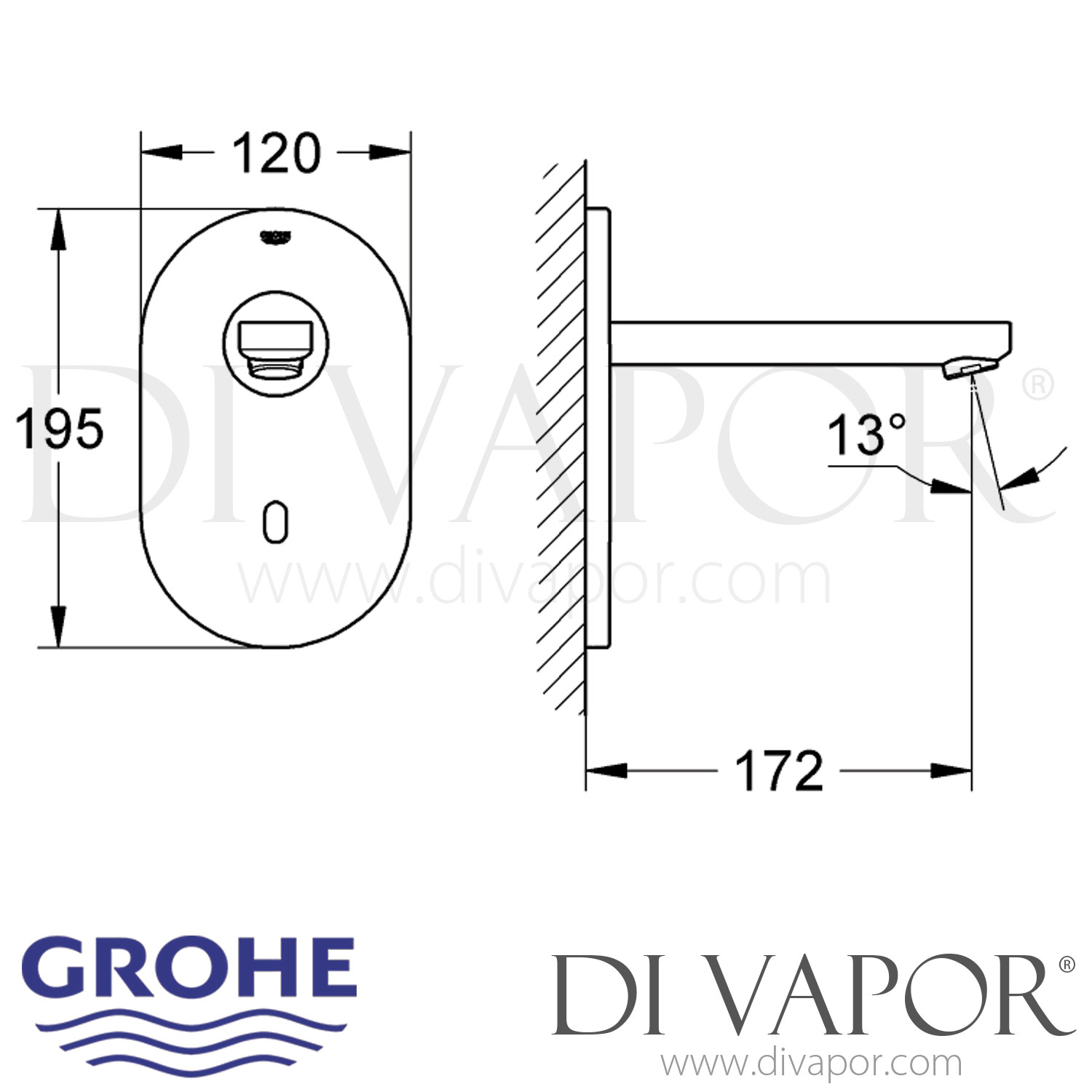

- - Spout projection: 172 mm

- - Escutcheon dimensions: 120 mm wide x 195 mm high

- - Outlet angle: 13 degrees

- - Later configuration maximum flow rate: 5 l/min at 3 bar

- - Later configuration minimum recommended pressure: 1.0 bar

- - Later configuration transformer: 100-230 V AC, 50-60 Hz, 6 V DC

Concealed Mounting Boxes

Select the mounting box for the required water-supply arrangement. These boxes are separate from the final-installation set. Do not assume that internal components interchange between earlier and later boxes.

- - GROHE 36336001 concealed mounting box with an integrated pre-adjustable thermostatic mixer

- - GROHE 36337001 concealed mounting box for cold or premixed water

- - GROHE 36336000 Eurosmart Cosmopolitan E Concealed Mounting Box Spare Parts, earlier thermostatic mounting arrangement

- - GROHE 36337000 Concealed Mounting Box, earlier cold or premixed-water arrangement

Related Spares You May Need

These component references apply to the later service arrangement. Check the installed tap revision before ordering. The battery housing and remote control are optional accessories, not standard supplied components.

- - GROHE 42419000 mounting frame

- - GROHE 42470000 switching power supply

- - GROHE 42469000 solenoid valve

- - GROHE 42445000 spout

- - GROHE 48159000 mousseur / aerator

- - GROHE 42393000 battery housing, optional accessory

- - GROHE 36407001 remote control, optional accessory for GROHE one-eye infra-red products from 06/2015

Earlier Versions and Before Ordering Checks

Earlier versions have different electrical and outlet specifications. The earlier figures below must not be combined with the later configuration above. Match the tap code, concealed mounting box, transformer label and outlet insert before selecting service parts.

- - Earlier transformer specification: 100-240 V AC, 50-60 Hz, 6.75 V DC, with 2.4 W power consumption

- - Earlier flow specification: approximately 9 l/min at 3 bar

- - Earlier outlet reference: GROHE 13960000 laminar flow straightener

- - Earlier outlet reference: GROHE 13951000 mousseur

Do not assume that the earlier outlet inserts interchange with 48159000 or that the optional remote control will operate every earlier electronic revision.

- - GROHE 36273000 GEN1 Euroeco Cosmopolitan E Wall Basin Tap Spare Parts for 2010 to 2015

Troubleshooting and Servicing

Isolate the water and disconnect the electrical supply before opening the assembly or servicing components. Flush the pipework before and after installation, then check for leaks and correct operation. Keep electrical connectors protected from water.

- - Symptom: reduced flow / Likely Cause: a dirty outlet insert or blocked filters / Solution: inspect and clean the affected components, replacing them only where necessary

- - Symptom: no water flow / Likely Cause: a blocked solenoid filter, faulty solenoid or disconnected plug-in connector / Solution: check the filter and connection before replacing the valve

- - Symptom: water flows without demand / Likely Cause: excessive sensor range, an active automatic flush or a faulty solenoid / Solution: check the settings and flushing cycle before diagnosing a valve fault

For help identifying the correct version or service part, send photographs of the tap, component markings and transformer label through the Di Vapor Find a Part service.
