Grohe 33163003 Grohe Plus Single-Lever Basin Mixer (1/2 Inch) S-Size Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spare parts for the GROHE 33163003 Plus single-lever basin mixer, a chrome S-Size basin tap designed for single-hole installation. This page covers the service components currently available for maintaining and repairing this specific GROHE Plus basin mixer.
The mixer uses a GROHE SilkMove 28 mm ceramic cartridge to control water flow and temperature, together with an integrated temperature limiter and an adjustable GROHE AquaGuide mousseur. When servicing the mixer, selecting the correct Grohe spare parts by the exact mixer code, 33163003, helps avoid ordering components intended for visually similar GROHE models.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Plus |
| Category | Basin mixer |
| Product code | 33163003 |
| Type | Single-lever basin mixer |
| Size | S-Size |
| Finish | Chrome |
| Installation | Single-hole |
| Cartridge | GROHE SilkMove 28 mm ceramic cartridge |
| Temperature control | Integrated temperature limiter |
| Outlet | GROHE AquaGuide adjustable mousseur, adjustable from 0 to 6 degrees |
| Waste | Push-open waste set, 1 1/4 inch |
| Connections | Flexible connection hoses |

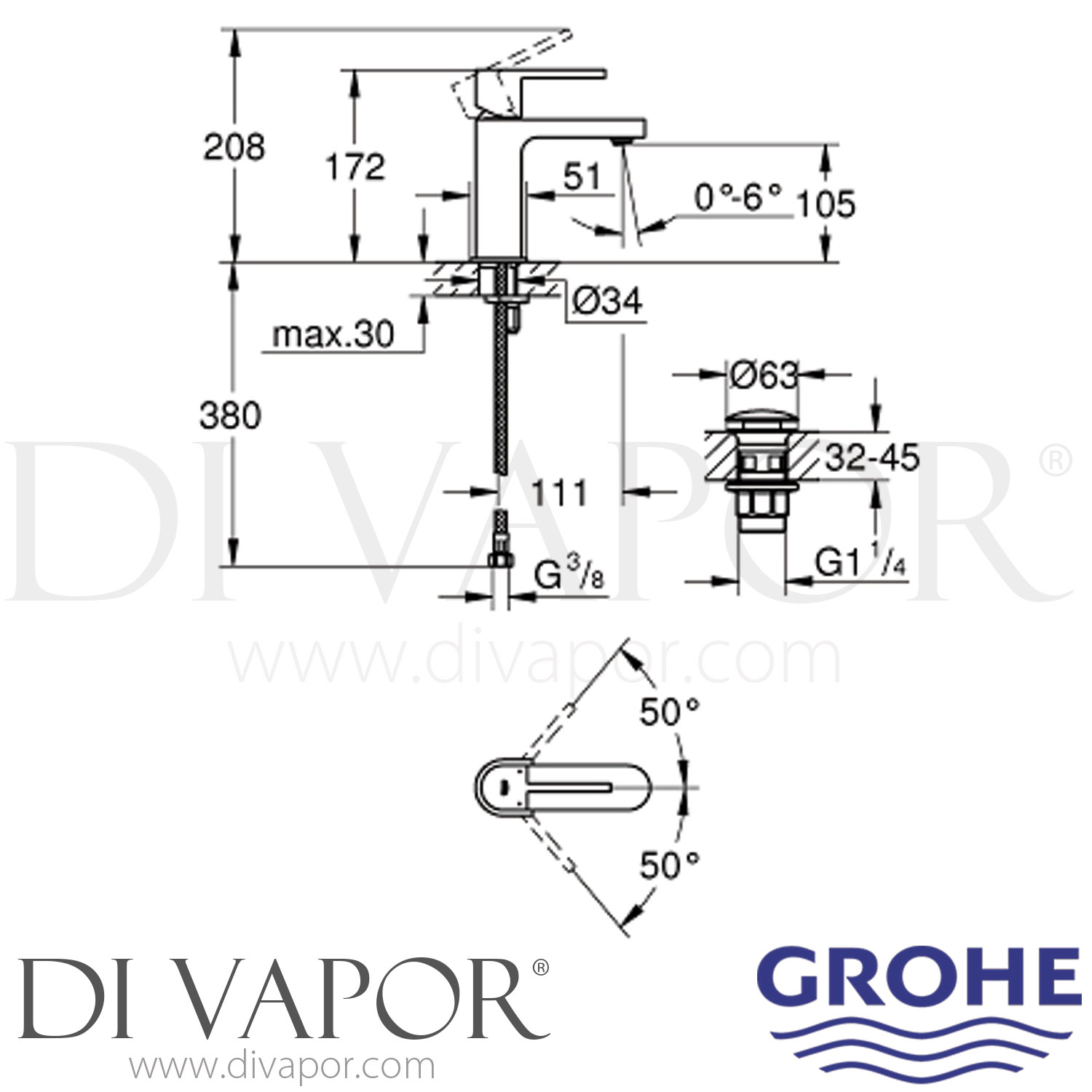

| Overall height with lever raised | 208 mm |
| Mixer height | 172 mm |
| Spout outlet height | 105 mm |
| Spout projection | 111 mm |
| Mounting hole | 34 mm diameter |
| Maximum mounting surface thickness | 30 mm |
| Flexible hose length | 380 mm |
| Flexible hose connection | G3/8 |
| Waste flange diameter | 63 mm |
| Waste outlet thread | G1 1/4 |
| EAN | 4005176529702 |
Service and Fault Checking
A persistently dripping basin mixer can indicate wear or damage within the ceramic cartridge. Before ordering, check that the mixer is marked or documented as 33163003, and compare the required spare part number with the component being removed.
GROHE 46580000 28 mm SilkMove Ceramic Cartridge with Temperature Limiter for Single-Lever MixersThis is a genuine Grohe 46580000 cartridge replacement used to replace faulty cartridges in the aforementioned valves.FAQ - - Question: My tap is constantly dripping. If I replace th...
Grohe 65807000 1.1/4in Closeable Basin WasteThe Grohe 65807000 is a 1.1/4 inch closeable basin waste finished in chrome. It is designed for use with compatible Grohe basins and taps, allowing the basin outlet to be opened or closed as required.FunctionThe waste assembly provides ...
