Grohe 23872003 Plus Basin Mixer (1/2 Inch) S-Size Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

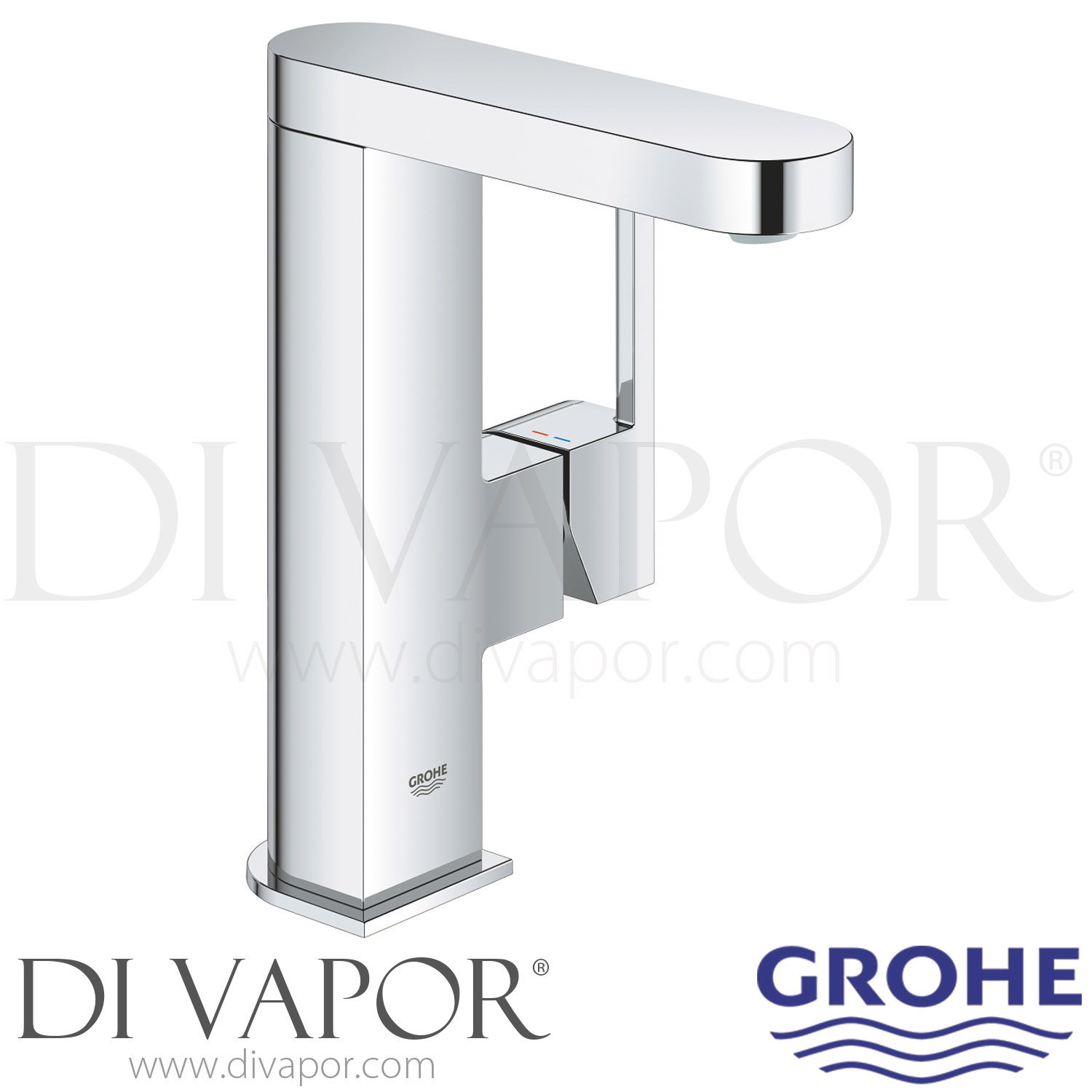

Spare parts for the Grohe 23872003 Plus single-lever basin mixer, an M-Size chrome basin tap designed for single-hole installation. The mixer uses a GROHE SilkMove 28 mm ceramic cartridge for flow and temperature control, together with an adjustable mousseur, swivel spout and push-open basin waste.

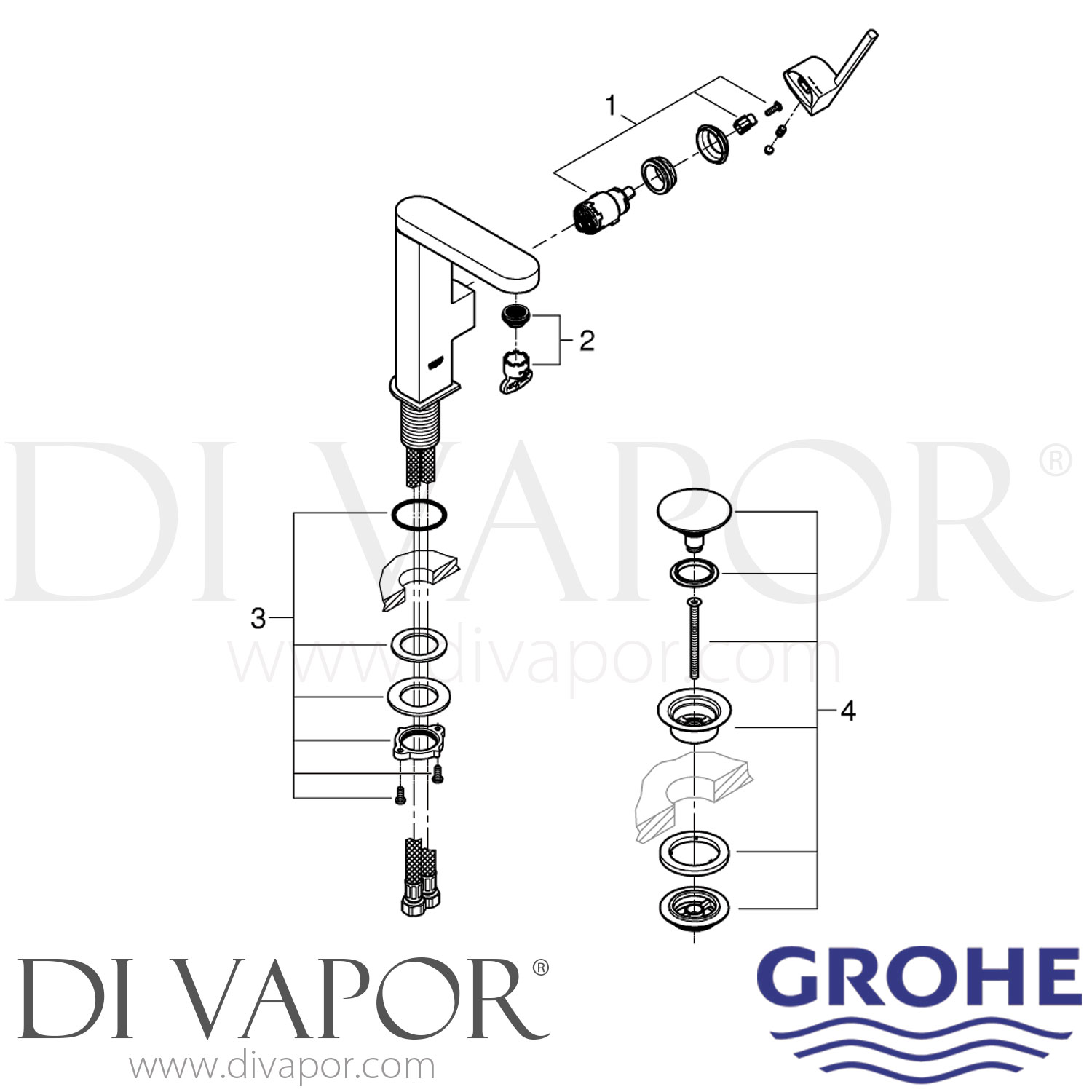

These Grohe spare parts allow key service components, including the cartridge, mounting arrangement and basin waste, to be replaced individually when servicing the 23872003 Plus basin mixer.

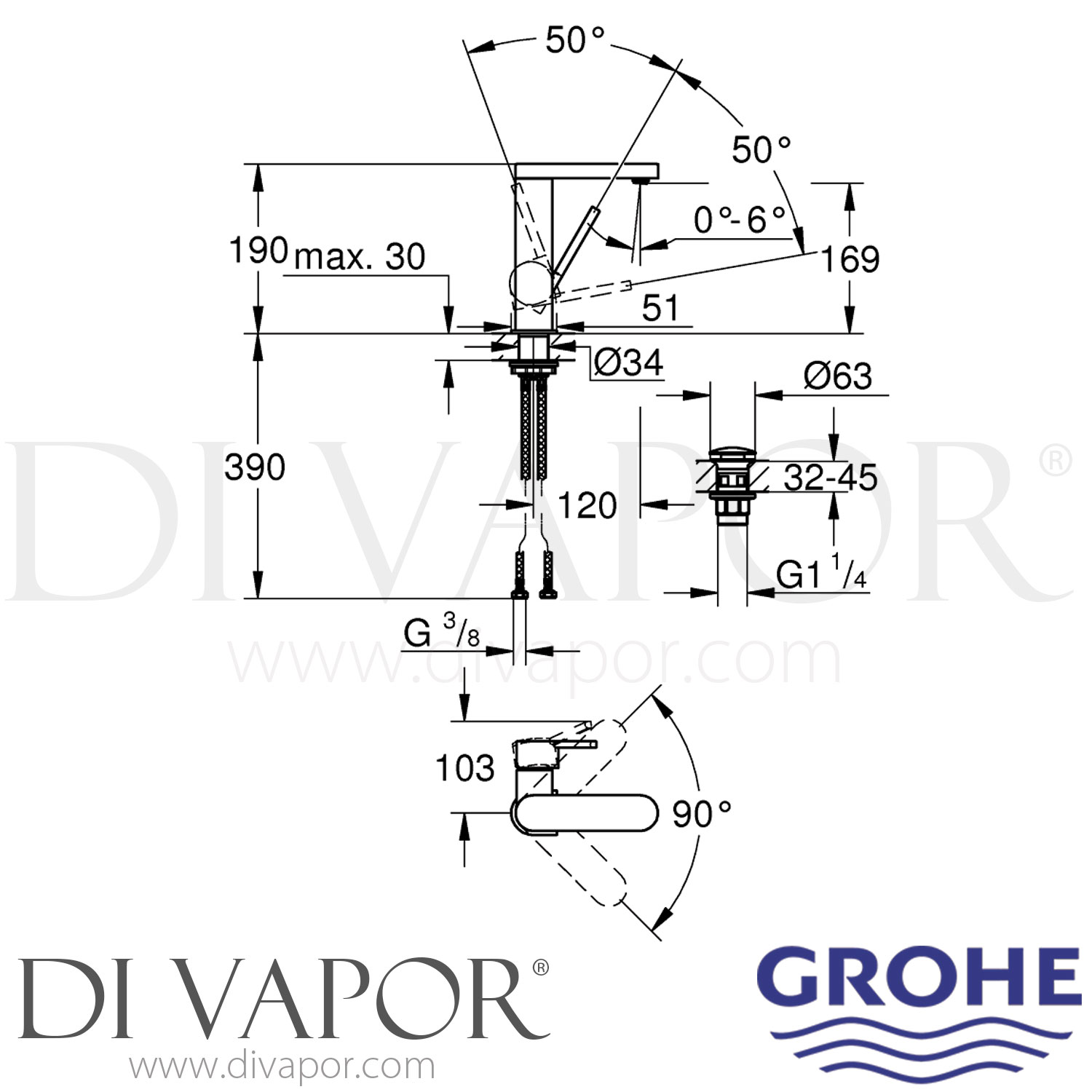

Technical Details
| Brand | GROHE |
|---|---|
| Range | Plus |
| Category | Basin mixer |
| Product code | 23872003 |
| Size | M-Size |
| Finish | Chrome |
| Installation | Single-hole installation |
| Cartridge | GROHE SilkMove 28 mm ceramic cartridge with temperature limiter |
| Flow adjustment | GROHE AquaCalibrator |
| Maximum flow rate | 5 l/min at 3 bar |
| Mousseur | GROHE SpeedClean with AquaGuide adjustment |
| Spout | Swivel spout with easy docking |
| Spout swivel range | 90 degrees |
| Overall mixer height | 190 mm |
| Spout outlet height | 169 mm |
| Spout projection | 120 mm |
| Required mounting-hole diameter | 34 mm |
| Maximum mounting-surface thickness | 30 mm |
| Flexible connection hose length | 390 mm |
| Inlet connection | G 3/8 |
| Waste | Push-open waste set 1 1/4 inch |
| Waste flange diameter | 63 mm |
| Waste clamping range | 32 mm to 45 mm |
| Waste connection | G 1 1/4 |
| EAN | 4005176529733 |
Before You Order
Check that the mixer product code is 23872003 and that the installed tap is the GROHE Plus M-Size basin mixer. Visually similar GROHE Plus basin mixers can use different service components, so compare the existing part with the replacement before ordering.
GROHE 46963000 28mm SilkMove Ceramic Cartridge for Single-Lever MixersGROHE 46963000 is a 28mm SilkMove ceramic cartridge used as the main mixed-water control cartridge in selected GROHE single-lever kitchen taps, sink mixers, basin mixers and Blue Pure filtered-water taps. The c...
Grohe 65807000 1.1/4in Closeable Basin WasteThe Grohe 65807000 is a 1.1/4 inch closeable basin waste finished in chrome. It is designed for use with compatible Grohe basins and taps, allowing the basin outlet to be opened or closed as required.FunctionThe waste assembly provides ...
