Grohe 23871003 Plus Basin Mixer Bathroom Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

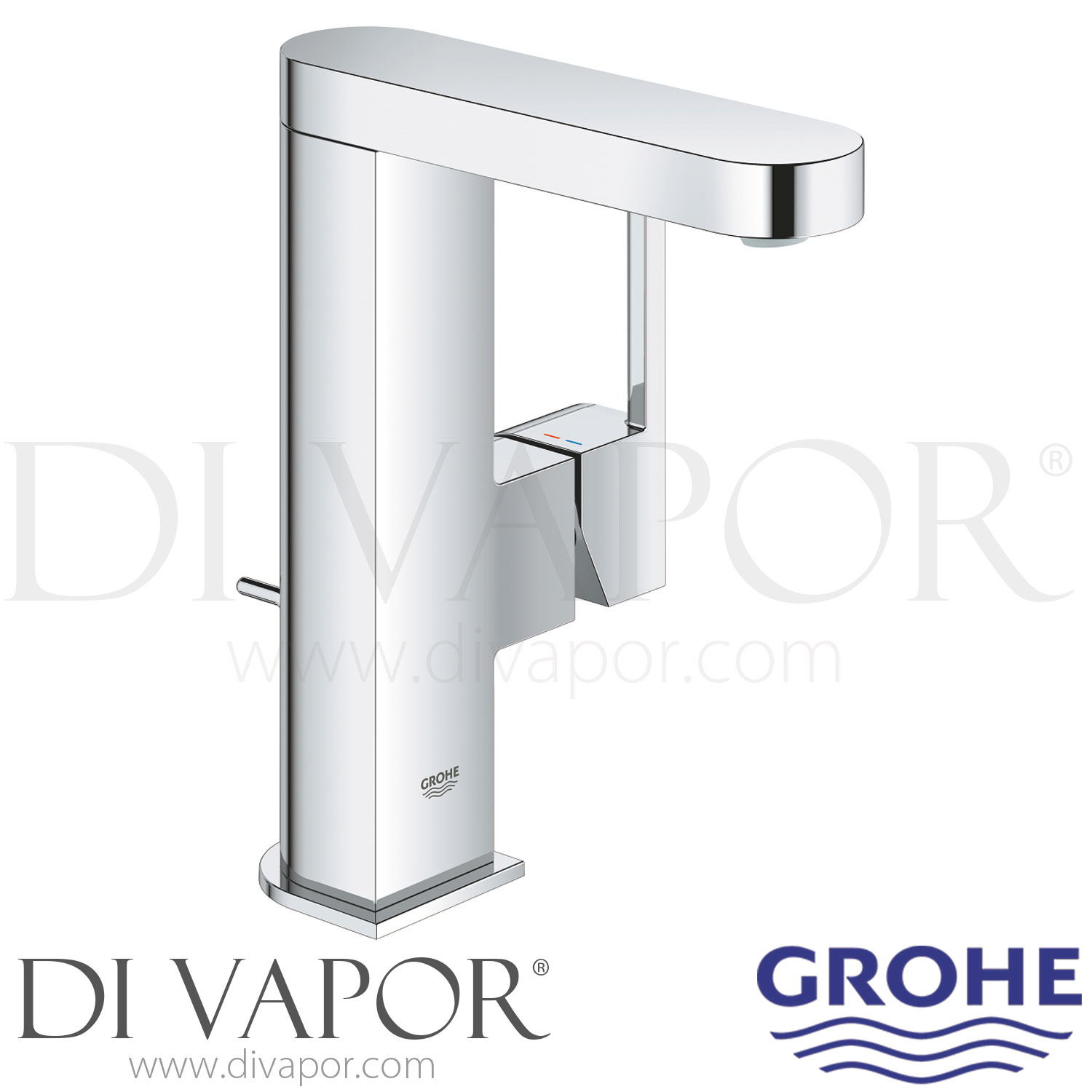

Spares for Grohe 23871003 Plus Basin Mixer
The GROHE 23871003 Plus is a single lever M-Size basin mixer designed for single-hole bathroom basin installation. Finished in chrome, it combines a 28 mm ceramic cartridge, swivel spout and pop-up waste arrangement in the GROHE Plus range.

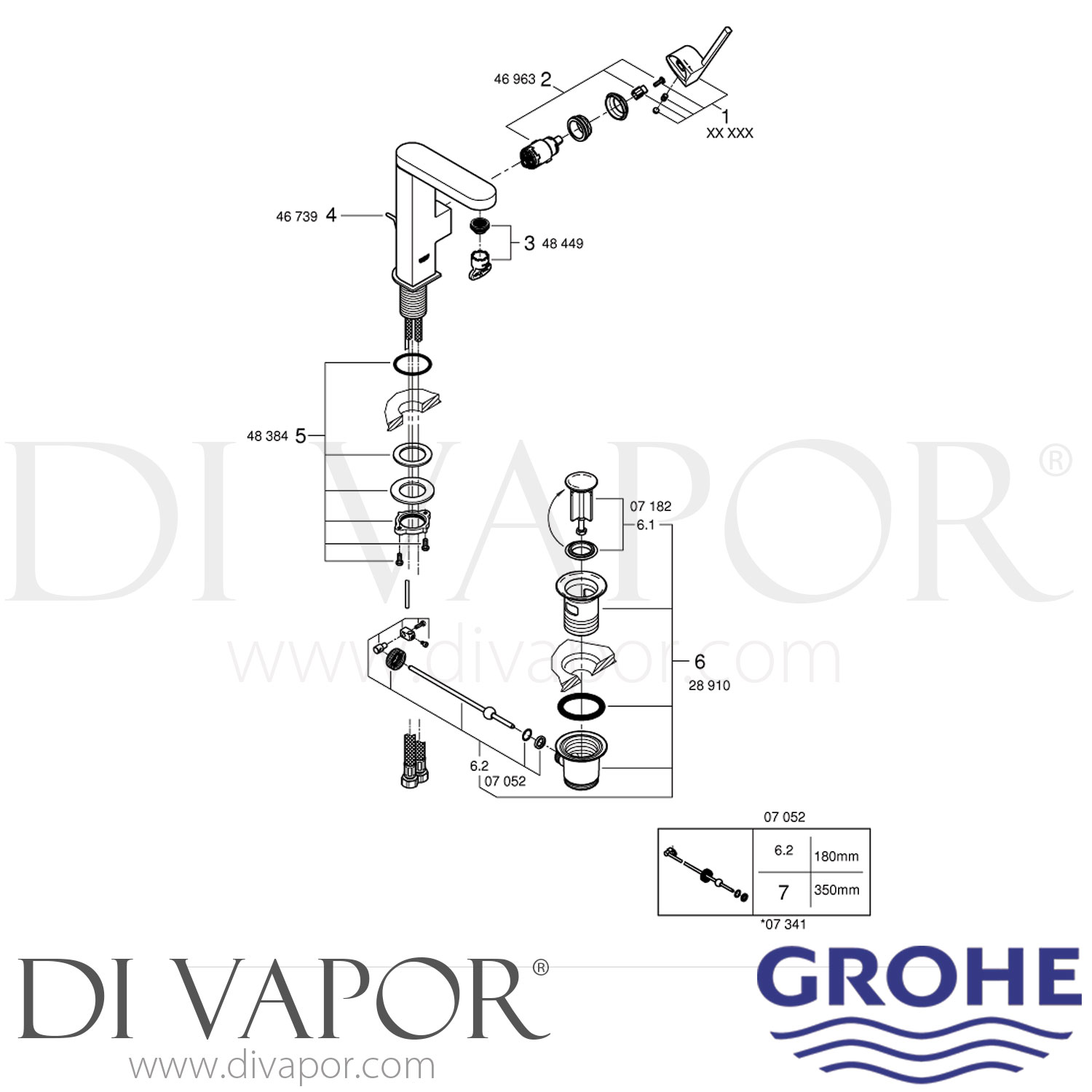

For servicing and repair, the Grohe spare parts listed below cover key working and installation components used within this basin mixer, including the ceramic cartridge, mounting assembly and waste operating rods.

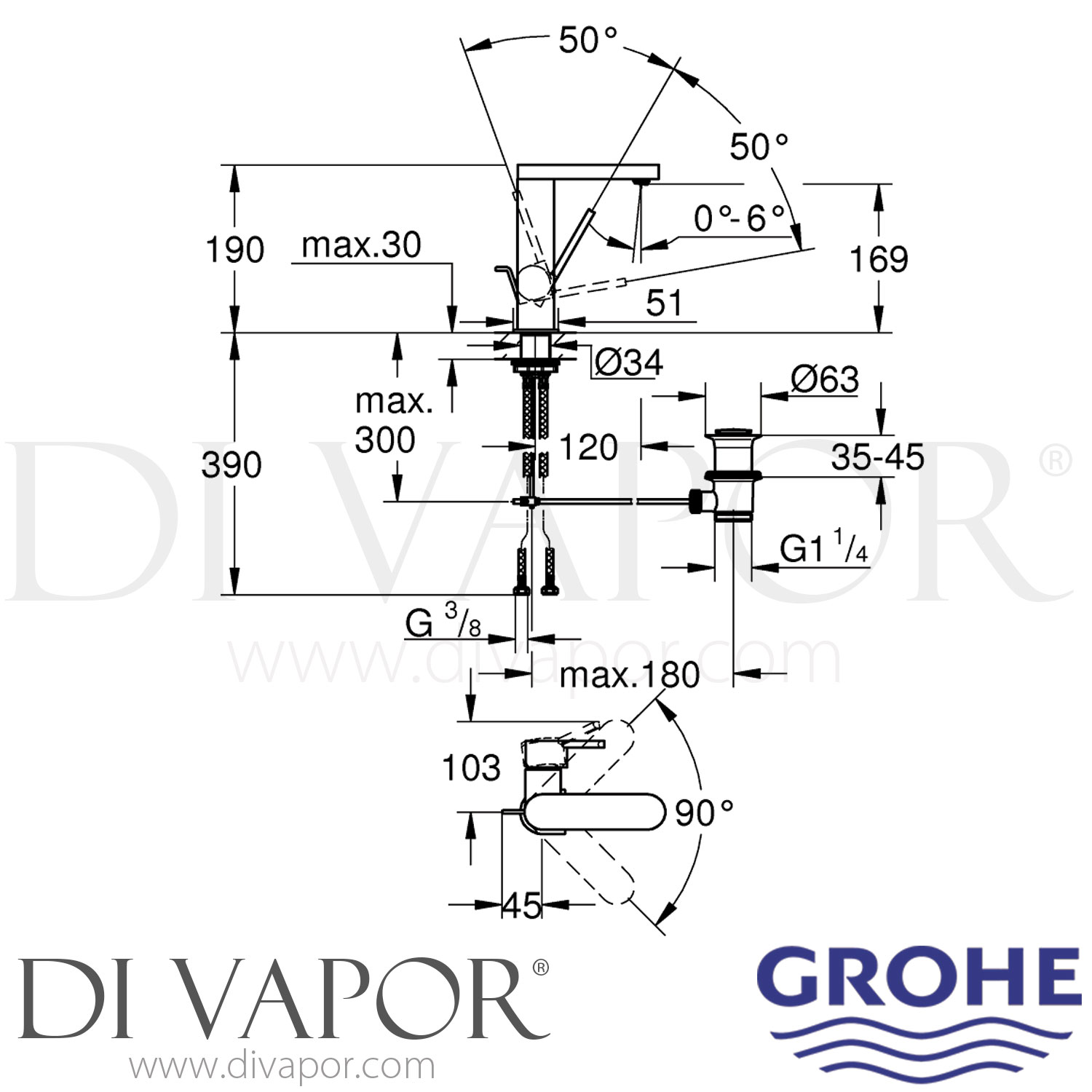

Technical Details
| Brand | GROHE |
|---|---|
| Range | Plus |
| Category | Basin mixer |
| Product code | 23871003 |
| Size | M-Size |
| Installation | Single-hole basin installation |
| Operation | Single lever |
| Finish | Chrome |
| Cartridge | GROHE SilkMove 28 mm ceramic cartridge |
| Temperature limiter | Included |
| Maximum flow rate | 5 l/min at 3 bar |
| Spout | Swivel spout with 90 degree swivel range |
| Outlet | GROHE AquaGuide adjustable mousseur with GROHE SpeedClean |
| Waste | Pop-up waste set, 1 1/4 inch |
| Connections | Flexible connection hoses, G3/8 |
| Overall height | 190 mm |
| Spout projection | 120 mm |
| Spout outlet height | 169 mm |
| Mounting opening | 34 mm diameter |
| Maximum mounting thickness shown | 30 mm |
| EAN | 4005176529726 |
GROHE 46963000 28mm SilkMove Ceramic Cartridge for Single-Lever MixersGROHE 46963000 is a 28mm SilkMove ceramic cartridge used as the main mixed-water control cartridge in selected GROHE single-lever kitchen taps, sink mixers, basin mixers and Blue Pure filtered-water taps. The c...
Grohe 07052000 Horizontal Rod for PUW Basin MixerThe Grohe 07052000 is a horizontal operating rod used in PUW basin mixer installations. It links the mixer control mechanism to the basin waste assembly, enabling opening and closing of the waste via the tap control.FunctionThe rod...
