Grohe 23752000 BauFlow Single-Lever Basin Mixer S-Size Tap Spare Parts

SUMMARY

Spares for Grohe 23752000 BauFlow Single-Lever Basin Mixer S-Size Tap

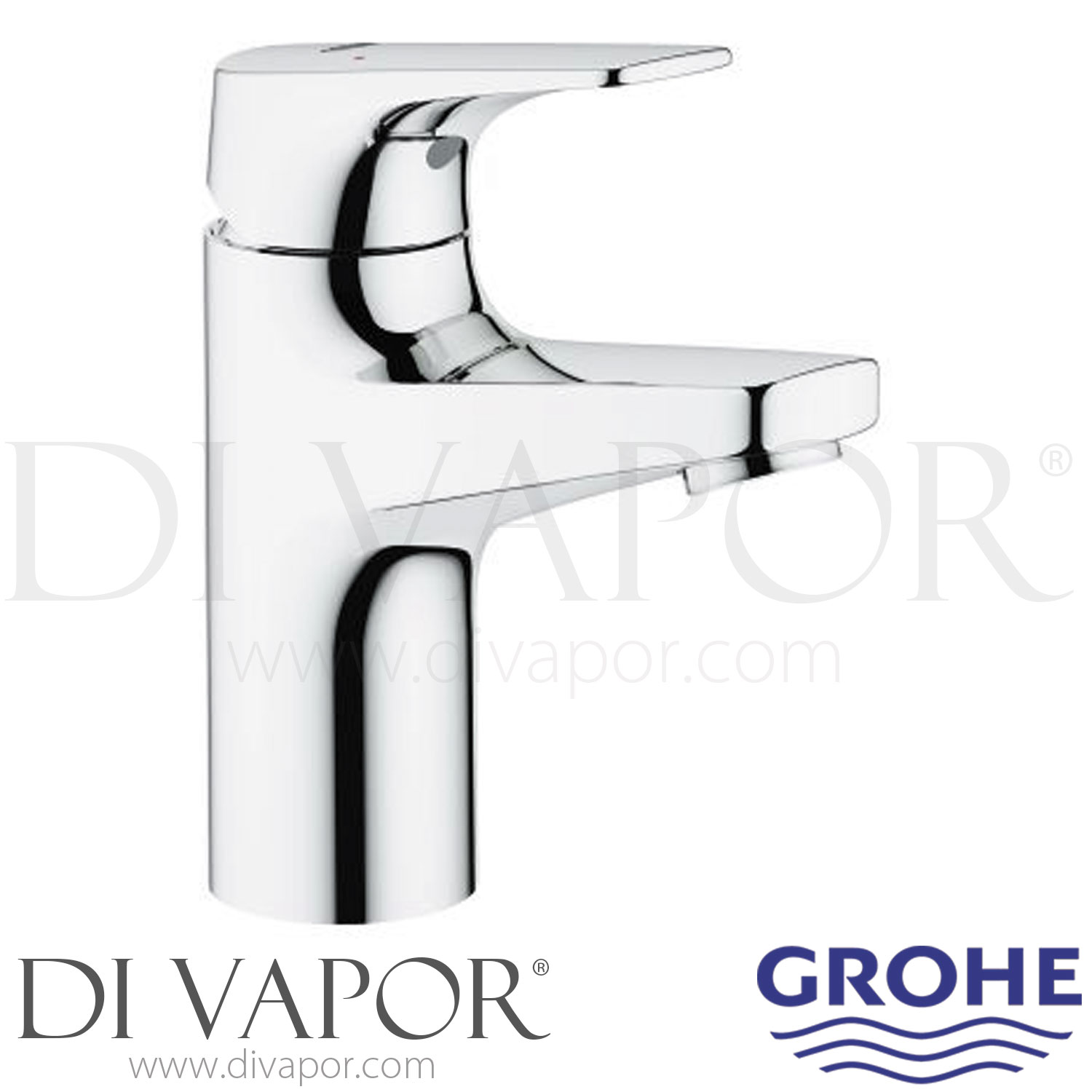

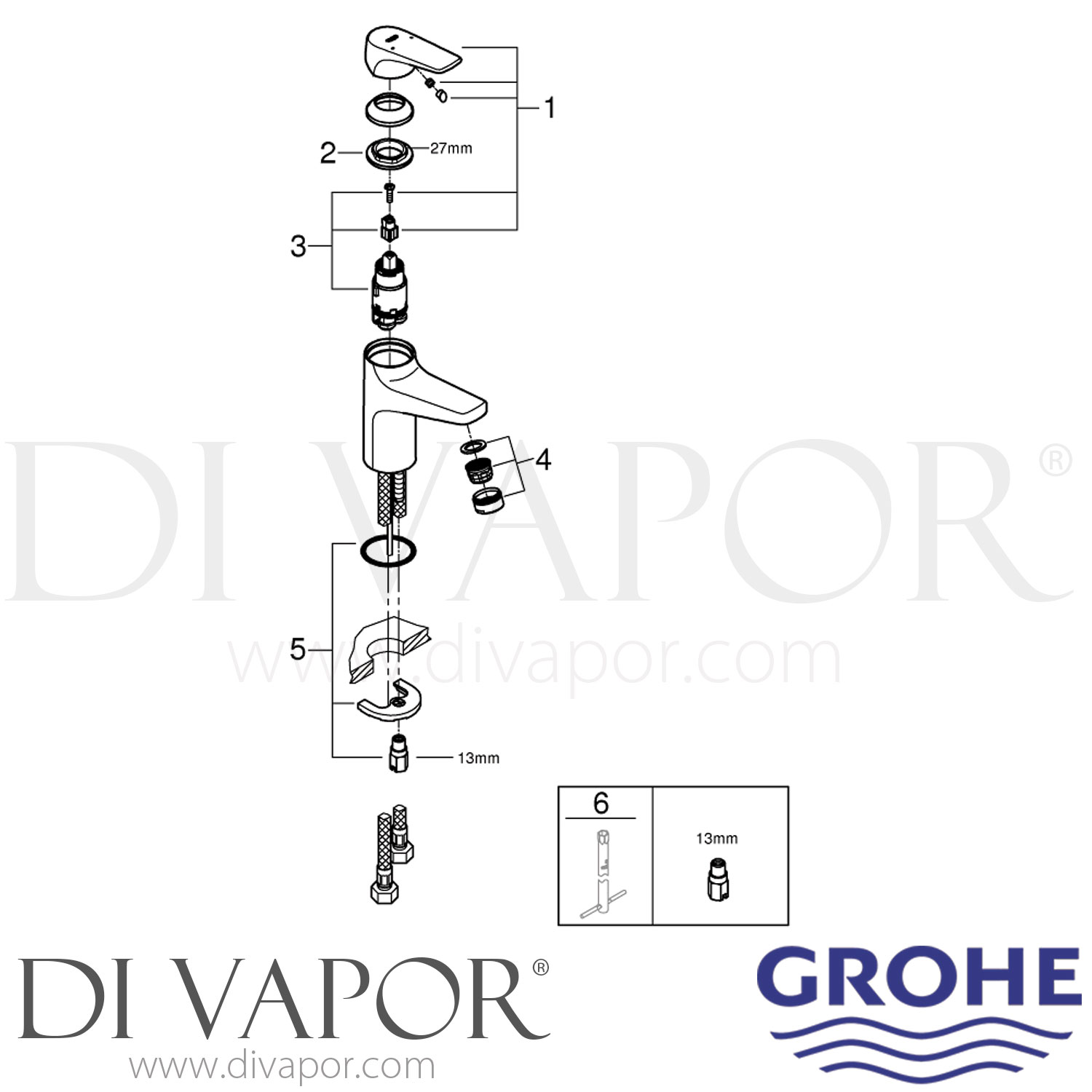

The Grohe 23752000 is a BauFlow S-Size single-lever basin mixer with a smooth body and chrome finish, designed for monobloc installation on a wash basin. This page identifies the Grohe spare parts currently available for servicing the 23752000 basin mixer.

The mixer uses a 28 mm ceramic cartridge to control water flow and temperature through the single lever. If the tap begins dripping from the spout when turned off, wear within the ceramic cartridge is one of the key service points to inspect. The mounting bracket secures the mixer beneath the basin and may require replacement if the existing fixing is damaged, missing or no longer holds the tap securely.

Technical Details

- - Brand: Grohe

- - Range: BauFlow

- - Category: Basin mixer

- - Product code: 23752000

- - Size: S-Size

- - Operation: Single lever

- - Body: Smooth body

- - Finish: Chrome

- - Cartridge: 28 mm ceramic cartridge

- - Installation: Monobloc basin mounting with flexible connection hoses

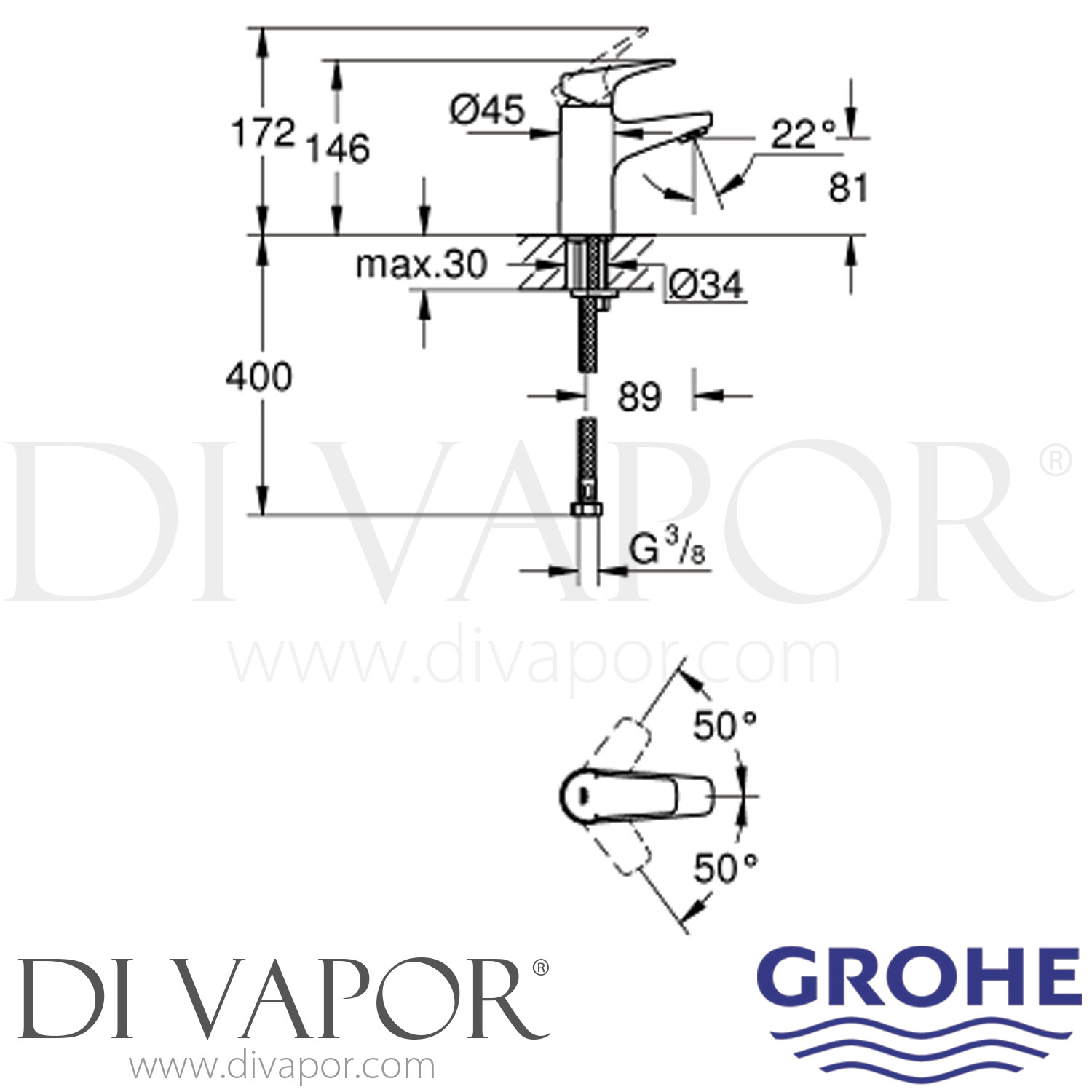

- - Overall height: 172 mm

- - Spout outlet height: 81 mm

- - Spout reach: 89 mm

- - Base diameter: 45 mm

- - Maximum mounting surface thickness: 30 mm

- - Flexible connection hose length: 400 mm

- - Water connections: G3/8

- - EAN: 4005176388156

Before Ordering

- - Check that the basin mixer product code is 23752000, as other BauFlow models use different product codes and may require different spare parts

- - Match the part number of the component being replaced wherever possible before ordering
