Grohe 23751000 BauFlow Single-Lever Basin Mixer S-Size Tap Spare Parts

SUMMARY

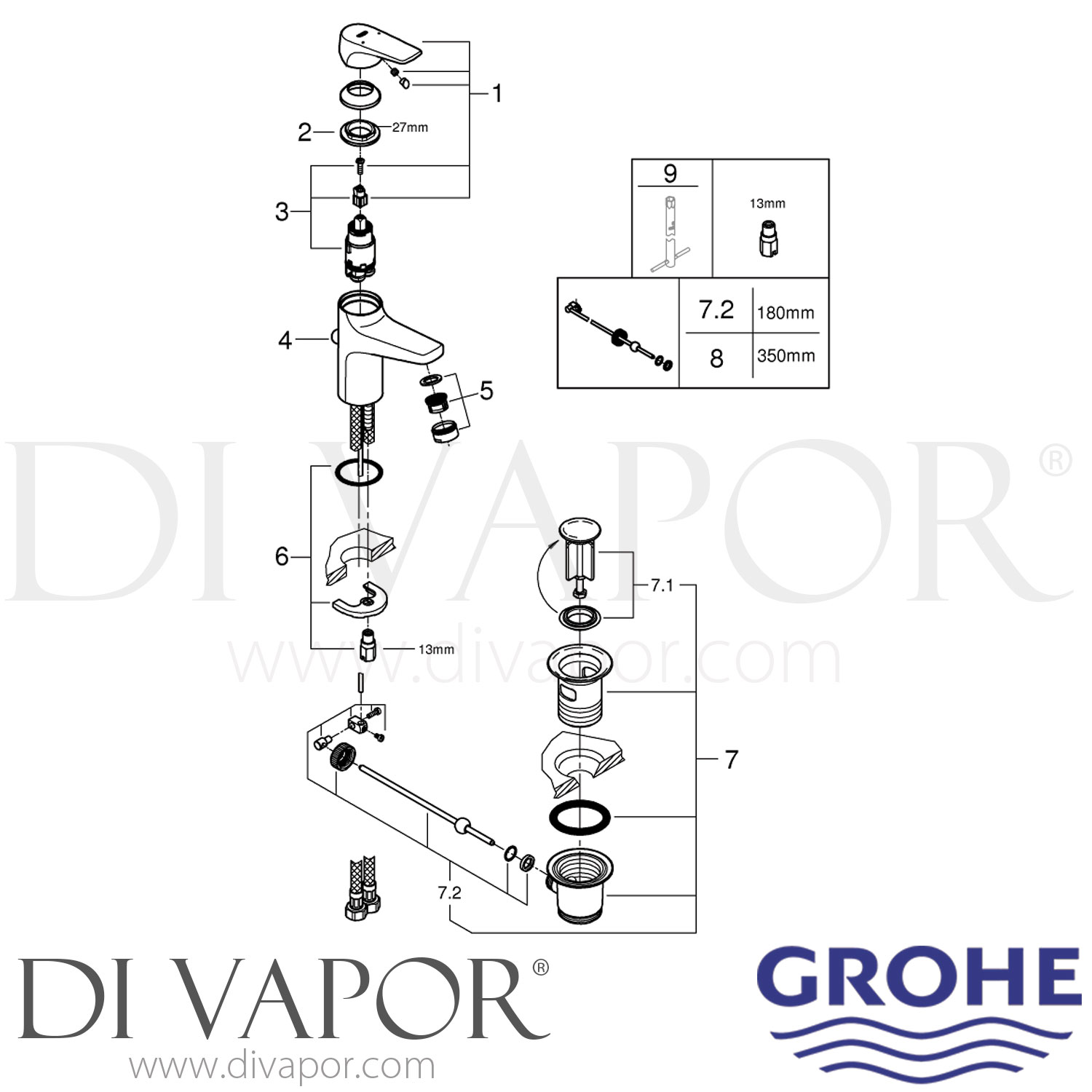

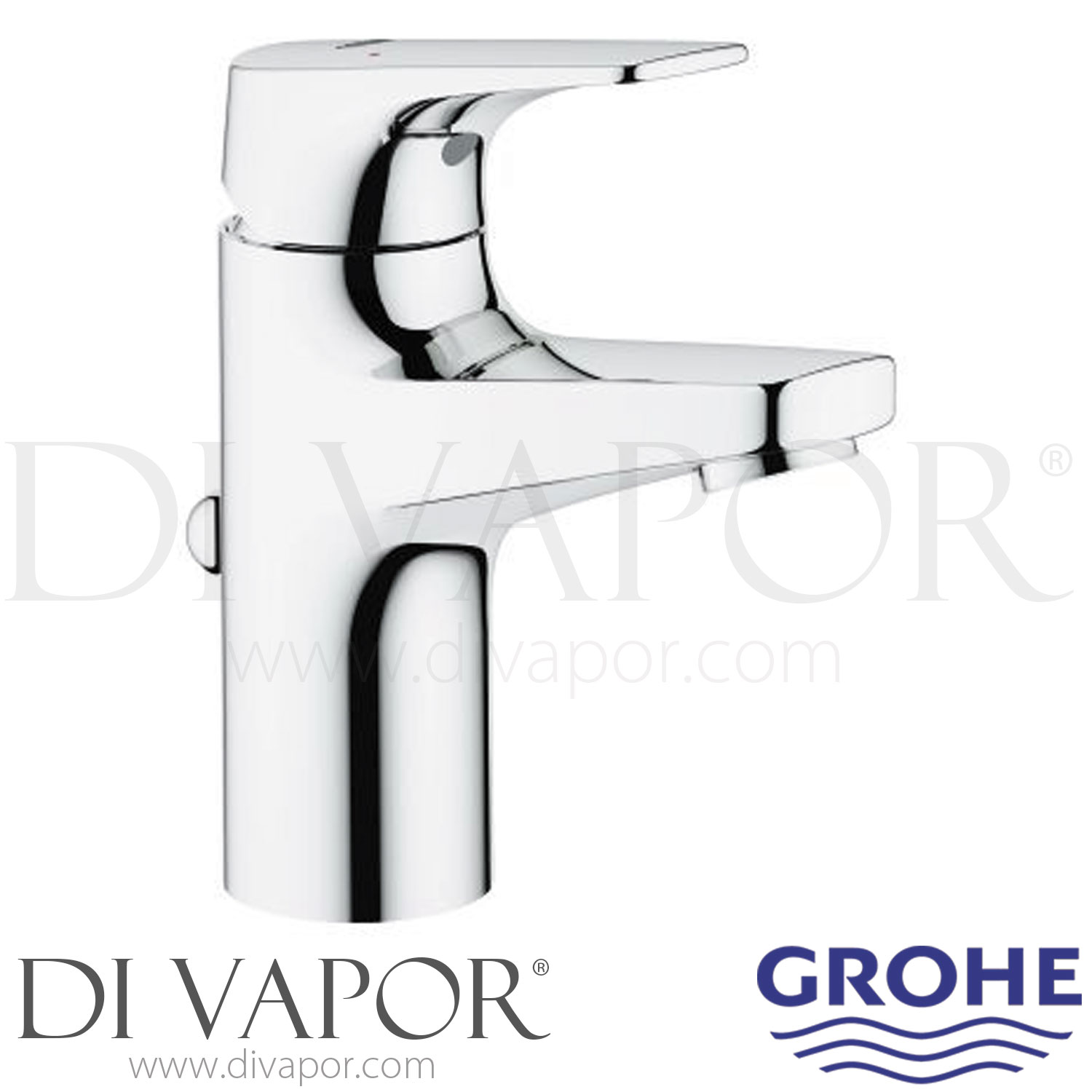

Spare parts for the Grohe 23751000 BauFlow single-lever basin mixer, an S-Size deck-mounted bathroom basin tap with a chrome finish and pop-up waste set. This page helps identify the correct Grohe spare parts used to service the mixer, including the ceramic cartridge, mounting hardware and waste operating rods.

The mixer uses a 28 mm ceramic cartridge to control water flow and temperature through the single lever. A worn cartridge can cause dripping from the spout when the tap is turned off, poor shut-off or stiff lever operation. The mounting kit secures the mixer to the basin, while the horizontal rods form part of the mechanical linkage used to operate the pop-up waste.

Technical Details

- - Brand: Grohe

- - Range: BauFlow

- - Category: Basin mixer

- - Product number: 23751000

- - Size: S-Size

- - Control: Single lever

- - Finish: Chrome

- - Cartridge: 28 mm ceramic cartridge

- - Maximum flow rate: 5 l/min at 3 bar

- - Waste: Plastic pop-up waste set, 1 1/4 inch

- - Connections: Flexible connection hoses

- - Installation: Rapid installation system

- - Spout projection: 90 mm

- - Spout height: 84 mm

- - Overall height: 170 mm

- - Main body diameter: 45 mm

- - Mounting opening diameter: 34 mm

- - Maximum deck thickness: 30 mm

- - Supply connection: G3/8

- - EAN: 4005176388149

Before You Order

Check the product number on the original mixer documentation where possible and compare the required component with the existing part before ordering. In particular, confirm whether you require the cartridge, mixer mounting hardware or a component from the pop-up waste linkage.
