Grohe 23718003 Eurostyle Chrome Single-Lever Basin Mixer Tap L-Size Spare Parts

SUMMARY

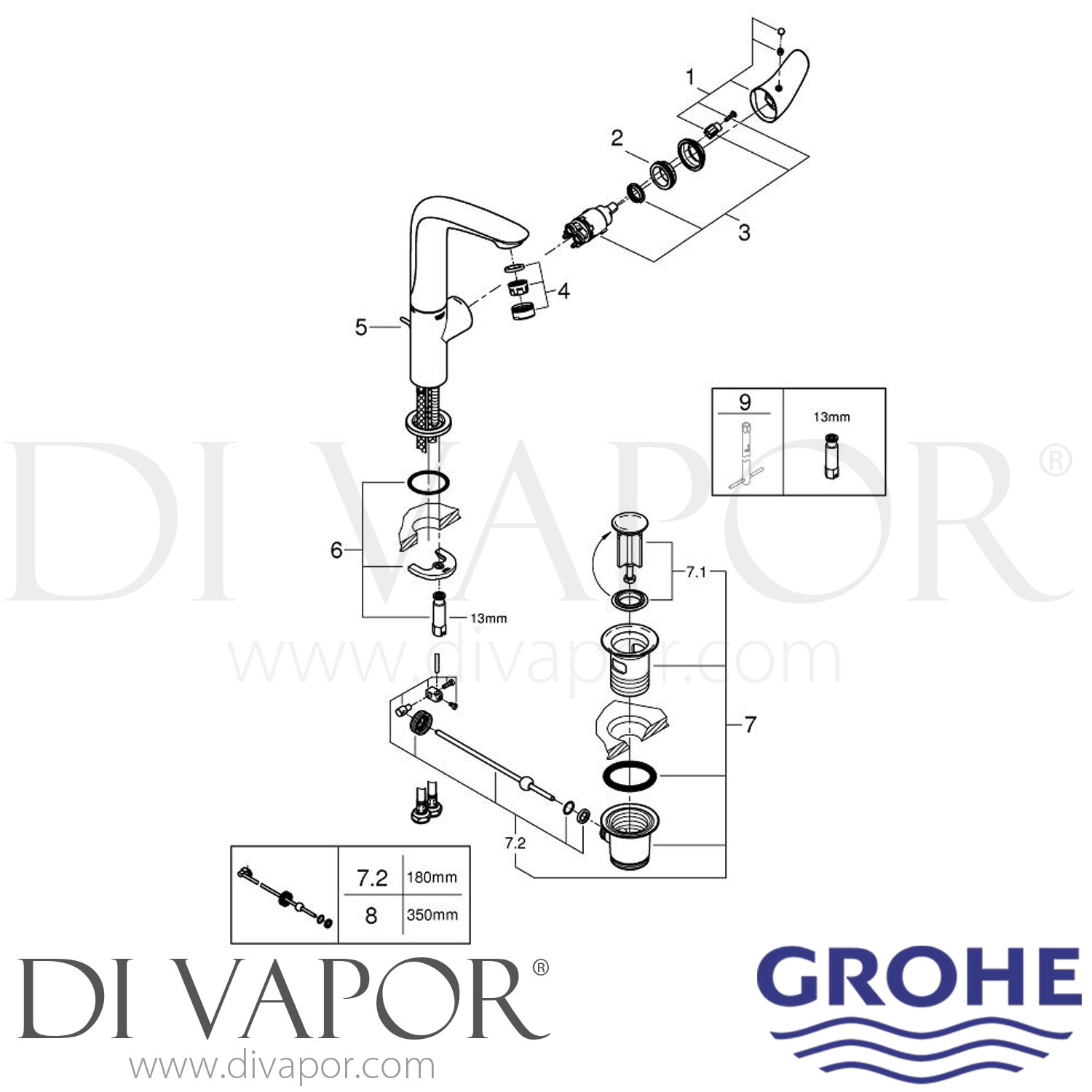

Spares for Grohe 23718003 Eurostyle Chrome Single-Lever Basin Mixer Tap L-Size

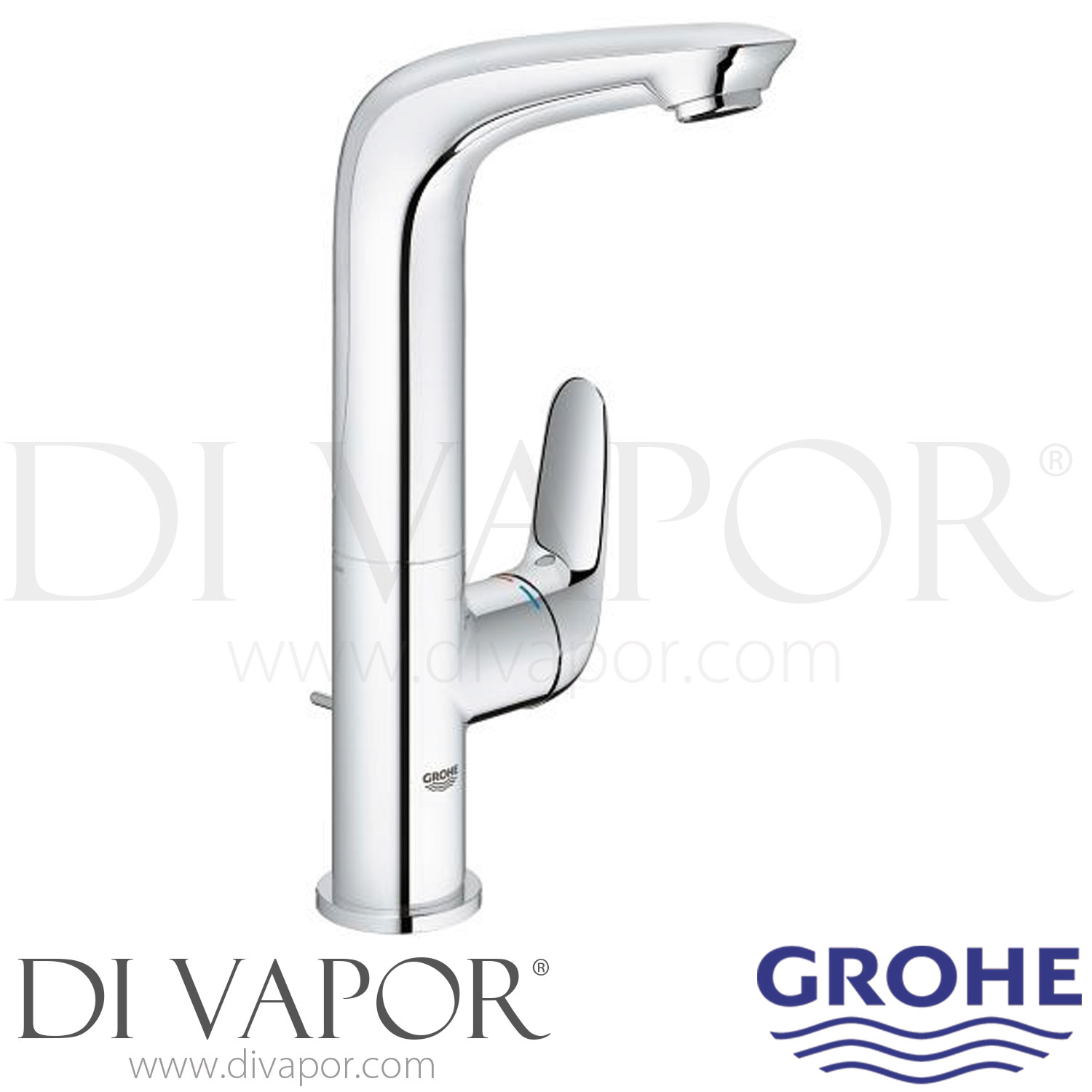

The Grohe 23718003 Eurostyle is a chrome L-Size single-lever basin mixer for monobloc basin installation. It combines single-lever flow and temperature control with a cast swivel spout, a pop-up waste assembly and flexible connection hoses.

The mixer uses a 28 mm Grohe SilkMove ceramic cartridge with temperature limiter. The cartridge controls the mixed water supply through the lever, and a common sign that it may require attention is water dripping from the spout when the tap is turned off. Grohe tap spare parts for this mixer are listed below to help identify the correct service components.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle

- - Category: Basin mixer

- - Model: 23718003

- - Size: L-Size

- - Finish: Chrome

- - Installation: Monobloc basin installation

- - Control: Single lever

- - Cartridge: 28 mm Grohe SilkMove ceramic cartridge with temperature limiter

- - Spout: Cast swivel spout with 360-degree swivel area

- - Waste: Pop-up waste set 1 1/4 inch

- - Overall height: 270 mm

- - Spout outlet height: 245 mm

- - Spout reach: 127 mm

- - Base diameter: 50 mm

- - Mounting hole diameter: 34 mm

- - Maximum basin or worktop thickness: 30 mm

- - Flexible connection size: G 3/8

- - EAN: 4005176365096

Before You Order Check

Confirm that the basin mixer model is 23718003 before ordering a spare. The 07341000 is the optional 350 mm horizontal waste rod, so compare the required linkage length with the existing installation before ordering.
