Grohe 23657000 Eurocube Joy Single-Lever Basin Mixer (1/​2 Inch) M-Size Spare Parts

SUMMARY

Spares for Grohe 23657000 Eurocube Joy Single-Lever Basin Mixer 1/2 Inch M-Size

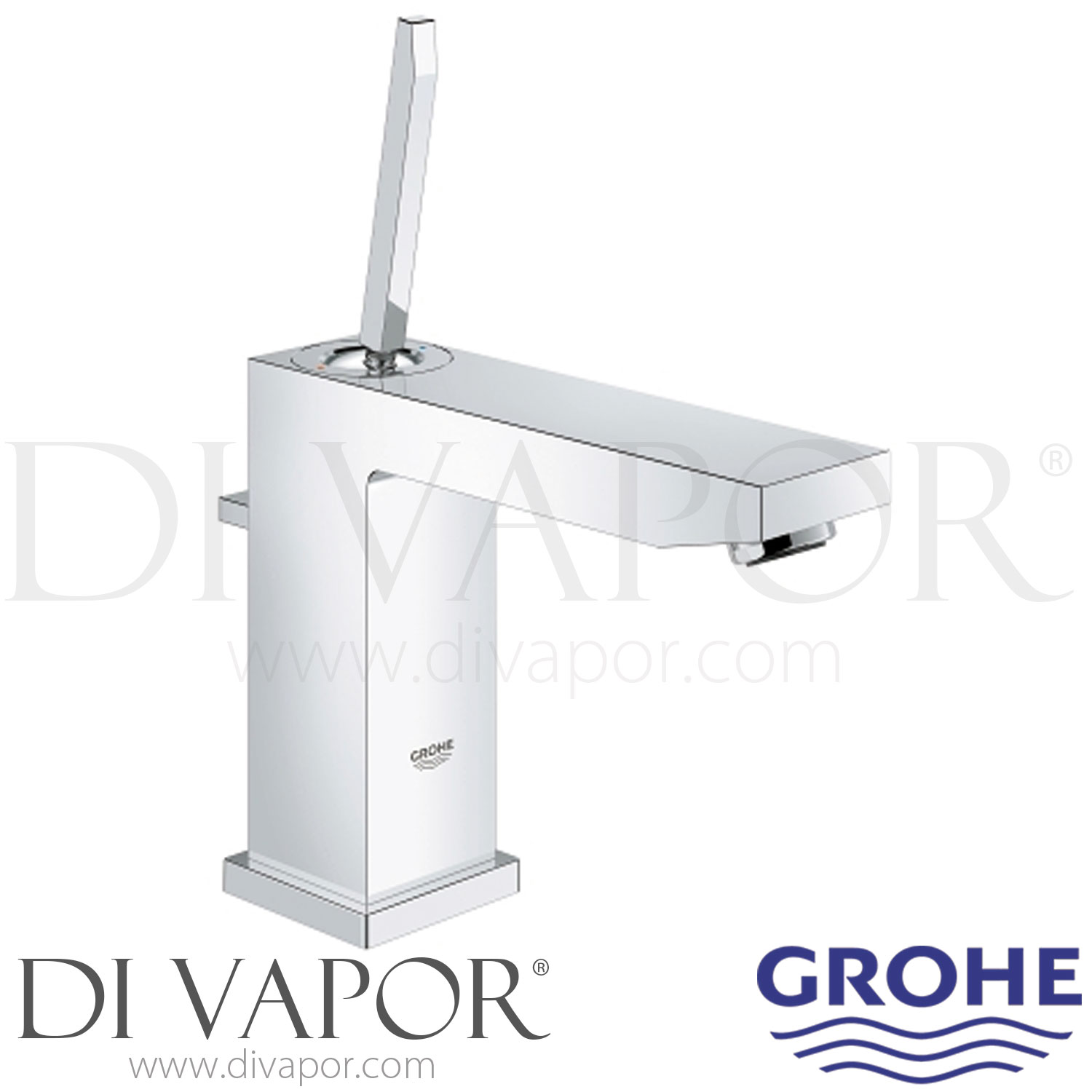

The Grohe 23657000 Eurocube Joy is a chrome single-lever basin mixer in the 1/2 inch M-Size configuration, designed for single-hole deck mounting. It has a fixed spout, a metal joystick lever, flexible connection hoses, and a mechanical pop-up waste set.

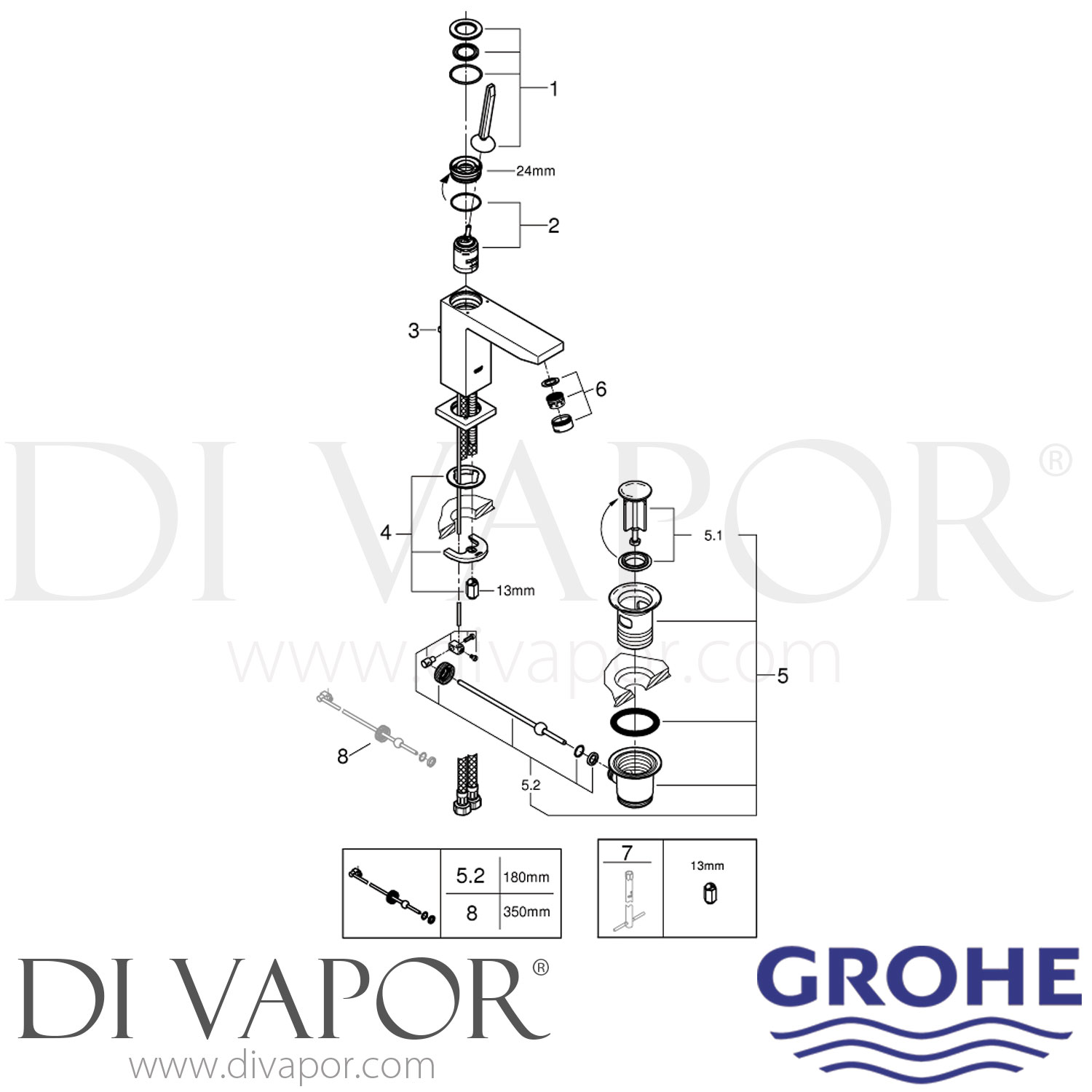

The available Grohe spare parts cover the ceramic joystick cartridge and the basin waste-control linkage, helping to restore smooth lever movement, accurate flow and temperature control, and reliable opening and closing of the basin waste. The mixer uses the 29 mm Grohe 46907000 ceramic joystick cartridge to regulate mixed-water flow and temperature. Cartridge wear can cause stiff or erratic joystick movement, reduced control, or water dripping from the spout after the tap has been turned off.

Technical Details

- - Brand: Grohe

- - Range: Eurocube Joy

- - Category: Basin mixer

- - Product code: 23657000

- - Size designation: 1/2 inch M-Size

- - Installation: Single-hole deck-mounted basin mixer

- - Finish: Chrome

- - Lever: Metal joystick lever

- - Spout: Fixed, with a 133 mm reach and 110 mm outlet height

- - Overall mixer height: 215 mm

- - Outlet angle: 15 degrees

- - Mixer base: 52 mm square

- - Required mounting hole: 34 mm diameter

- - Maximum mounting-surface thickness: 30 mm

- - Flexible connection hoses: 390 mm long, with G3/8 connections

- - Cartridge: Grohe 46907000 29 mm ceramic joystick cartridge

- - Waste: Mechanical pop-up waste set, 1 1/4 inch

- - Waste outlet connection: G1 1/4

- - EAN: 4005176342110

Before You Order

Check the mixer code 23657000 and the required spare part code against the existing component before ordering. For waste-linkage repairs, confirm whether the standard 07052000 rod or the optional 07341000 350 mm rod is required, as these are alternative lengths rather than components that should automatically be ordered together.

Installation Note

Isolate the hot and cold water supplies before servicing the mixer. Apply a light coating of suitable silicone grease to the cartridge O-rings, avoid excess grease, and check that the waste linkage travels fully in both directions after adjustment.
