Grohe 23656000 Eurocube Joy Single-Lever Basin Mixer (1/2 Inch) S-Size Spare Parts
SUMMARY
Spares for Grohe 23656000 Eurocube Joy Single-Lever Basin Mixer 1/2 Inch S-Size

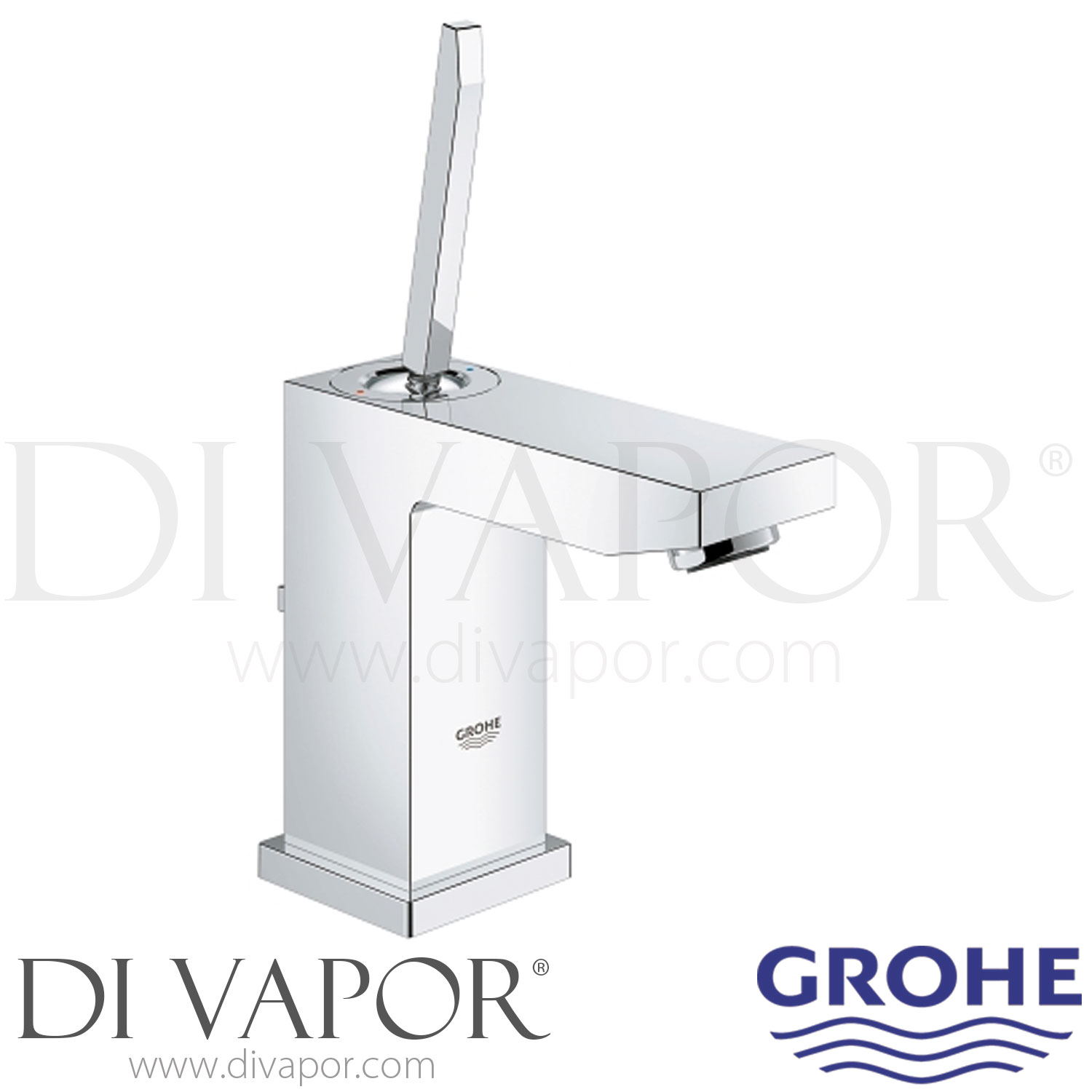

The GROHE 23656000 Eurocube Joy is a chrome S-size single-lever basin mixer for single-hole washbasin installation. This smooth-body model is supplied without a pop-up waste linkage and uses joystick control to regulate water flow and temperature.

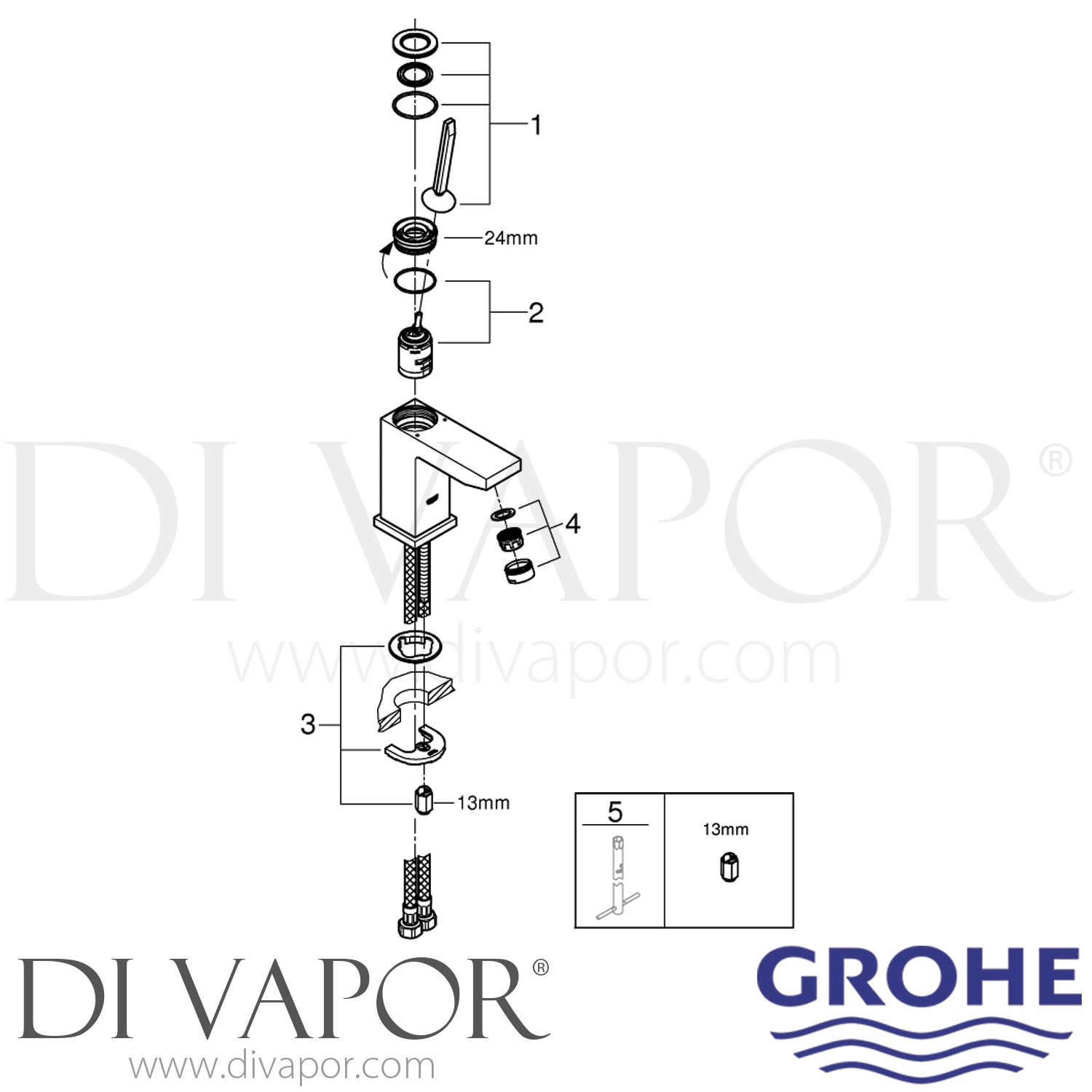

This page brings together Grohe spare parts for servicing the exact 23656000 mixer. GROHE FeatherControl operation, a SpeedClean mousseur and the QuickFix Plus mounting system are built into the original tap design, while the serviceable 29 mm ceramic joystick cartridge supports repair of the main control mechanism.
Technical Details
- - Brand: GROHE
- - Range: Eurocube Joy
- - Category: Basin mixer
- - Product code: 23656000
- - Product type: S-size single-lever basin mixer with smooth body
- - Manufacturer size designation: DN 15 / 1/2 inch
- - Finish: Chrome
- - Installation: Single-hole deck-mounted washbasin installation
- - Cartridge type: 29 mm ceramic joystick cartridge
- - Overall height: 200 mm
- - Spout projection: 98 mm
- - Outlet height: 94 mm
- - Square body and base width: 52 mm
- - Required tap hole: 34 mm diameter
- - Maximum mounting surface thickness: 30 mm
- - Flexible hose length: 390 mm
- - Flexible hose connections: G3/8
- - Outlet angle: 15 degrees
- - Flow rate: 5.7 litres per minute at 3 bar
- - EAN: 4005176342103
Common Cartridge Faults
- - Water dripping from the spout when the tap is fully closed can indicate wear in the 46907000 joystick cartridge
- - Stiff or inconsistent lever movement can indicate cartridge wear or damaged seals
Before You Order Check
- - Confirm that the mixer code is 23656000 and not the separate 23654000 waste-equipped version
- - Check that the existing tap has the smooth body without a pop-up waste linkage
- - Compare the required spare code and component shape with the part removed from the mixer
