Grohe 23446000 Eurocube Single-Lever Basin Mixer M-Size Tap Spare Parts

SUMMARY

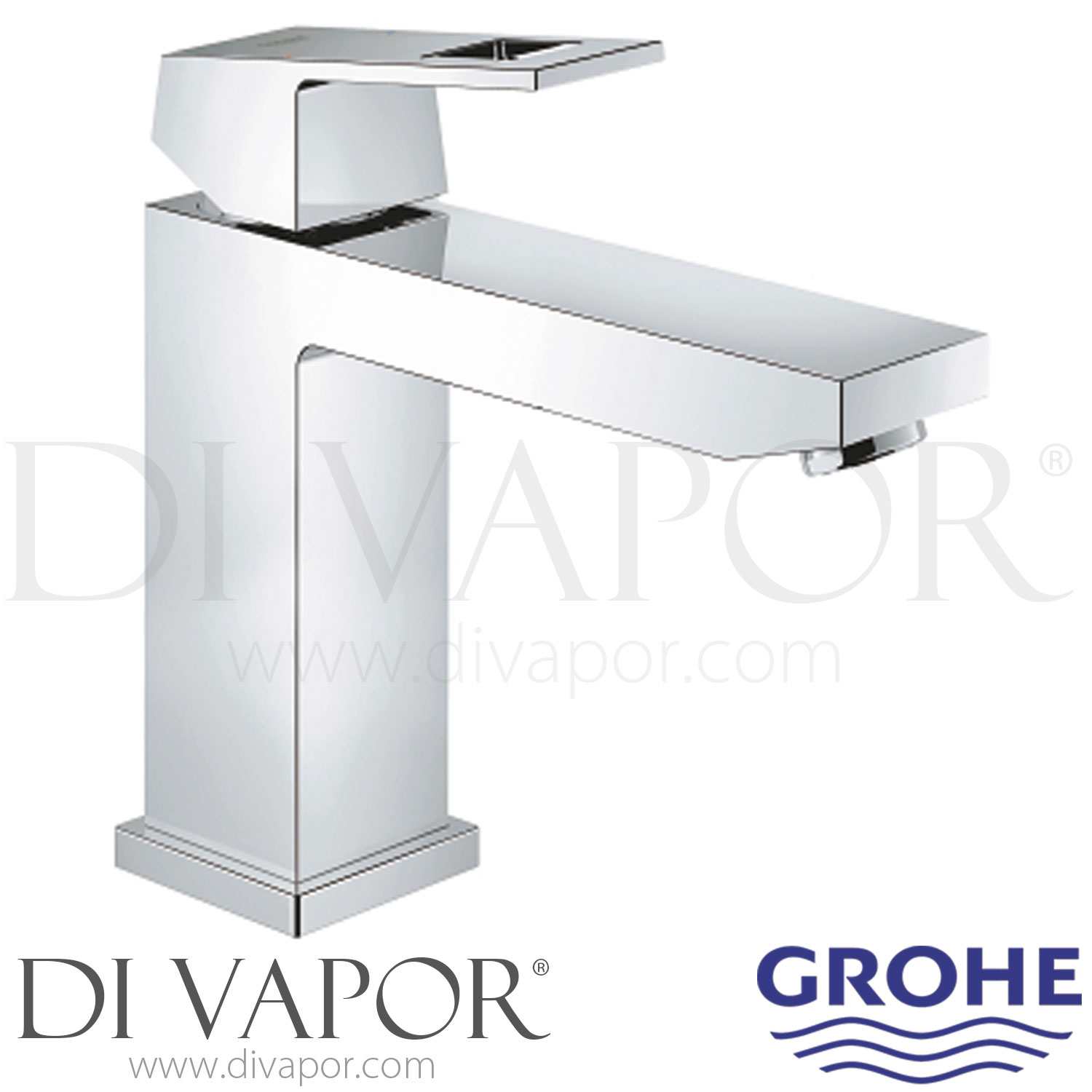

Tap Spares for Grohe 23446000 Eurocube Single-Lever Basin Mixer M-Size

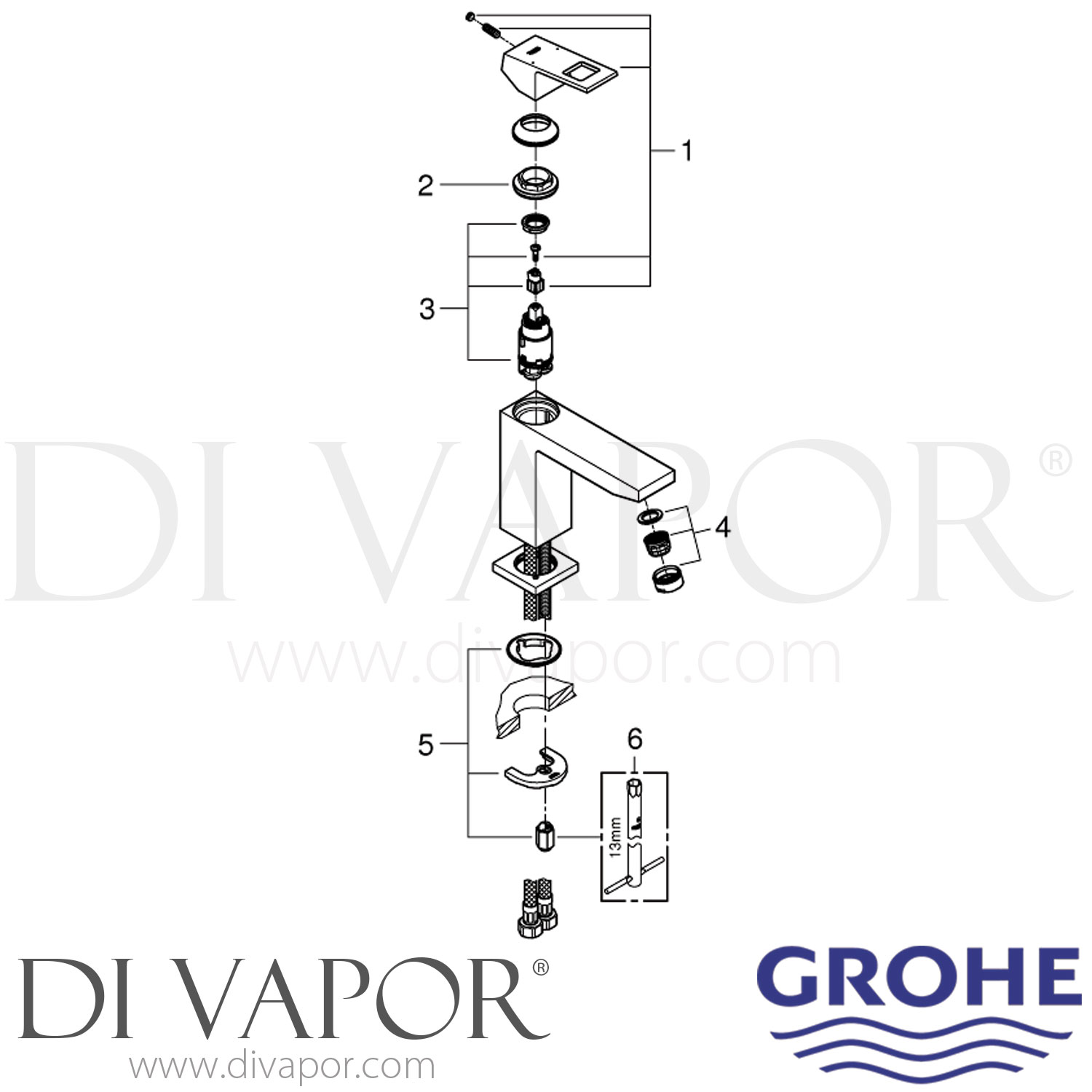

The GROHE 23446000 Eurocube is a chrome single-lever basin mixer in M-Size, designed for monobloc deck mounting on a basin. This page brings together the service components identified for the exact mixer, helping customers select the correct Grohe spare parts by model and article code.

The mixer uses a 28 mm GROHE SilkMove ceramic cartridge to regulate the water flow and temperature through the single metal lever. A worn cartridge may cause stiff operation, inconsistent temperature control, or continued dripping from the outlet after the lever has been moved to the off position.

Technical Details

- - Brand: GROHE

- - Range: Eurocube

- - Category: Basin mixer

- - Product code: 23446000

- - Configuration: Single-lever monobloc basin mixer, M-Size, with a smooth body

- - Waste control: No integrated pop-up waste operating rod

- - Finish: Chrome

- - Cartridge: 28 mm GROHE SilkMove ceramic cartridge with temperature limiter

- - Installation: Deck-mounted, with GROHE FastFixation Plus

- - Overall height: 201 mm

- - Outlet height: 109 mm

- - Spout projection: 133 mm

- - Base footprint: 52 mm square

- - Required tap hole: 34 mm diameter

- - Maximum deck thickness: 30 mm

- - Flexible hose length: 375 mm

- - Supply connection: G3/8

- - Maximum flow rate: 5 litres per minute at 3 bar

- - Recommended operating pressure: 1 to 5 bar

- - Hot-water supply: Left

- - Cold-water supply: Right

- - EAN: 4005176998720

Before You Order

Check the tap body or original documentation for product code 23446000, and confirm that the mixer has the smooth-body configuration before ordering. GROHE 23445000 is a separate Eurocube M-Size version with a pop-up waste, and the two product codes should not be treated as the same model. Similar GROHE cartridges can differ in diameter, sealing arrangement, and operating geometry, so the existing component should also be compared carefully.
