Grohe 23445000 Eurocube Single-Lever Basin Mixer M-Size Tap Spare Parts

SUMMARY

Tap Spares for Spares for Grohe 23445000 Eurocube Single-Lever Basin Mixer M-Size

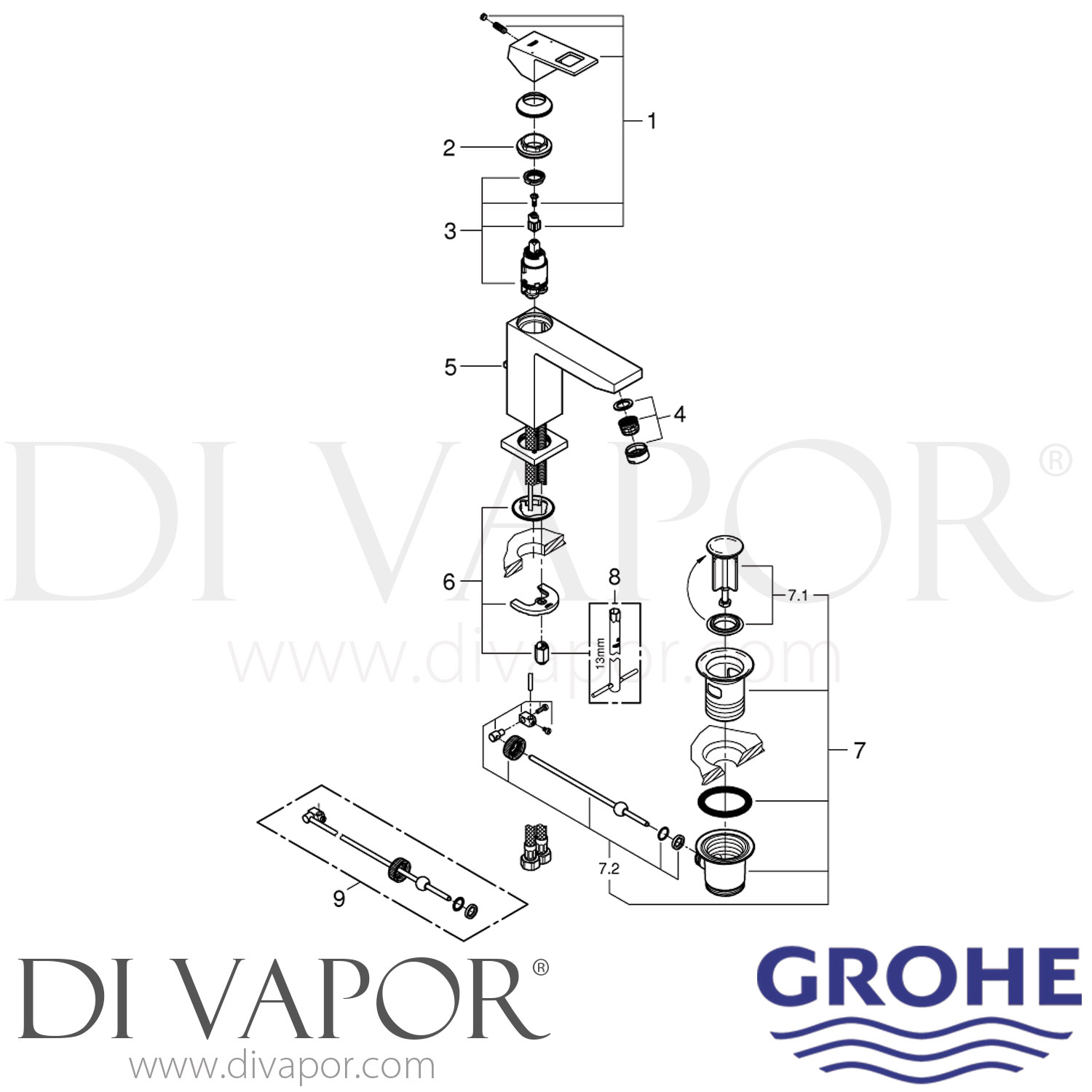

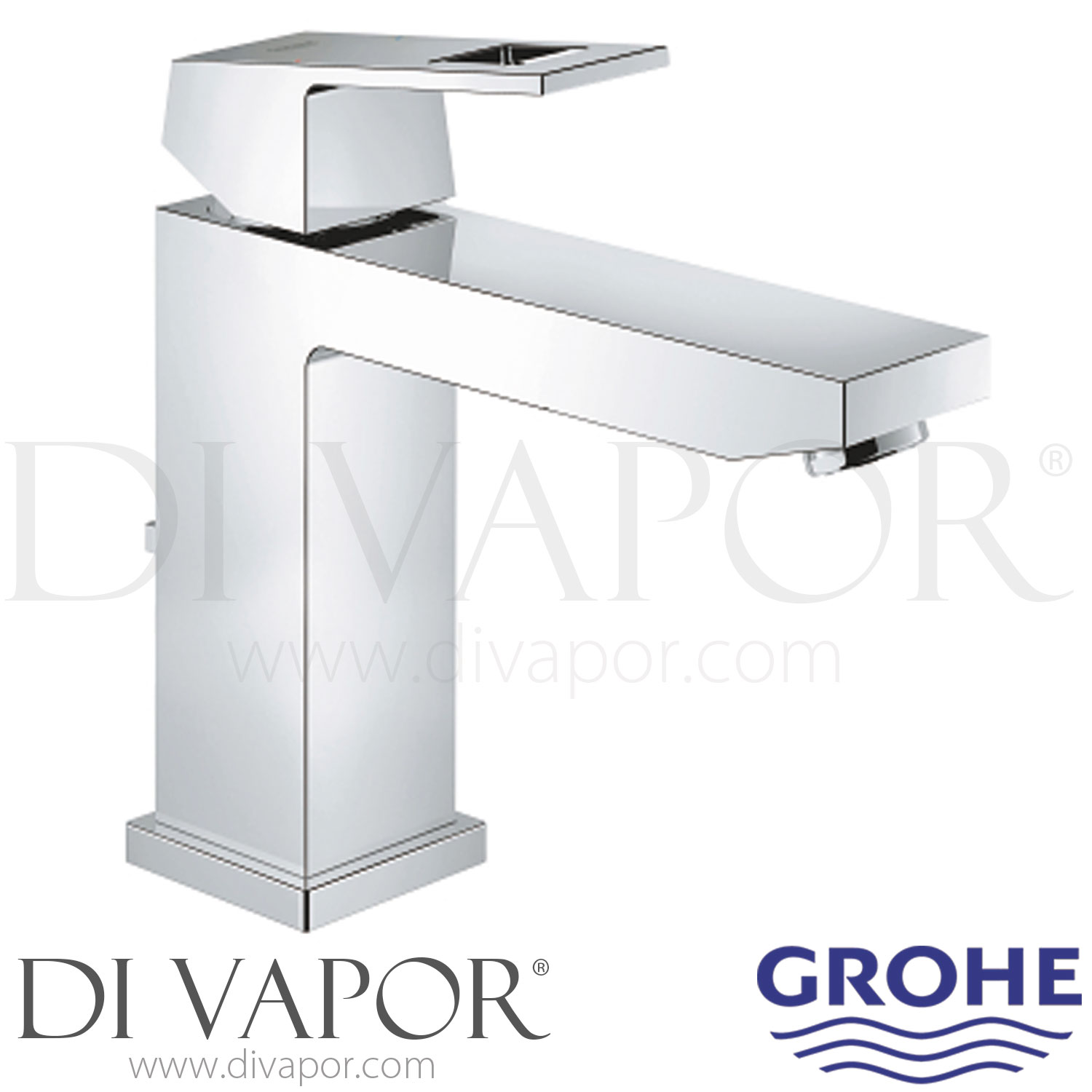

The GROHE 23445000 Eurocube is a chrome, deck-mounted, single-lever basin mixer in the M-Size format, supplied with a 1 1/4 inch pop-up waste set. This page brings together the Grohe spare parts identified for servicing the tap, including the ceramic mixing cartridge and the mechanical rods used to operate the basin waste.

The 28 mm ceramic cartridge controls both water flow and mixed-water temperature. A common sign of cartridge wear is water continuing to drip from the spout after the lever has been moved to the off position. The horizontal rods connect the mixer control to the pop-up waste linkage, allowing the waste plug to open and close.

Technical Details

- - Brand: GROHE

- - Range: Eurocube

- - Category: Basin mixer

- - Product code: 23445000

- - Configuration: Deck-mounted, monobloc, single-lever basin mixer

- - Size: M-Size

- - Finish: Chrome

- - Cartridge: 28 mm ceramic cartridge, with an integrated temperature limiter

- - Maximum flow rate: 5 litres per minute at 3 bar

- - Outlet: GROHE SpeedClean mousseur

- - Installation system: FastFixation Plus

- - Overall height: 201 mm

- - Spout outlet height: 109 mm

- - Spout projection: 133 mm

- - Base footprint: 52 x 52 mm

- - Required tap hole: 34 mm diameter

- - Maximum mounting-surface thickness: 30 mm

- - Flexible hose connections: G3/8

- - Waste set: 1 1/4 inch pop-up waste

- - EAN: 4005176998706

Before You Order

- - Confirm that the basin mixer is marked or documented as GROHE Eurocube 23445000

- - Compare the installed cartridge and waste-linkage arrangement with the parts shown before ordering

- - Check whether the standard 07052000 rod or the longer 350mm 07341000 rod is required

- - Isolate both water supplies before removing or servicing the cartridge
