Grohe 2339000E Eurocube Single-Lever Basin Mixer S-Size Tap Spare Parts

SUMMARY

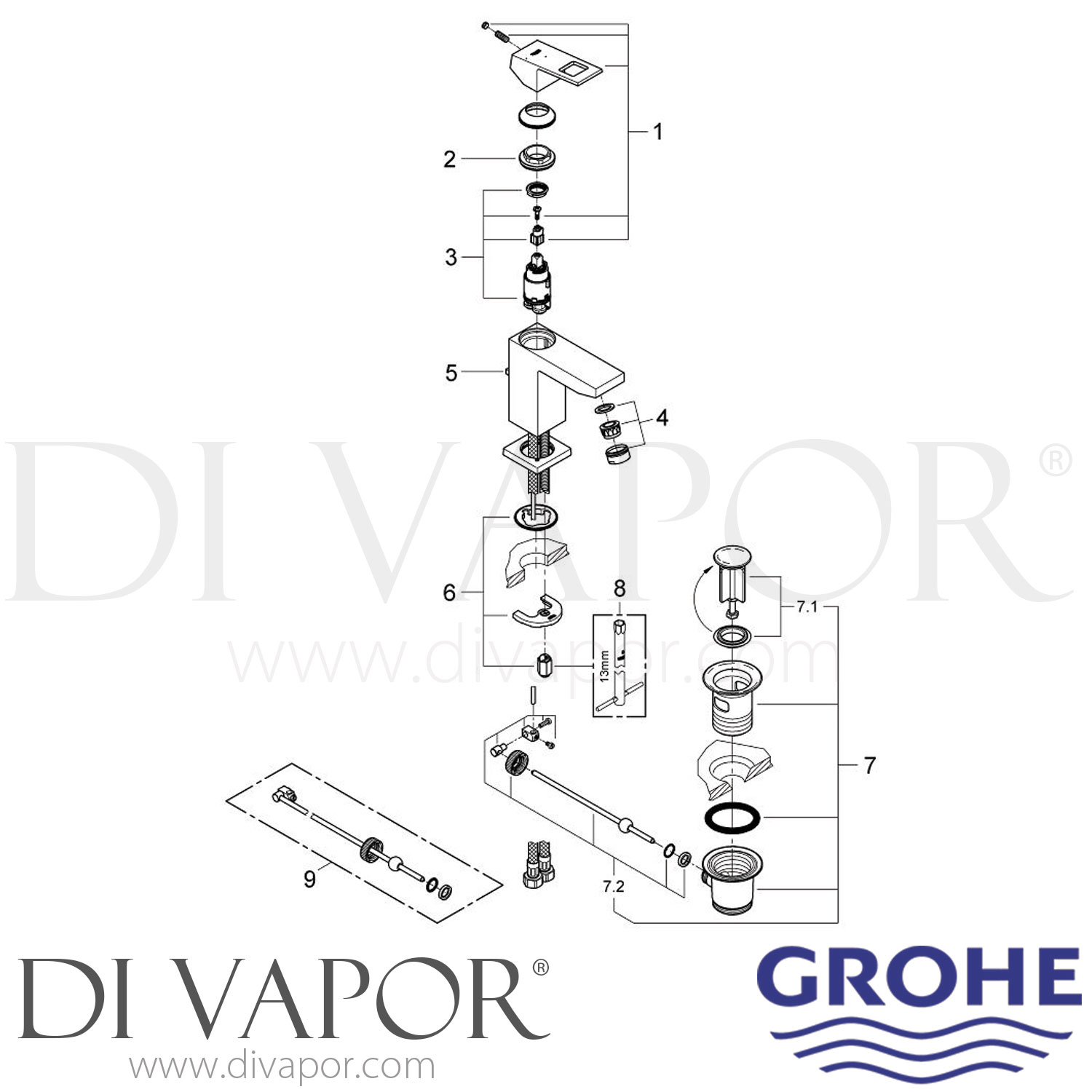

Tap Spares for Grohe 2339000E Eurocube Single-Lever Basin Mixer S-Size

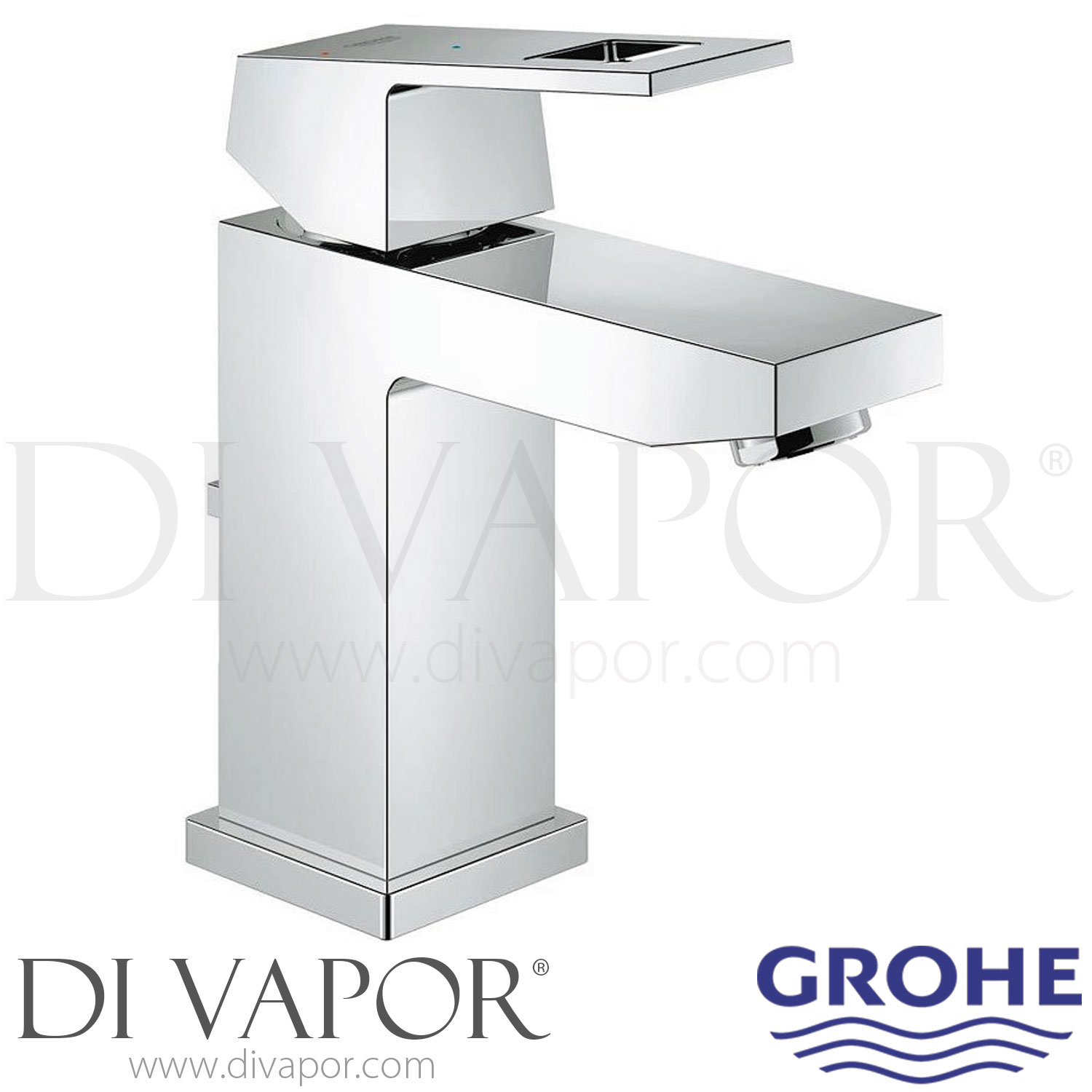

The Grohe 2339000E Eurocube S-Size single lever basin mixer is a chrome one-hole basin tap with OpenCold energy-saving operation, a 28 mm ceramic cartridge, and a pull-rod-operated pop-up waste. These Grohe spare parts are identified for this exact mixer, allowing the cartridge and waste operating components to be selected by their individual part numbers.

The mixer supplies cold water when the lever is in its central position, reducing unnecessary hot-water use. The internal ceramic cartridge controls water flow and temperature, while the pop-up rod and horizontal linkage operate the basin waste.

Technical Details

- - Brand: Grohe

- - Range: Eurocube

- - Category: Basin mixer

- - Product code: 2339000E

- - Size: S-Size

- - Finish: Chrome

- - Installation: One-hole deck-mounted installation

- - Cartridge: Grohe SilkMove 28 mm ceramic cartridge

- - Control: OpenCold cold-start operation with an integrated temperature limiter

- - Maximum flow rate: 5 litres per minute at 3 bar

- - Spout projection: 98 mm

- - Outlet height: 94 mm

- - Overall height: 157 mm with the lever lowered, and up to 186 mm with the lever raised

- - Tap hole: 34 mm diameter

- - Maximum mounting-surface thickness: 30 mm

- - Flexible connection size: G3/8

- - Waste: Pop-up waste set with a G1 1/4 connection

- - EAN: 4005176938436

Common Service Symptoms

- - A persistent drip from the spout after the lever has been closed can indicate wear or damage within the 46580000 ceramic cartridge.

- - A waste plug that does not open or close fully can indicate a bent, loose, misaligned, or incorrectly adjusted pop-up rod or horizontal waste rod.

Before You Order

Check that the mixer is marked with product code 2339000E, and compare the required spare part number with the component being removed. Do not identify the cartridge by diameter alone. When replacing the waste linkage, confirm whether the standard 07052000 rod or the optional longer 07341000 350 mm rod is required.
