Grohe 2338010E Concetto Single-Lever Basin Mixer (1/2 Inch) S-Size Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 2338010E Concetto Single-Lever Basin Mixer 1/2 Inch S-Size Tap

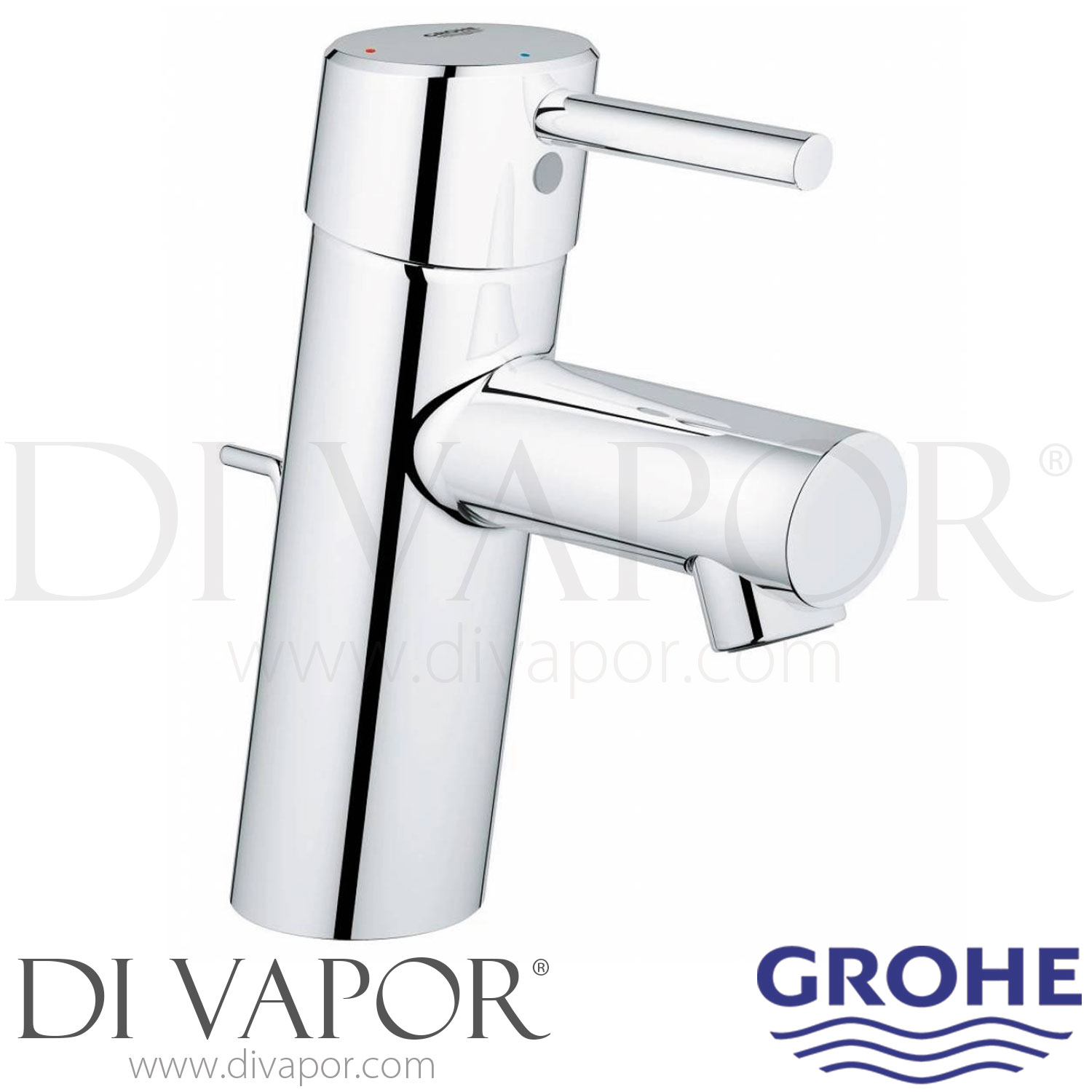

Grohe 2338010E is a Concetto S-Size single-lever basin mixer designed for single-hole installation and supplied with a pop-up waste control. The single lever regulates water flow and temperature, while the energy-saving cartridge arrangement supplies cold water when the lever is in its central position.

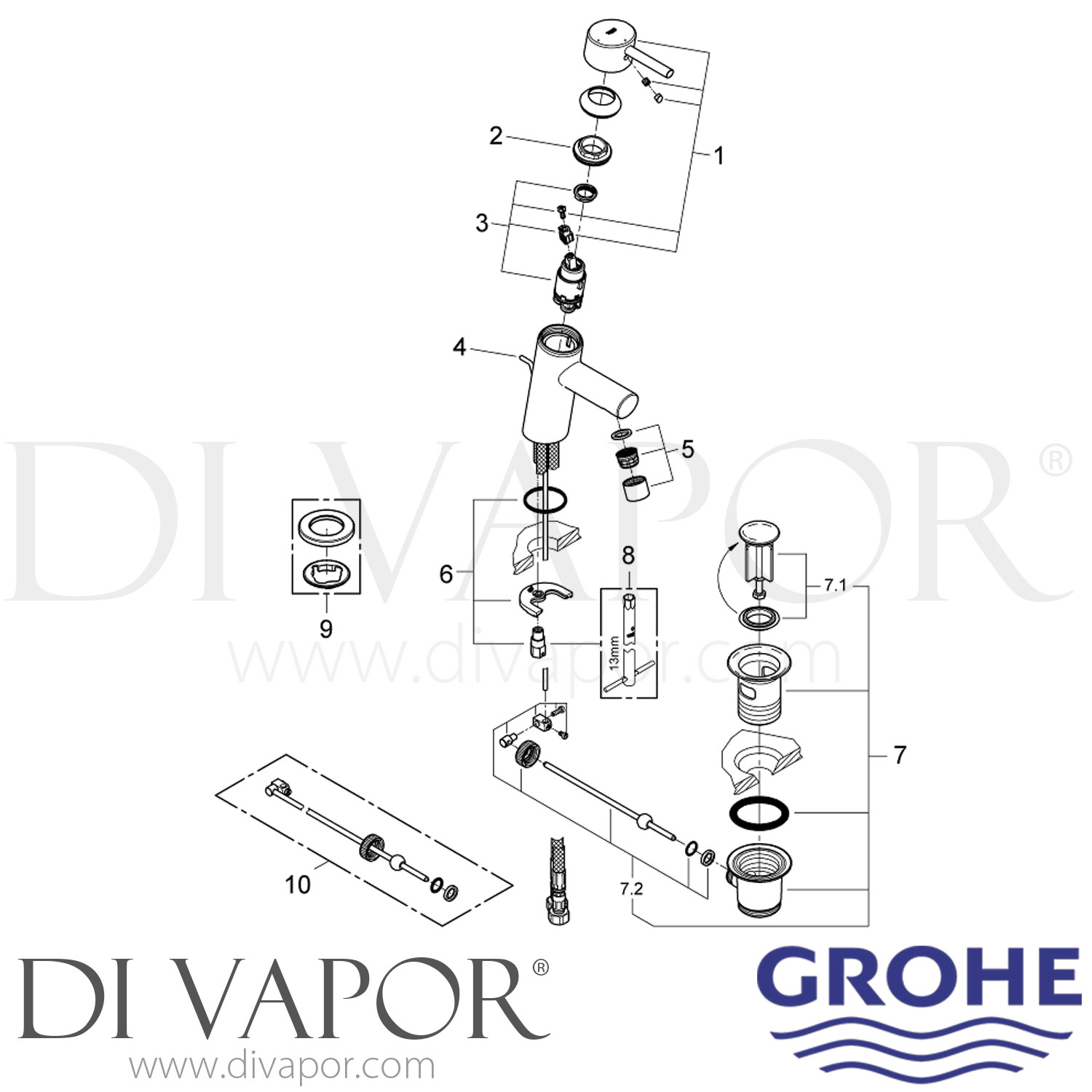

These Grohe spares cover key service points within the 2338010E basin mixer, including the ceramic cartridge, mixer mounting and pop-up waste linkage.

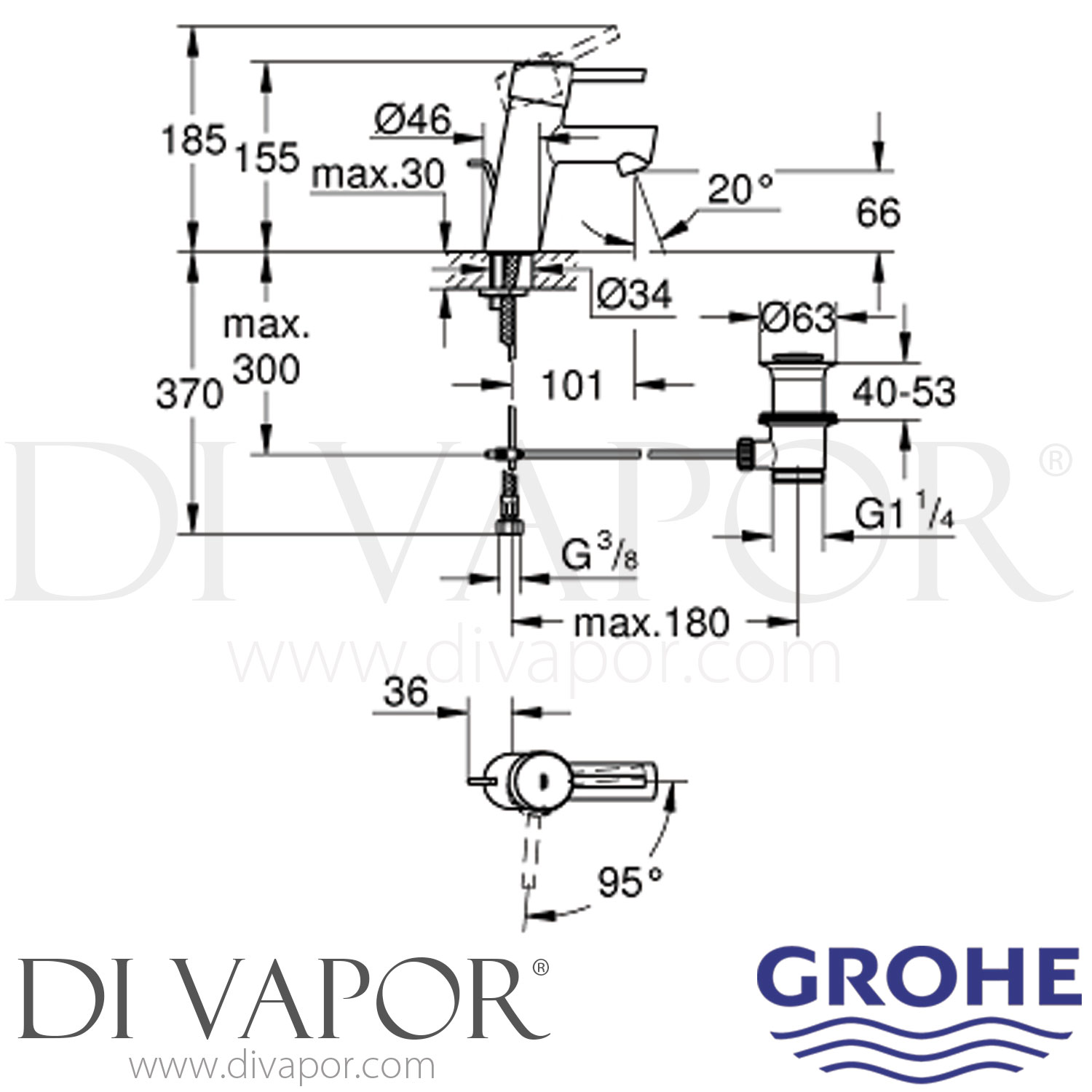

Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Basin mixer |
| Product code | 2338010E |
| Size | S-Size |
| Installation | Single-hole basin mixer |
| Control | Single metal lever |
| Cartridge | 28 mm ceramic cartridge with energy-saving cold-start function |
| Temperature limiter | Included |
| Finish | Chrome |
| Maximum flow rate | 5 l/min at 3 bar |
| Minimum recommended pressure | 1.0 bar |
| Flexible supply connections | G 3/8 |
| Pop-up waste set | 1 1/4 inch |
| Installation system | Grohe FastFixation |
Before you order check
Confirm that the mixer code is 2338010E and compare the required service position with the existing part before ordering. In particular, check the waste-linkage arrangement and rod length when choosing between the 07052000 and 07341000 horizontal rods.
GROHE 46580000 28 mm SilkMove Ceramic Cartridge with Temperature Limiter for Single-Lever MixersThis is a genuine Grohe 46580000 cartridge replacement used to replace faulty cartridges in the aforementioned valves.FAQ - - Question: My tap is constantly dripping. If I replace th...
GROHE 46249000 Shank Mounting Kit for Basin Bidet Bath and Kitchen MixersGROHE 46249000 is a shank mounting kit used to secure selected deck-mounted GROHE taps and mixers to the basin, bidet, bath or worktop mounting surface. GROHE spare-parts documentation also describes 4624900...
Grohe 07341000 350mm Horizontal Rod for PUW WasteThe Grohe 07341000 is a 350mm horizontal operating rod used in PUW waste control systems. It connects the tap mechanism to the basin waste linkage.FunctionThe rod enables mechanical operation of the waste plug. Incorrect length or ...
