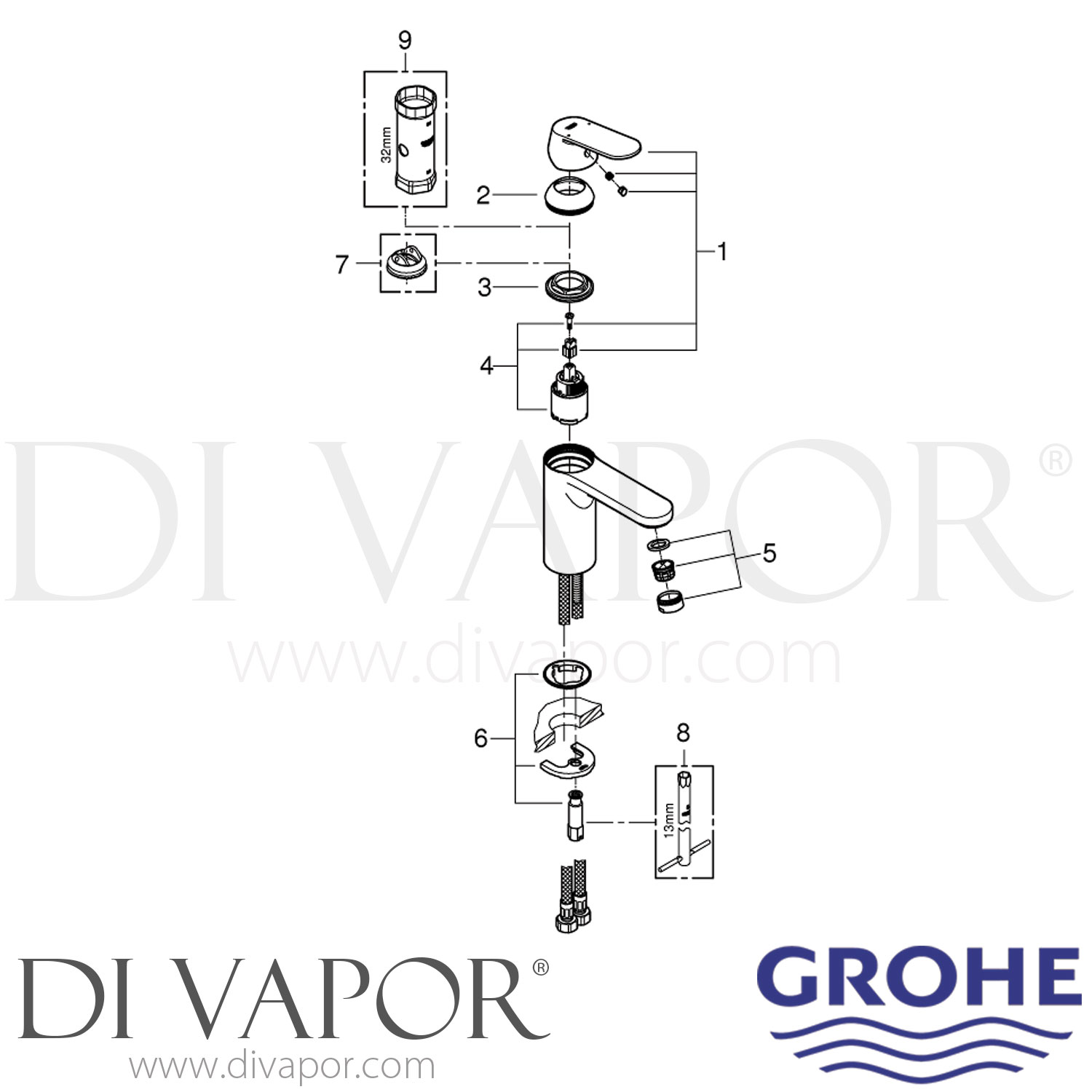

Grohe 23327KW0 Eurosmart Cosmopolitan Single-Lever Basin Mixer Supermatt Black M-Size Tap Spare Parts

SUMMARY

Grohe Spares for 23327KW0 Eurosmart Cosmopolitan Single-Lever Basin Mixer 1/2 Inch M-Size Supermatt Black

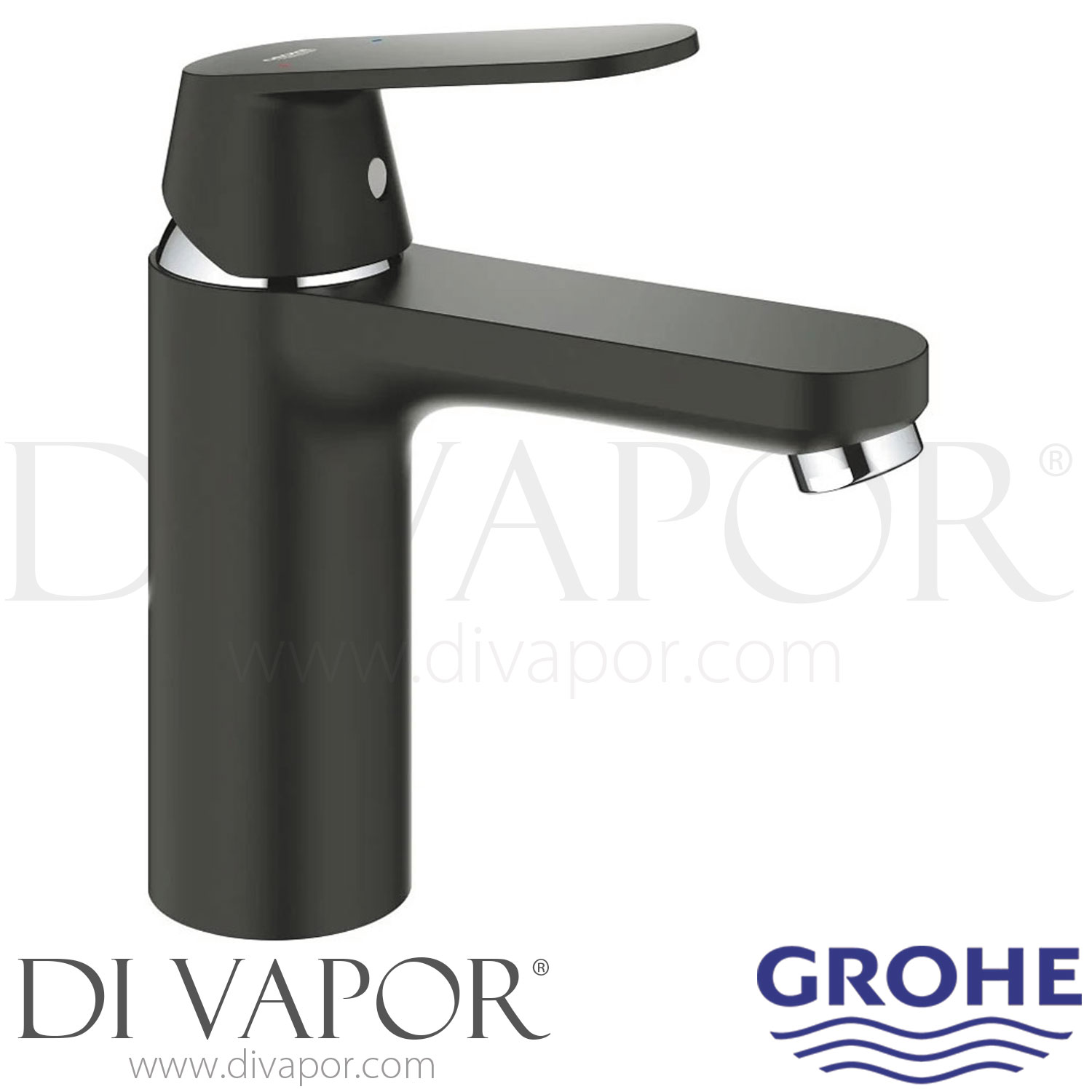

Spare-parts information for the Grohe 23327KW0 Eurosmart Cosmopolitan single-lever basin mixer in Supermatt Black. This M-Size basin mixer is designed for single-hole installation and uses a single metal lever to control both water flow and mixed-water temperature.

The mixer uses a Grohe SilkMove 35 mm ceramic cartridge with an adjustable flow-rate limiter. It has a smooth-body configuration, flexible connection hoses and the Grohe FastFixation installation system.

Technical Details

- - Range: Eurosmart Cosmopolitan

- - Category: Basin mixer

- - Brand: Grohe

- - Product code: 23327KW0

- - EAN: 4005176565205

- - Size: M-Size

- - Finish: Supermatt Black

- - Installation: Single-hole

- - Control: Single metal lever

- - Cartridge: Grohe SilkMove 35 mm ceramic cartridge

- - Maximum flow rate: 5 l/min at 3 bar

- - Minimum recommended pressure: 1.0 bar

- - Connection hoses: G 3/8 flexible connections

- - Overall mixer height: 206 mm

- - Height to lever/body datum: 168 mm

- - Spout outlet height: 98 mm

- - Spout projection: 123 mm

- - Mixer body diameter: 50 mm

- - Required mounting-hole diameter: 34 mm

- - Maximum mounting-surface thickness: 30 mm

- - Outlet angle: 22 degrees

- - Lever movement: 55 degrees to either side

Before You Order Check

Confirm the tap identification is 23327KW0 and that the mixer is the Eurosmart Cosmopolitan M-Size model in Supermatt Black. Similar Eurosmart Cosmopolitan basin mixers are available in different sizes, finishes and body configurations, so the complete product code should be checked before selecting replacement parts.
