Grohe 23049002 Eurodisc Cosmopolitan Single-Lever Basin Mixer S-Size Tap Spare Parts

SUMMARY

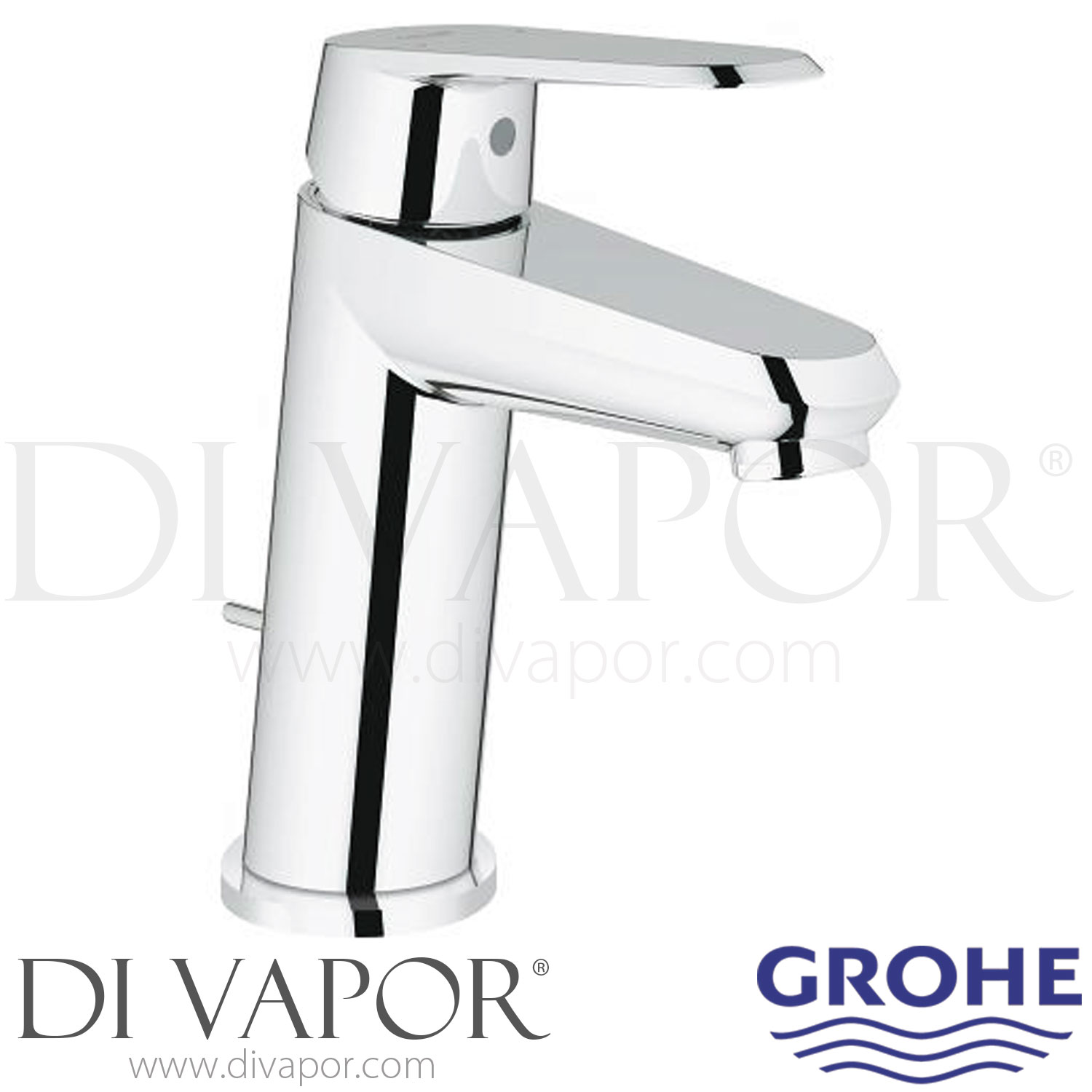

Spares for Grohe 23049002 Eurodisc Cosmopolitan Single-Lever Basin Mixer S-Size Tap

The GROHE 23049002 Eurodisc Cosmopolitan is a chrome single-lever S-Size basin mixer designed for single-hole installation. It uses a 28 mm GROHE SilkMove ceramic cartridge to control water flow and temperature, with a mousseur outlet and integrated pop-up waste operating system.

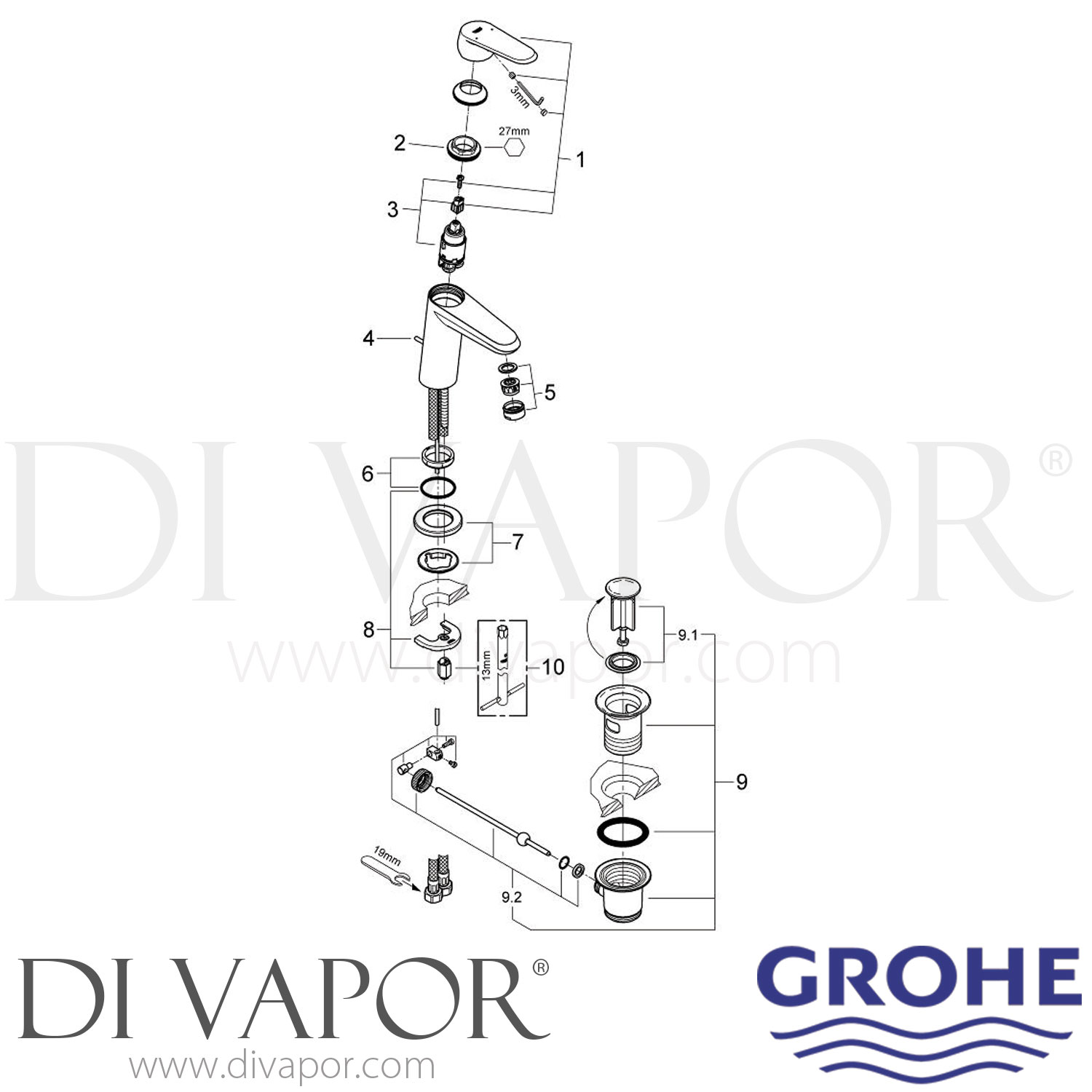

The mixer uses serviceable components for the main control mechanism, outlet and waste linkage. Selecting the correct Grohe spare parts by product code helps ensure the replacement component corresponds with the original 23049002 basin mixer assembly.

Technical Details

- - Brand: GROHE

- - Range: Eurodisc Cosmopolitan

- - Category: Basin mixer

- - Product code: 23049002

- - Size classification: S-Size

- - Nominal size: DN15 / 1/2 inch

- - Installation: Single-hole / monobloc installation

- - Lever: Metal

- - Cartridge: GROHE SilkMove 28 mm ceramic cartridge

- - Cartridge spare code: 46580000

- - Finish: Chrome with GROHE LongLife surface finish

- - Installation system: GROHE FastFixation

- - Outlet: Mousseur

- - Waste: Pop-up waste set 1 1/4 inch

- - Connections: Flexible connection hoses with G3/8 connections

- - Spout projection: 110 mm

- - Spout outlet height: 95 mm

- - Tap mounting hole: 34 mm diameter

- - Base diameter: 55 mm

- - Maximum mounting surface thickness: 30 mm

- - Maximum flow rate: 10.0 l/min at 3 bar

- - EAN: 4005176887536

Before You Order

Check that the basin mixer is marked with product code 23049002 and compare the required component with the existing part before ordering. Cartridge, outlet and waste-linkage components perform different functions and should be selected by the exact spare code rather than by appearance or dimensions alone.
