Grohe 19575001 Concetto Two-Hole Basin Mixer S-Size Tap Spare Parts

SUMMARY

Spares for Spares for Grohe 19575001 Concetto Two-Hole Basin Mixer S-Size Tap

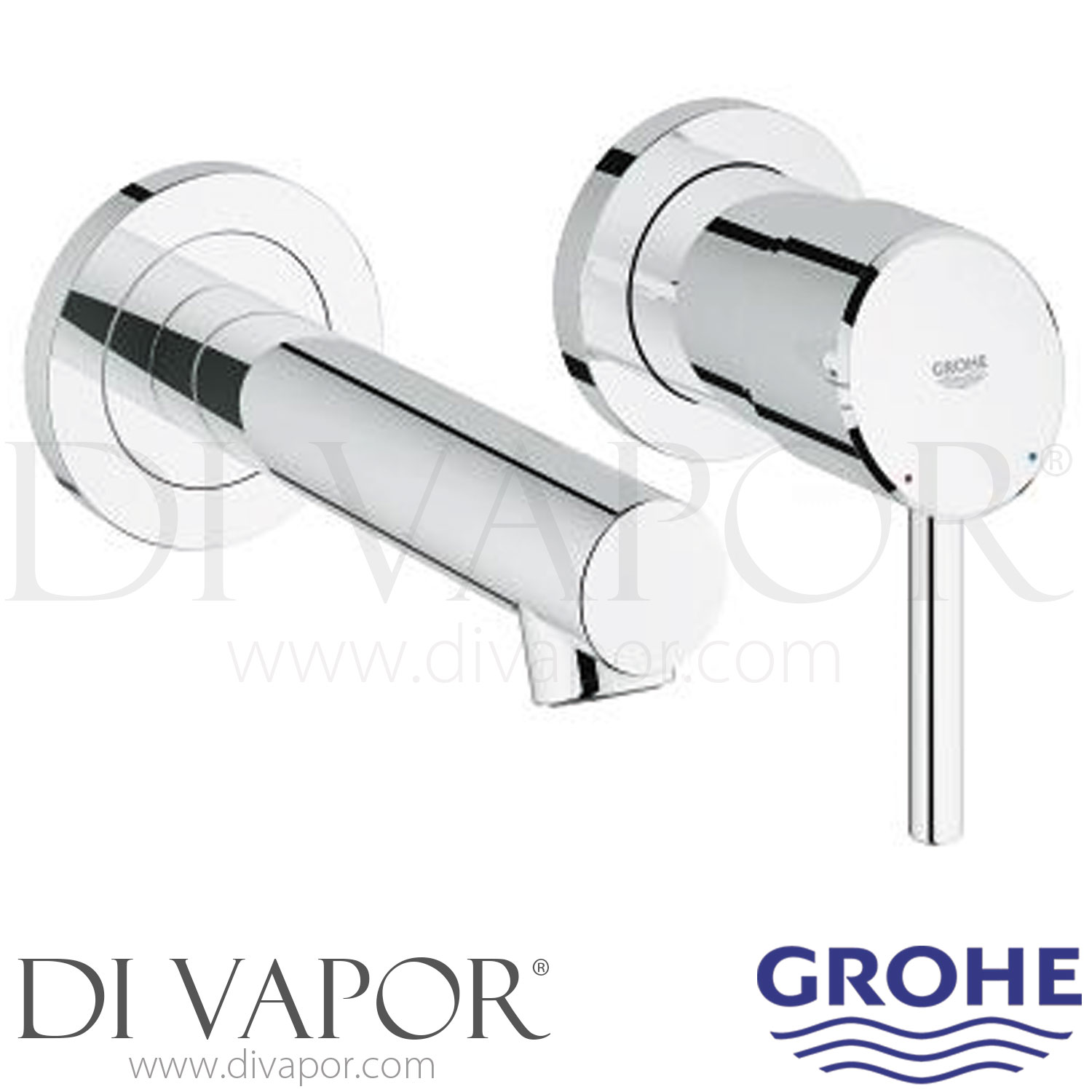

The Grohe 19575001 is a Concetto S-Size, two-hole, wall-mounted single-lever basin mixer trim set, finished in chrome. The installation uses separate wall-mounted controls and a 147 mm projecting spout, with the concealed mixer body installed behind the finished wall.

The mixer uses an adjustable Grohe AquaGuide outlet and has a 110 mm centre distance between the control and spout positions. When servicing this installation, the required Grohe tap spare parts depend on whether the fault is within the visible 19575001 trim set or the concealed mixer body behind the wall.

Technical Details

- - Brand: Grohe

- - Range: Concetto

- - Category: Basin mixer

- - Product code: 19575001

- - Configuration: Two-hole, wall-mounted, single-lever basin mixer

- - Size: S-Size

- - Finish: Chrome

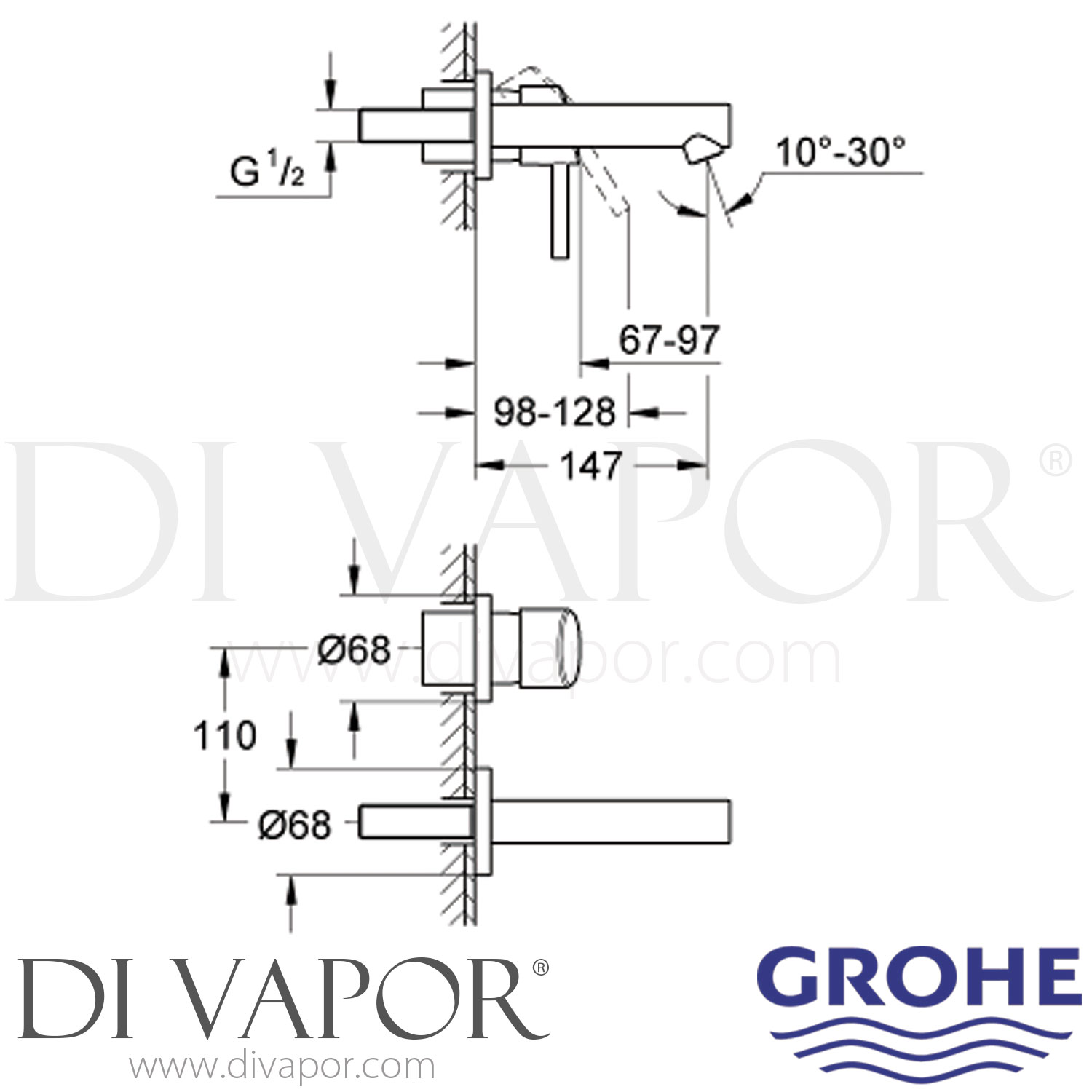

- - Centre distance: 110 mm

- - Spout projection: 147 mm

- - Outlet: Grohe AquaGuide adjustable mousseur

- - Approximate flow rate: 12 litres per minute at 3 bar

- - Concealed mixer body: Grohe 32635000 Single-Lever Mixer 1/2 Inch Concealed Body, ordered separately

- - GROHE documentation also associates the Grohe 23571000 Single-Lever Mixer 1/2 Inch Universal Concealed Body with this model

- - EAN: 4005176888366

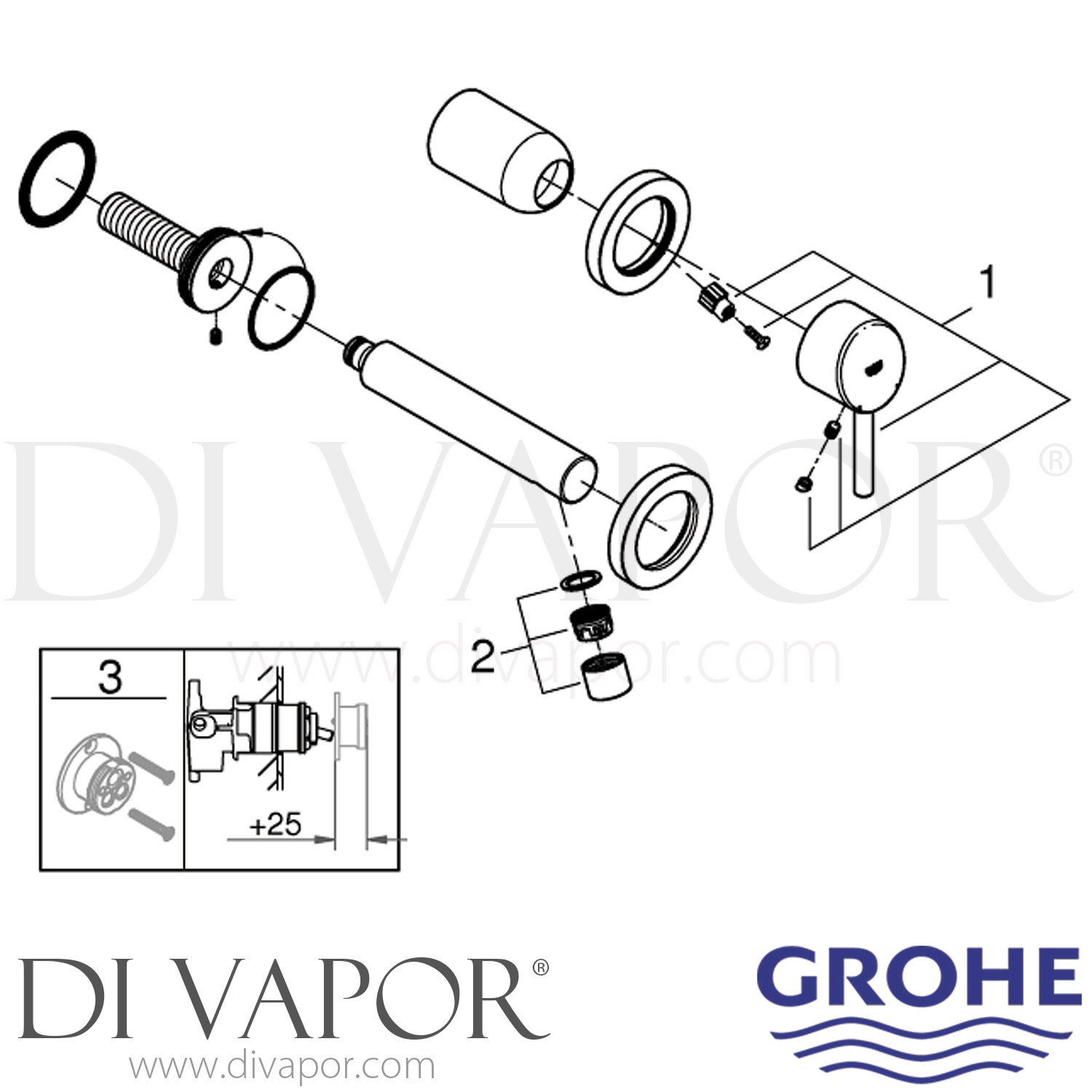

Manufacturer-Listed Service Parts

- - Grohe 46756000 lever

- - Grohe 48072000 mousseur / flow control

- - Grohe 46627000 25 mm extension

Before You Order

Check the mixer code, concealed-body arrangement, and the location of the fault before ordering. The 19575001 is the visible final installation set, while the concealed mixer body is installed separately behind the wall.
