Bristan QST BAS C GEN1 Quest Basin Mixer Tap - 03/07/2014 - Spare Parts
SUMMARY

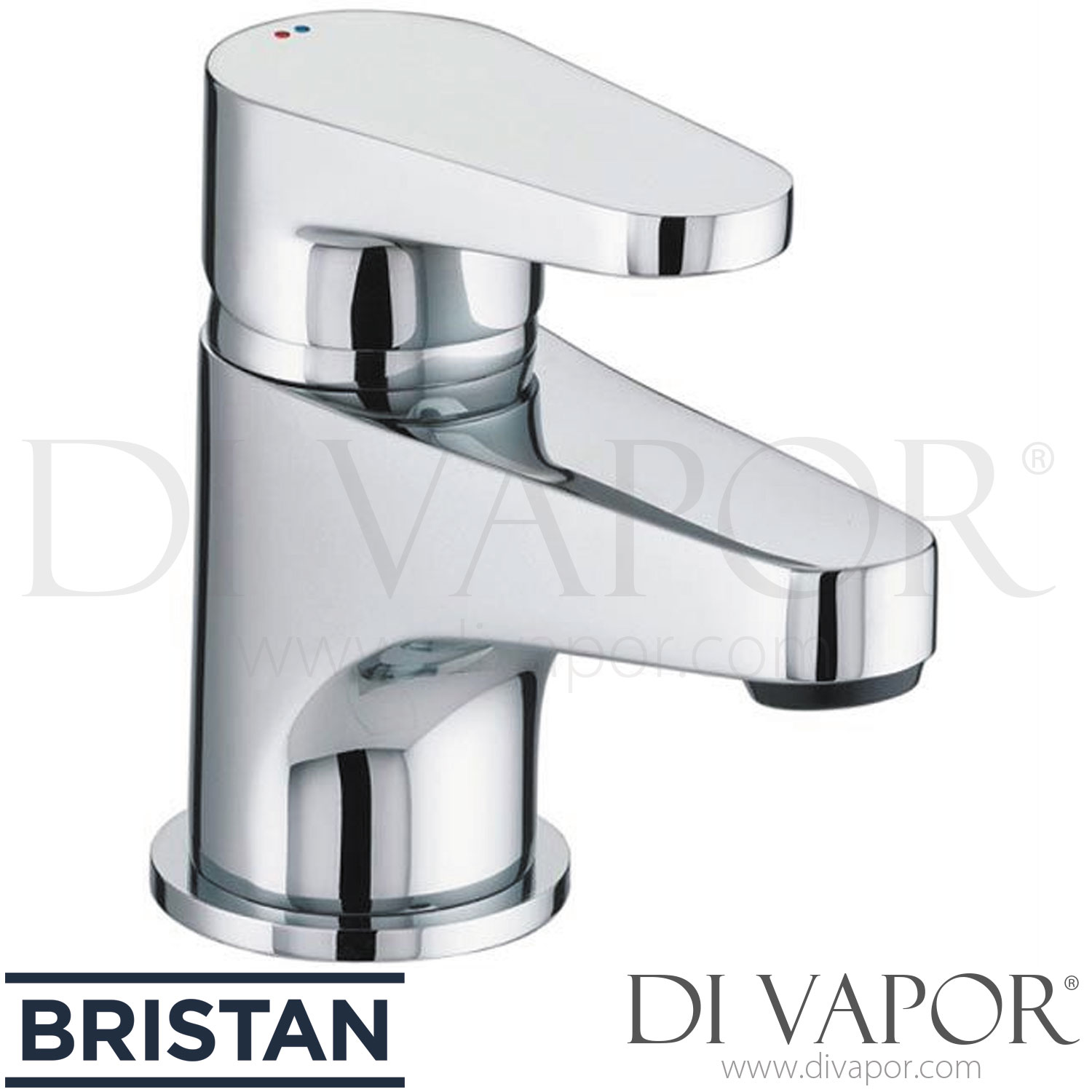

Tap Spares for Bristan QST BAS C Quest Basin Mixer
Revision: 03/07/2014
Bristan Nut 012398 Back Nut 1 1/4 Plastic (U)
Bristan D35P-3X 35mm Cartridge Replacement for Prism, Quest & Macadamia Basin Taps Technical Details: Diameter: 35mm (at blue body) Distance Between Locating Pins: 18mm Centre to Centre Total Length (excluding locating pins): 55.6mm...
Bristan N31-B Cartridge Retaining Nut for DUL BAS C External Diameter of Thread: 36.7mm Nut Diameter: 27.8mm Thickness: 13.1mm...
Bristan N31-K Cartridge Locking Ring Retaining Nut Diameter of Lower Fitting Thread: 36.6mm Total Height (Thickness): 12.9mm Nut Diameter: 29mm...
Bristan N24-H Standard Short Fixing Kit M8 Fine x 70mm Single Threaded Rod
Bristan H90-C Handle for QST BAS C External Diameter at Round Base: 42mm Total Length: 90mm Square Hole of Lever Cartridge: 9.1mm x 9.5mm Product OverviewThe Bristan H90-C Handle for QST BAS C is a genuine Bristan replacement tap handle designed to fit the Bristan Quest b...
Bristan ZTG10-265 Pair of Copper Tails - M10 x 265mm
Bristan N26-H3 is a basin mixer tap base plinth used at the mounting point of selected Bristan basin mixer taps including QST BAS C. It sits at the base of the tap body over the basin hole with the washer and forms part of the mounting assembly before the fixing kit is tightened....
Bristan S90 Handle Shroud Chrome External Diameter: 40.6 (at bottom) and 32mm at the top Internal Diameter: 35.9mm at thread and 31.2mm at top...
Bristan CW9008-03 Clicker Waste Plug Sealing Washer for QST BAS Chrome
