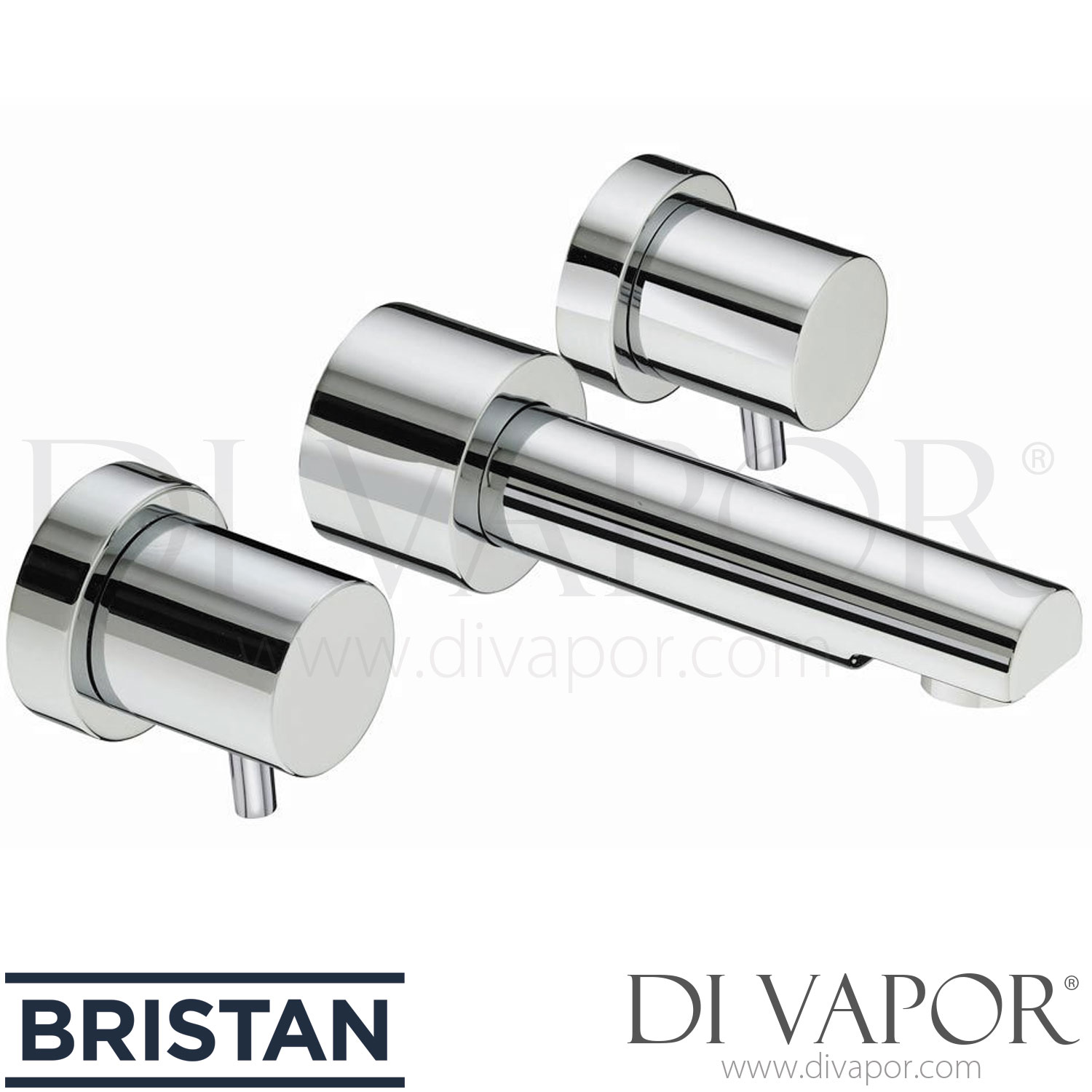

Bristan PM 3HWMBAS C Prism 3 Hole Wall Mounted Basin Mixer Tap - 02/07/2014 - Spare Parts
Part Number: PM 3HWMBAS C GEN1
Product description
SUMMARY
Tap Spares for Bristan PM 3HWMBAS C Prism 3 Hole Wall Mounted Basin Mixer
Revised On: 02/07/2014

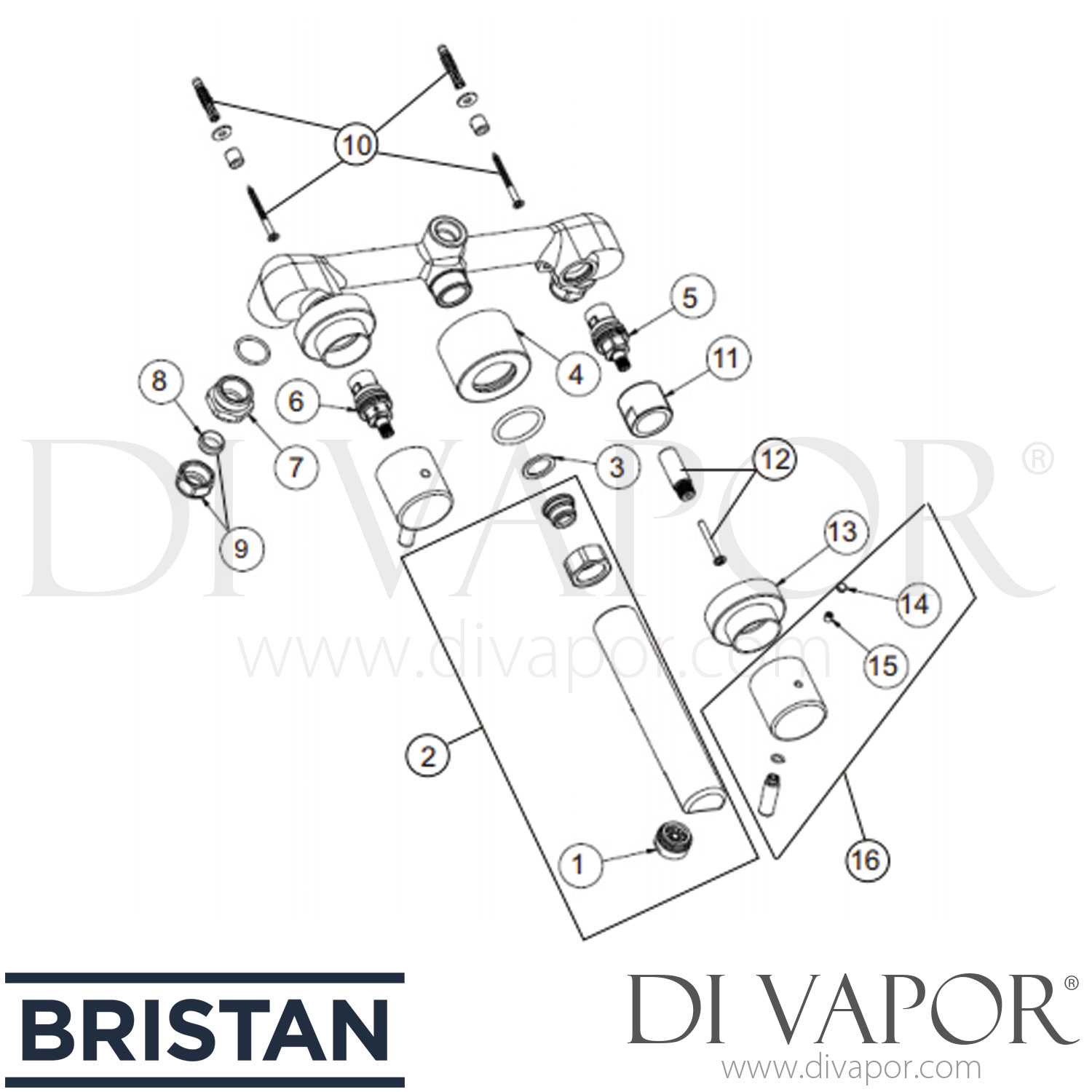

Component Spare Parts for PM 3HWMBAS C GEN1
Bristan Nut 04335CSET-BL Compression Nut & Olive
Bristan Nut 04335CSET-BL Compression Nut & Olive
£7.01
£4.86
Bristan 00621204 Handle Assembly Set (H&C) (MZ)
Bristan 00621204 Handle Assembly Set (H&C) (MZ)
£135.99
£94.43
Bristan SPT 03016CSET-BL Spout QT 3HWMBAS C
Bristan SPT 03016CSET-BL Spout QT 3HWMBAS C
£144.40
£100.28
Bristan 00622855 1/2" On/Off Pair of Tap Valve Cartridges - 24 Splines
Bristan 00622855 1/2" On/Off Pair (Hot and Cold side) of Tap Valve Cartridges. Total Length (including bottom seal): 52.6mm Diameter at Widest Point: 23.8mm (widest thread) Top Spline Diameter: 8mm Top Spline Teeth / Notches: 24 Barrel Diameter: 18.5mm Lower Thread: 1/2"...
£47.59
£27.48
Bristan WSHR 08211 Washer - Fibre 3/4
Bristan WSHR 08211 Washer - Fibre 3/4 Internal Diameter: 14.26mm External Diameter: 23.94mm Thickness: 3.07mm...
£7.01
£4.86
