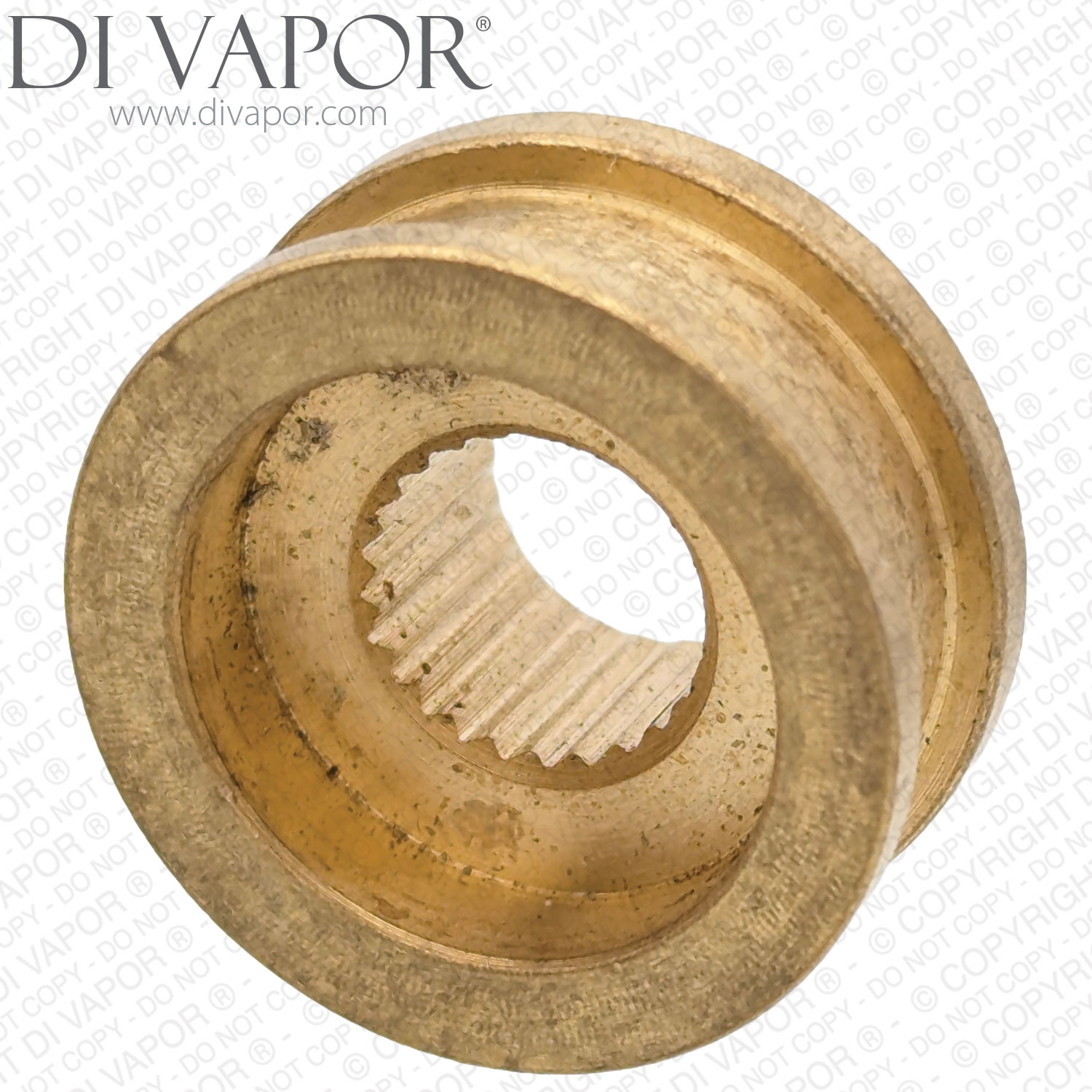

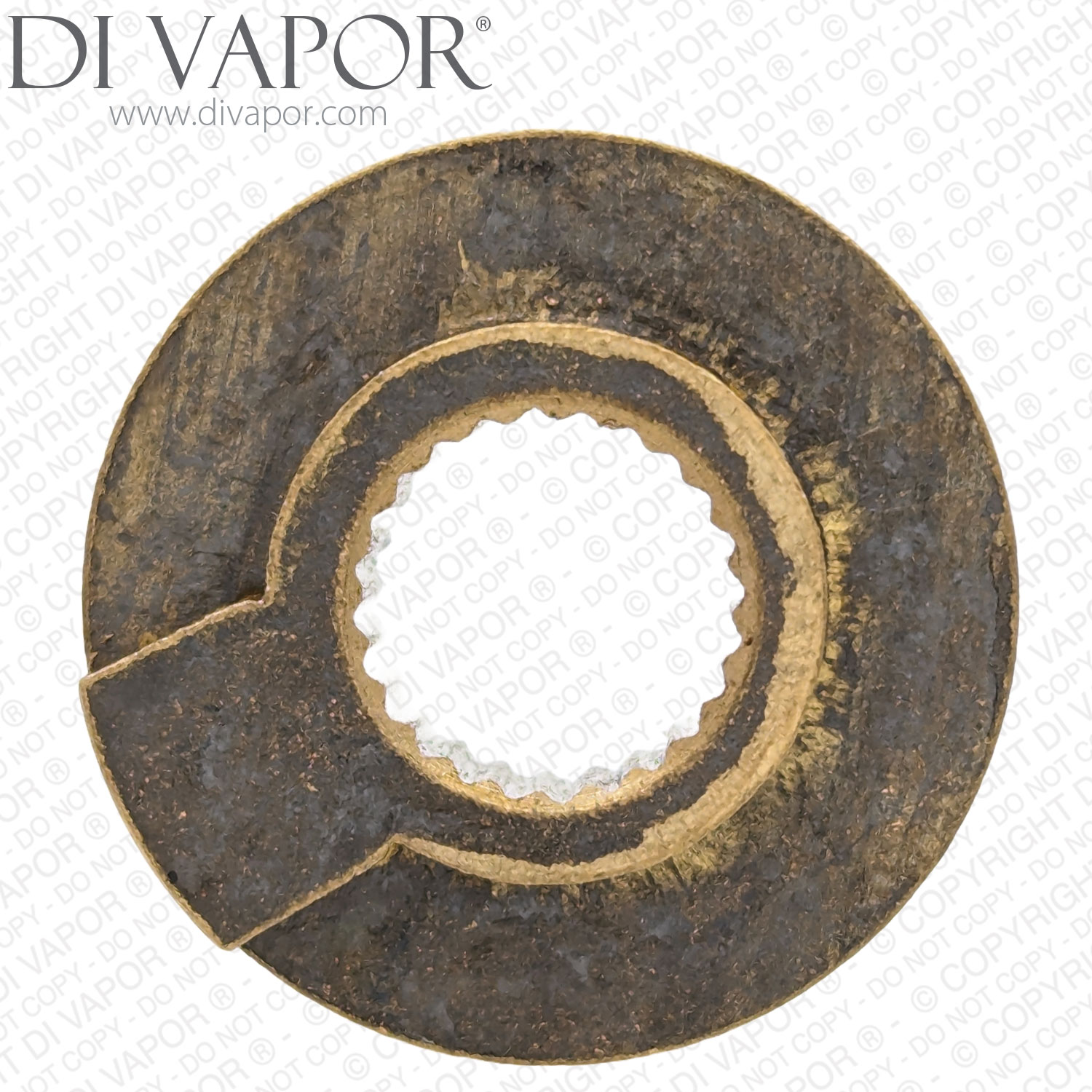

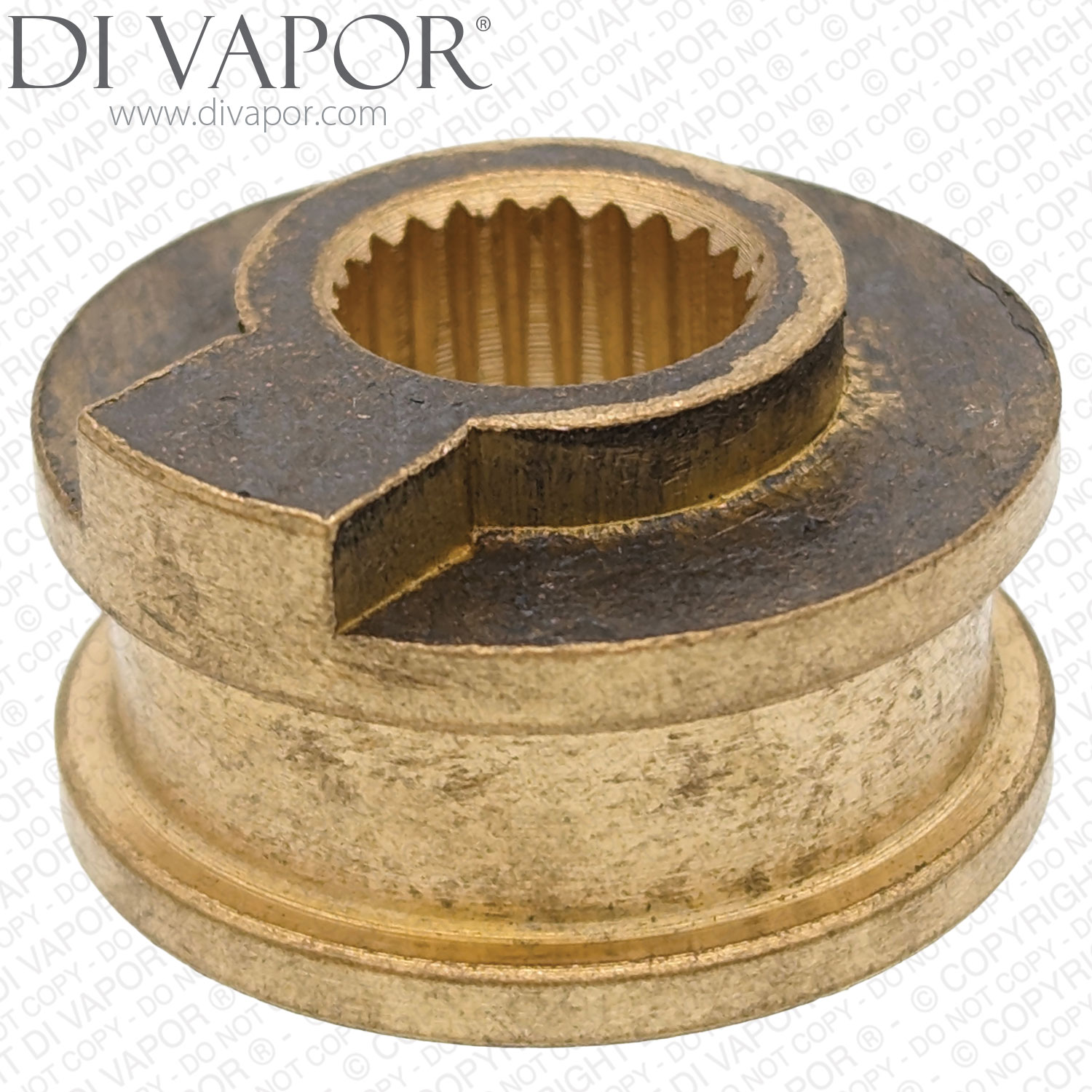

Flow & Diverter Cartridge Adapter for Handle - 24 Spline - GF79240

SUMMARY

Related parts: GF79234, GF79236, GF79237, GF79238, GF79239, GF79235, GF79241, GF79242

The GF79240 is a flow and diverter cartridge adapter for a shower valve handle. It is used as the handle interface adapter on a flow or diverter control, where the valve requires the GF79240 24 spline adapter profile.

Function

This adapter sits between the control handle and the operating spindle, so the handle can correctly engage with the cartridge or valve control. It is a fitting-specific spare, and should be matched against the existing adapter before ordering.

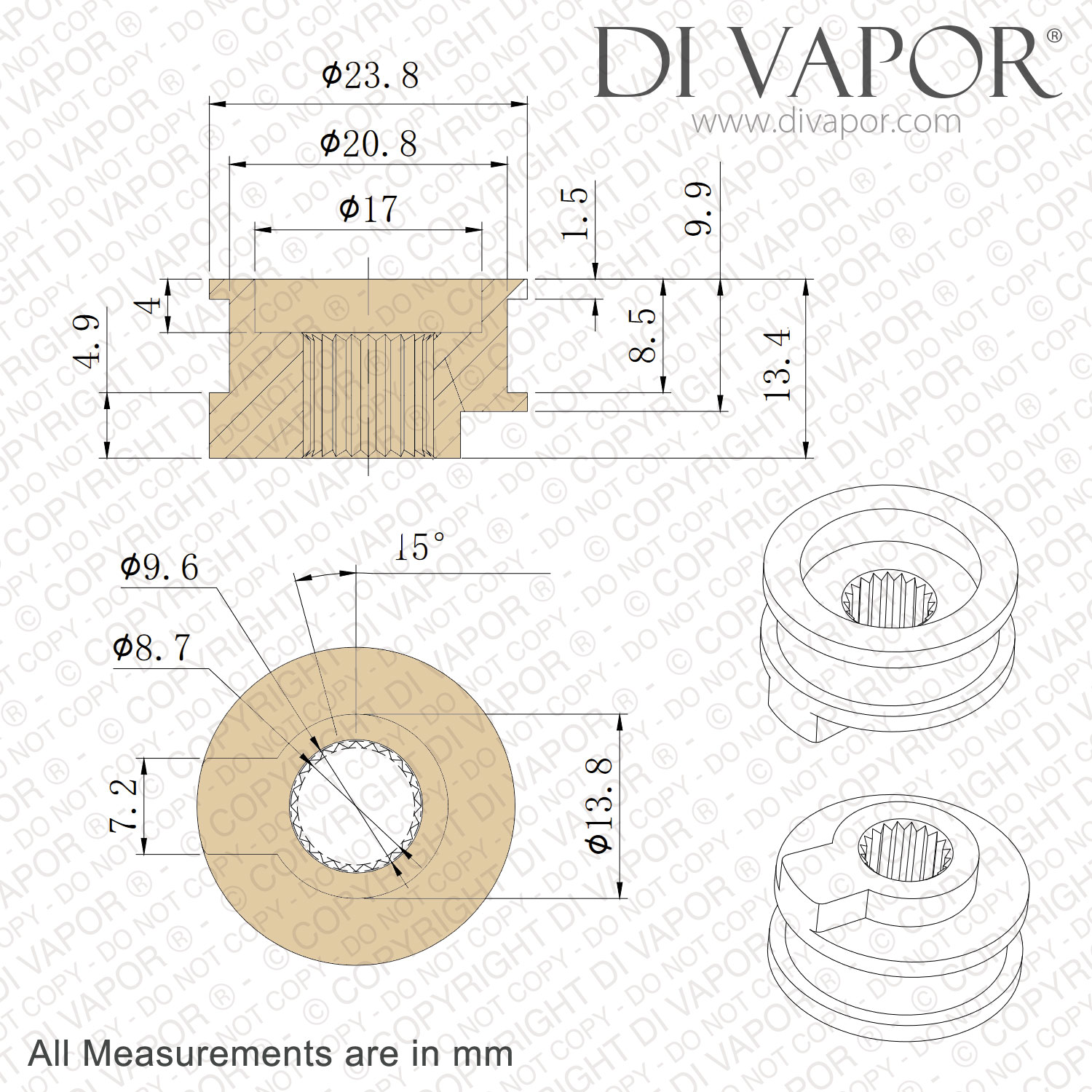

Technical Details

- - Diameter: 23.8mm

- - Height: 13.30mm

- - Spline: 24 spline

- - Spline diameter: 9.6mm

Check the diameter, height, spline count, and spline diameter against the removed part. The similar GF79239 adapter is a 20 spline version, and should not be selected where a 24 spline adapter is required.

Before You Order Check

This listing is for the cartridge adapter only. It is not a complete flow cartridge, diverter cartridge, or control handle. Confirm the spline count and adapter dimensions before ordering, because handle adapters are not universal by size alone.

Related Spares You May Need

- - 42mm Square Shower Valve Control Handle Suitable for Temperature / Flow & Diverter - GF79242

- - 42mm Round Shower Valve Control Handle Suitable for Temperature / Flow & Diverter - GF79241

- - Flow & Diverter Cartridge Adapter for Handle - 20 Spline - GF79239

- - HP LP Non Return Check Valve NRV - GF79238

- - Shower Valve Diverter Shroud - GF79237

- - Shower Valve Flow Shroud - GF79236

- - Shower Valve Temperature Shroud & Gland used with GF79234 Thermostatic Cartridge - GF79235

- - Screw Fit Thermostatic Shower Cartridge - 127mm Length - GF79234
