Bristan Hamptom 100070 Spline Adapter (40 Spline to 20 Spline Converter)
Send a photo of your item and we'll help confirm it.
Summary

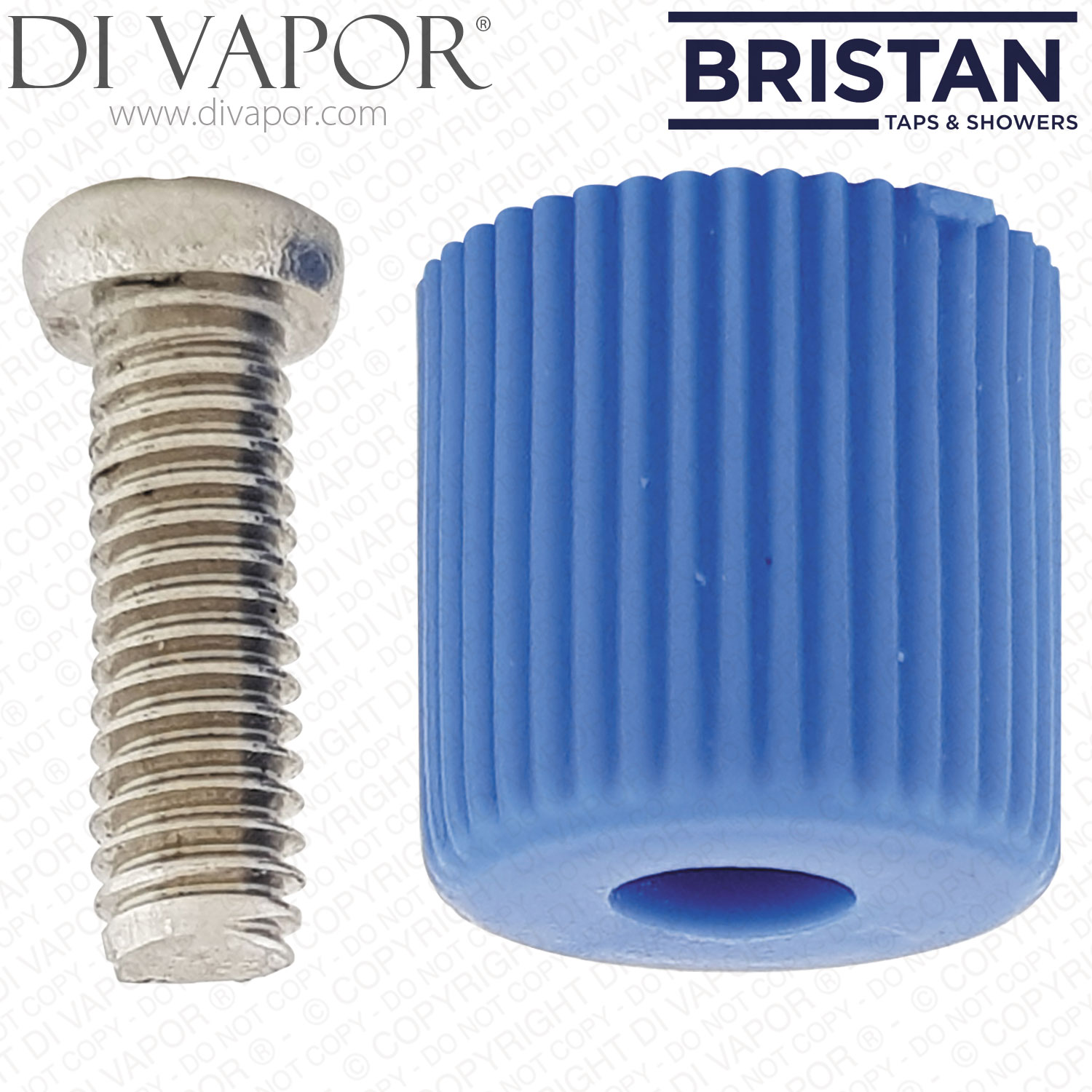

Bristan Hampton 100070 Spline Adapter
Bristan Hampton 100070 spline adapter for converting a 20 spline cartridge spindle connection to a 40 spline handle connection on selected Bristan tap assemblies.
This adapter is used where the cartridge or valve spline has 20 visible teeth and the tap handle requires a larger 40 spline connector. It helps the handle locate correctly on the cartridge spindle so the tap control can be refitted securely.
Technical Details

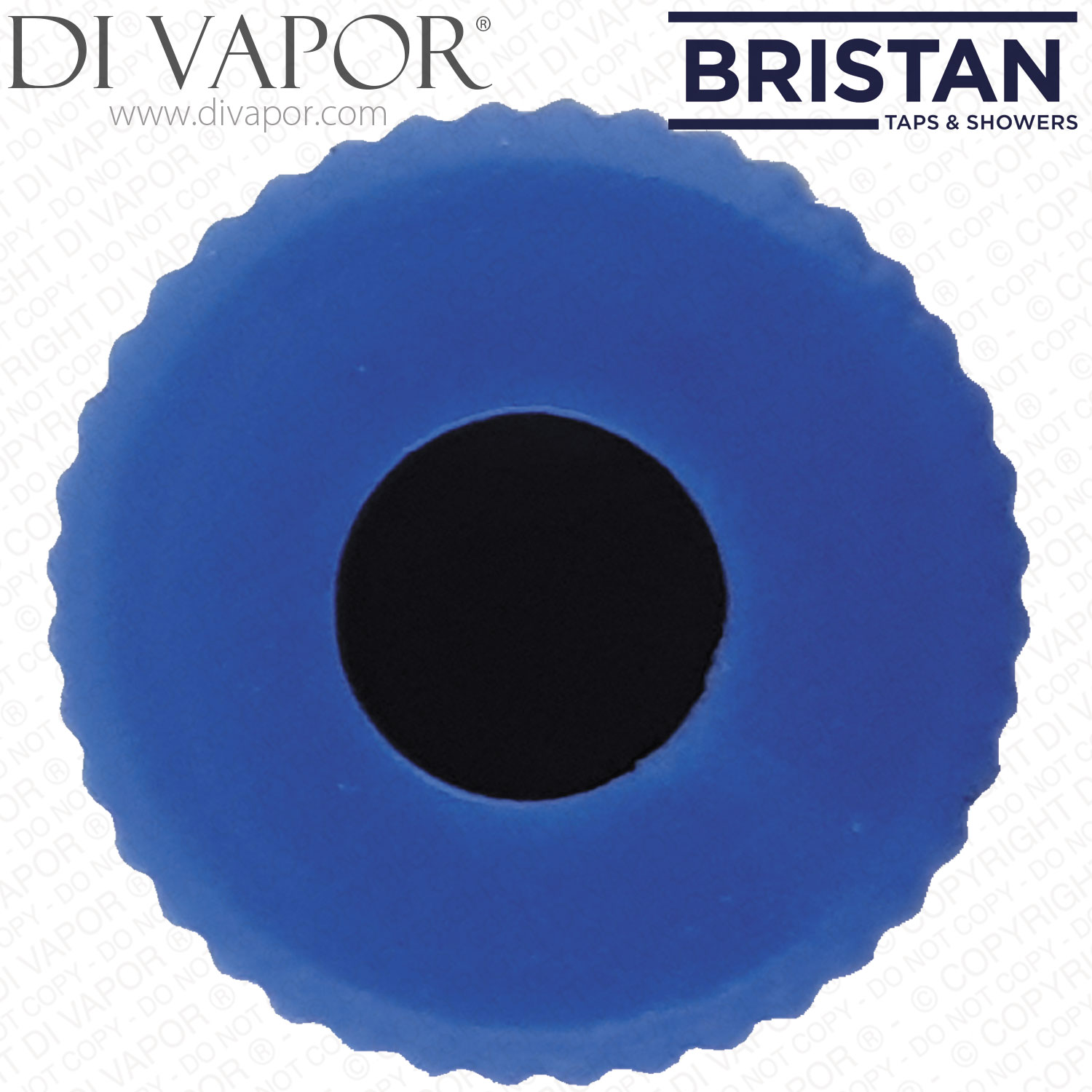

| External spline diameter | 11.5mm |
|---|---|
| External spline teeth / notches visible | 40 |

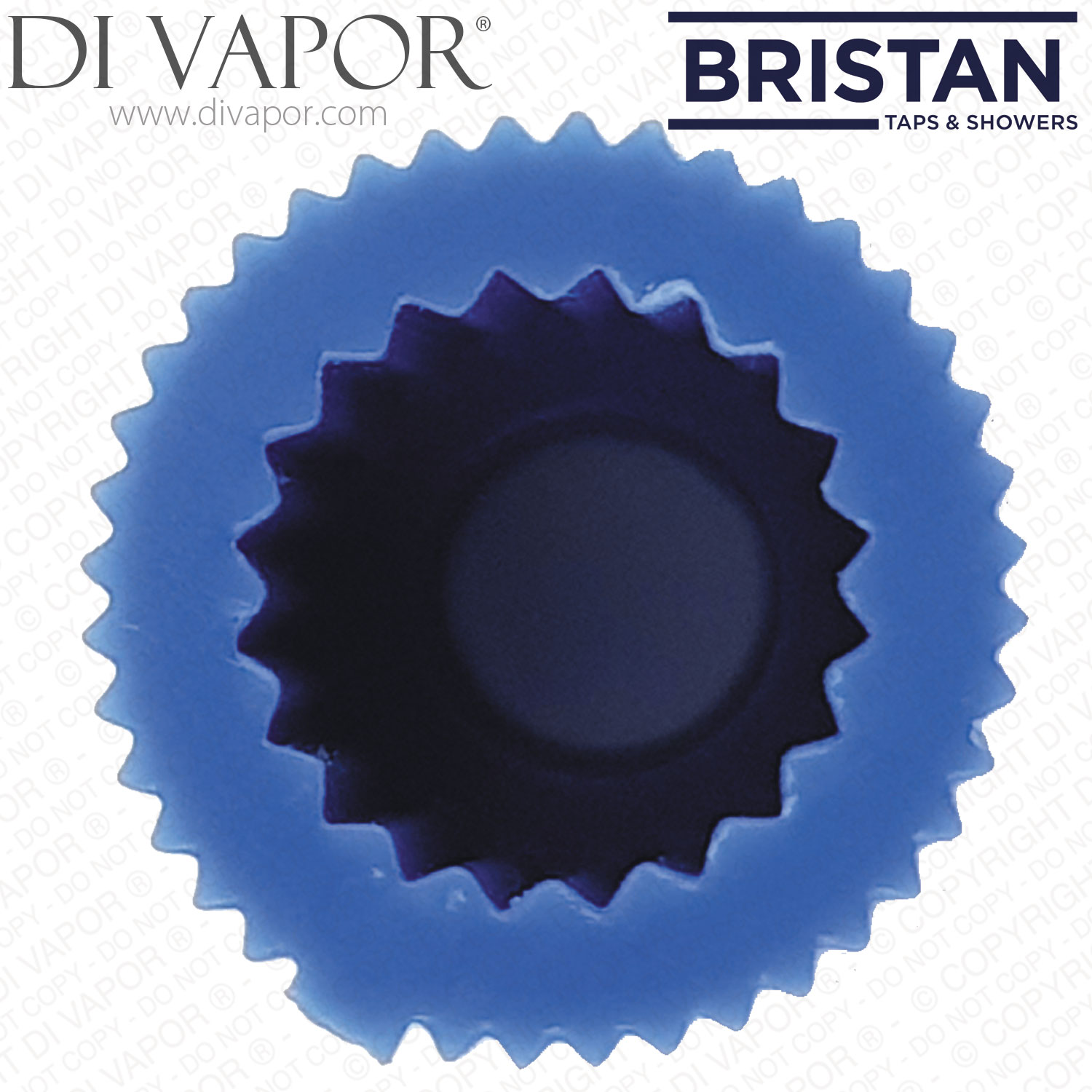

| Internal spline diameter | 7.6mm |
| Internal spline teeth / notches visible | 20 |
| Di Vapor Part Number | B-100070 |
Before Ordering
Check the spline count and spline diameter on both the cartridge spindle and the handle before ordering. This part should not be selected by diameter alone if the original adapter or handle connection differs.
Confirmed Compatible Models
- Bristan QD 1/2 C Quadrato Basin Taps Spare Parts
- Bristan QD 3/4 C Quadrato Bath Taps Spare Parts
- Bristan QD BF C Quadrato Bath Filler Spare Parts
- Bristan QD BSM C Quadrato Bath Shower Mixer Spare Parts
- Bristan HA BF C Hampton Bath Filler - 21/09/2017 - Tap Spare Parts
- Bristan QD BF C GEN1 Quadrato Bath Filler Tap - 10/05/2017 - Spare Parts
- Bristan QD BSM C GEN1 Quadrato Bath Shower Mixer Tap - 22/05/2017 - Spare Parts
